D-Link DCS-5610 Quick Install Manual

Ptz poe internet camera
Hide thumbs

Advertisement

Quick Links

Advertisement

loading

  Related Manuals for D-Link DCS-5610

  Summary of Contents for D-Link DCS-5610

  • Page 2: System Requirements

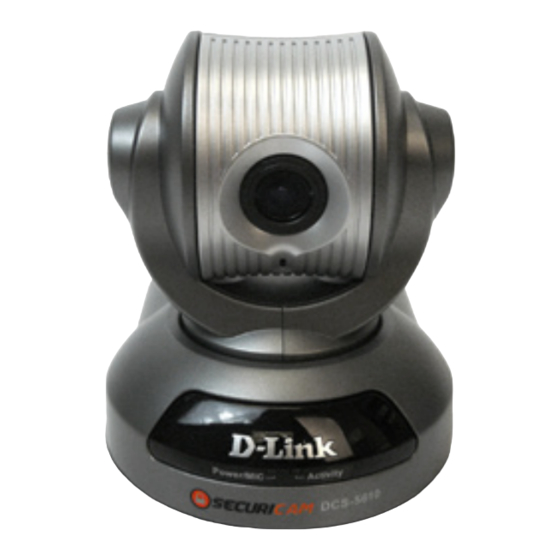

    Package Contents CD-ROM with Manual and DCS-5610 Setup Wizard PTZ PoE Internet Camera 12V 1.25A AC Power Adapter Camera Stand CAT5 Ethernet Cable If any of the above items are missing, please contact your reseller. D-Link DCS-5610 Quick Install Guide...
  • Page 3: Hardware Overview

    I/O Connector The DCS-5610 provides a terminal block with two pairs of connectors situated on the back panel. One pair is for input and the other is for output. The I/O connectors provide the physical interface to send and receive digital signals to and from a variety of external devices.
  • Page 4 30 seconds until the Power LED flashes through its cycle twice. Audio Out Connector The DCS-5610 provides an Audio Out connector to be used for 2-way audio. Speakers (not included) may be connected to the camera to provide audio for 2-way communication.
  • Page 5 Once a connection has been established via Ethernet port, the Activity LED will turn solid green. If traffic is passing to the camera the Activity LED will blink. If no Ethernet connection is detected the Activity LED will not light up. D-Link DCS-5610 Quick Install Guide...
  • Page 6: Hardware Installation

    Connect Using Power-Over-Ethernet Once you connect an Ethernet cable to your PoE switch or adapter, the Power LED on the DCS-5610 will turn green to indicate a proper connection. Attach the External Power Supply Attach the external power supply to the DC power input connector located on the Internet Camera’s back panel (labeled...
  • Page 7: Software Installation

    Software Installation Software Installation Turn on the computer and Insert the D-Link DCS-5610 Autorun CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows XP. The steps and screens are similar for the ® other Windows operating systems.
  • Page 8 Software Installation To start the installation click Install. Note: The installation may take several minutes to complete. Click Install Click Finish to complete the installation. Click Finish D-Link DCS-5610 Quick Install Guide...
  • Page 9 Windows Start menu. The Installation Wizard will appear and show the MAC address of the DCS-5610 and an IP Address (which may or may not be correct depending on what you have your DCS-5610 connected to). If you have a DHCP server on your network, there will be a valid IP Address displayed here.
  • Page 10 Choose UPnP Port Forwarding if your router supports it. Otherwise, choose Manual to enter your port numbers manually. Click Next to continue. Click Next Enable DDNS and setup your DDNS service here. Click Next to continue. Click Next D-Link DCS-5610 Quick Install Guide...
  • Page 11 Configuration If you want to access the DCS-5610 via mobile phone, click Yes and the video resolution will be set to 176x144. Click Apply to apply the settings to the device. Click Apply Double-click the DCS-5610 to launch the camera’s web configuration.
  • Page 12 Enter admin as the default username and leave the password blank. Click OK to continue. This section shows your camera’s live video. You can control your settings using the buttons below. For more information on using the web configuration, please refer to the user manual. D-Link DCS-5610 Quick Install Guide...
  • Page 13 Insert the CD-ROM into the CD-ROM drive. A menu screen will appear as shown below. Click D-ViewCam D-ViewCam provides English, Traditional Chinese and Simplified Chinese language versions. Select a language version and click OK to continue. Click OK D-Link DCS-5610 Quick Install Guide...
  • Page 14 Click Browse if you would like to choose a specific folder for the installation, otherwise click Next to continue. Click Next Click Next to start the installation. Note: The D-ViewCam installation process may take several minutes to complete. Click Next D-Link DCS-5610 Quick Install Guide...
  • Page 15 D-ViewCam Installation Click Finish to complete the installation. D-Link DCS-5610 Quick Install Guide...
  • Page 16 D-Link > D-Link D-ViewCam Use admin as the default user name and leave the password blank. Click the (Check Box) to continue. The D-ViewCam screen will appear as shown below. Click (Next) to begin the Add Camera wizard. D-Link DCS-5610 Quick Install Guide...
  • Page 17 The system will place all found cameras under the default map called My Map. Click Next to continue. If you choose Add Manually, you will need to enter the IP address of the camera. Click Next to continue. D-Link DCS-5610 Quick Install Guide...
  • Page 18 (06:00 PM to 08.00 AM), and ONLY record when motion is detected. Note: Excluding 24/7 Continuous Recording, other schedule recording types can ONLY do recording when motion is detected. Please refer to page 29 in the user manual for more information. D-Link DCS-5610 Quick Install Guide...
  • Page 19 D-ViewCam Installation Select Yes to add another camera, or select No to continue. Note: After you have finished adding your camera(s), click Close to view your camera(s). Your D-ViewCam Installation is Complete! D-Link DCS-5610 Quick Install Guide...
  • Page 20: Technical Support

    Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the packaging. Visit www.dlink.com for more details. D-Link DCS-5610 Quick Install Guide...
