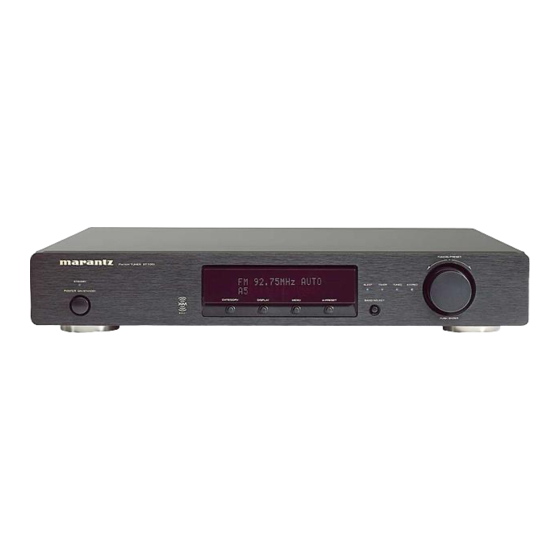

Model ST7001 User Guide
DAB / FM / AM Tuner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST7001 and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz ST7001

Summary of Contents for Marantz ST7001

  • Page 1 Model ST7001 User Guide DAB / FM / AM Tuner...
  • Page 2 DEUTSCH dovuti ad uso continuato a fini professionali. GARANTIE Bei Garantiefragen wenden Sie sich bitte an Ihren Marantz-Händler. SVENSKA HEBEN SIE IHRE QUITTING GUT AUF Die Quittung dient Ihnen als bleibende Unterlage für Ihren wertvollen...
  • Page 3 The ST7001 is in conformity with the EMC directive and low-voltage directive. Français Le ST7001 est conforme à la directive EMC et à la directive sur les basses tensions. Deutsch Das Modell ST7001 entspricht den EMC-Richtlinien und den Richtlinien für Niederspannungsgeräte.
  • Page 4 Español ADVERTENCIAS - No exponga el equipo a la lluvia ni a la humedad. - No extraiga la tapa del equipo. - No introduzca nada en el interior del equipo a través de los orificios de ventilación. - No maneje el cable de alimentación con las manos mojadas. - No cubra la ventilación con objetos como manteles, periódicos, cortinas, etc.

  • Page 5: Table Of Contents

    CONTENTS FEATURES .............................1 BEFORE USE ............................2 PART NAMES AND FUNCTIONS ......................4 FRONT PANEL ..............................4 REAR PANEL ..............................5 REMOTE CONTROL UNIT ..........................6 CONNECTIONS............................8 CONNECTING THE ANTENNA TERMINALS ....................8 CONNECTING THE AMPLIFIER ........................9 OPERATION ............................10 LISTENING TO FM/AM ............................10 LISTENING TO DAB BROADCAST .........................18 SEARCH MODE ...............................20 SORT MODE (SORTING COMPONENTS) .....................22 OTHER OPERATION ...........................24...

  • Page 6: Before Use

    Note For heat dispersal, do not install this equipment in a Your Marantz product has been prepared to comply with the confined space such as a book case or similar unit. household power and safety requirements that exist in your area.
  • Page 7 BEFORE USE 7 Loading batteries 7 Operating range of the remote Before using the supplied remote control unit for the first control unit time, load the batteries in the remote control unit. The • Point the remote control unit at the remote sensor on the batteries provided are used to verify the operations of the main unit as shown on the diagram.

  • Page 8: Part Names And Functions

    PART NAMES AND FUNCTIONS FRONT PANEL For details on the functions of these parts, refer to the pages given in parenthesis. TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 STANDBY STANDBY SECONDARY SECONDARY TUNED TUNED STEREO STEREO POWER POWER ON/STANDBY...

  • Page 9: Rear Panel

    This is used for connection to external data or a connectors on a Marantz equipment, set the switch to computer to access services that will likely be added in EXTERNAL.

  • Page 10: Remote Control Unit

    PART NAMES AND FUNCTIONS REMOTE CONTROL UNIT When the button is held in, the full scan operation (Full band and L-band) is conducted. For details on the functions of these parts, refer to the pages When pressed in the FM mode, receivable FM stations given in parenthesis ( page 10 ~ 27).
  • Page 11 PART NAMES AND FUNCTIONS 7 Remote control code setting The remote control unit contains 3 sets of remote control STANDBY codes, and it can be used to control up to 3 tuners in one location. To control a second or third tuner, select the remote control code as explained below.

  • Page 12: Connections

    AM loop antenna (Supplied) DAB indoor antenna (Supplied) Direction of broadcasting station 75 Ω/ohms COAXIAL cable ANTENNA REMOTE CONTROL MODEL MODEL NO. NO. ST7001 ST7001 ANTENNA ANALOG OUT DIGITAL OUT DAB( 75Ω ) COAX. OPT. Ω ) ) FM(75 FM(75Ω...

  • Page 13: Connecting The Amplifier

    • Do not plug in the mains cord until all connections have been completed. ANTENNA REMOTE CONTROL MODEL NO. ST7001 • When making connections, also refer to the operating ANTENNA ANALOG OUT DIGITAL OUT DAB( 75Ω...

  • Page 14: Operation

    OPERATION 7 Auto tuning (FM/AM) LISTENING TO FM/AM 7 FM Auto preset memory Press the POWER ON/STANDBY switch q or ON button , to turn on the power. Press the POWER ON/STANDBY switch q or ON Watching the display, press the BAND button c to button , to turn on the power.
  • Page 15 Press the MENU button u or ⁄2 to select menu. Press the TUNING/PRESET knob !4 or ENTER button v to set search mode. Either turn the TUNING/PRESET knob !4 or press the TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 CHANNEL/CONTROL button ⁄4 to select “Manual”. STANDBY STANDBY SECONDARY...
  • Page 16 OPERATION 7 Recalling preset stations (FM/AM) 7 RDS (Radio Data System) Press the POWER ON/STANDBY switch q or ON • RDS (works only on the FM band) is a broadcasting button , to turn on the power. service which allows station to send additional information along with the regular radio program signal.

  • Page 17: Rds Search

    OPERATION 7 RDS search TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 Use this function to automatically tune to FM stations that STANDBY STANDBY SECONDARY SECONDARY TUNED TUNED STEREO STEREO POWER POWER ON/STANDBY ON/STANDBY provide RDS service. DIMMER DIMMER DISPLAY...

  • Page 18: Pty Search

    OPERATION 7 PTY search 7 TP search Use this function to find RDS stations broadcasting traffic • Use this function to find RDS stations broadcasting a program (TP). designated program type (PTY). • For a description of each program type, refer to “Program Press the MENU button u or ⁄2 to select menu.
  • Page 19 OPERATION 7 RT (Radio Text) TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 Press the MENU button u or ⁄2 to select menu. STANDBY STANDBY SECONDARY SECONDARY TUNED TUNED STEREO STEREO POWER POWER ON/STANDBY ON/STANDBY Either turn the TUNING/PRESET knob !4 or press the...

  • Page 20: Switching Rds Information Display

    Use the procedure described at “Auto tuning”, “Manual tuning” or “Recalling preset stations” to tune in the desired frequency. Example: To register “MARANTZ” as the FM station name at preset channel “A2”. Press the MENU button u or ⁄2 to select menu.
  • Page 21 OPERATION Press the TUNING/PRESET knob !4 or ENTER button v to display the Station Name setting. TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 STANDBY STANDBY SECONDARY SECONDARY TUNED TUNED STEREO STEREO POWER POWER ON/STANDBY ON/STANDBY DIMMER DIMMER DISPLAY DISPLAY...

  • Page 22: Listening To Dab Broadcast

    OPERATION LISTENING TO DAB BROADCAST 7 About DAB (Digital Audio Broadcasting) • Since the DAB system is broadcasted in digital format, DAB system can supply crystal-clear audio and stable reception even in mobile objects. DAB is a new generation radio which can provide data service and supplementary multi-media services. •...

  • Page 23: Preset Stations

    ( page 8). TUNING You may want to re-tune at a later date if you move the ST7001 or if you want to receive a newly introduced ensemble. BAND MENU Press the AUTO TUNE button i or A-PRESET/A-...

  • Page 24: Search Mode

    OPERATION SEARCH MODE TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 7 Sorted list search mode STANDBY STANDBY SECONDARY SECONDARY TUNED TUNED STEREO STEREO POWER POWER ON/STANDBY ON/STANDBY DIMMER DIMMER DISPLAY DISPLAY MENU MENU AUTO TUNE AUTO TUNE BAND SELECT...

  • Page 25: Tuning Aid

    OPERATION 7 Tuning aid TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 Press the MENU button u or ⁄2 to select menu. STANDBY STANDBY SECONDARY SECONDARY TUNED TUNED STEREO STEREO POWER POWER ON/STANDBY ON/STANDBY Either turn the TUNING/PRESET knob !4 or press the...

  • Page 26: Sort Mode (Sorting Components)

    “Sort Mode (PTY)”. CHANNEL/CONTROL button ⁄4 to select “Sort Mode • You can select any component from the sorted list. (Alphanumeric)”. TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 STANDBY STANDBY SECONDARY SECONDARY...
  • Page 27 The broadcast’s DRC level is set at the broadcast station. The DRC can be changed to achieve the optimum level. r Channel and Frequency : The frequency is displayed. TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 STANDBY STANDBY SECONDARY SECONDARY...

  • Page 28: Other Operation

    The clock displays “SUNDAY” “12H SYSTEM” “0:00AM” at initial. Press and hold down the TIMER button ⁄7 until the “CLOCK 0:00AM” is displayed. TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 Press the TUNING/PRESET knob !4 or ENTER button STANDBY STANDBY SECONDARY...

  • Page 29: Timer Programs

    OTHER OPERATION TIMER PROGRAMS Press the TUNING/PRESET knob !4 or ENTER button v to select timer program number. 7 About the Timer Programs The display indicate “TIMER PROGRAM x SET”. • This unit has three timer programs so that you can turn it on and off automatically at certain times and on certain days of the week.
  • Page 30 • To turn a timer program back on again, repeat this procedure and select “TIMER PROGRAM x ON”. q Either turn the TUNING/PRESET knob !4 or press the CHANNEL/CONTROL button ⁄4 to adjust the TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 hour time press STANDBY...

  • Page 31: Last Function Memory

    • If step 3 does not work,start over from step 1. STANDBY • If the microprocessor has been initialized all the button settings are reset to the default values (the values set upon shipment from the factory). TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 DIMMER DISPLAY STANDBY STANDBY SECONDARY...

  • Page 32: Troubleshooting

    DAB stations start broadcasting. station name. I hear a burbling sound on • DAB like other digital media is good • Use the ST7001’s “Tuning aid” while some stations. at producing quality audio from a low repositioning your antenna to get the...

  • Page 33: Specifications & Dimensional Drawings

    Remote Control Connecting Cord ........1 Selectivity ......40 dB (at adjacent channel) User Guide ..............1 Registration Card ............1 * For purposes of improvement, specifications and design are subject to change without notice. TUNING/PRESET TUNING/PRESET DAB/FM/AM TUNER ST7001 DAB/FM/AM TUNER ST7001 STANDBY STANDBY SECONDARY SECONDARY TUNED...

  • Page 34: Others

    In the event of difficulty, refer to your dealer or write directly wool, scourging powders or harsh chemical agents (e.g., lye to the nearest location to you that is listed on the Marantz solution), alcohol, thinner, benzine, insecticide or other Authorized Service Station list.
  • Page 35 You can find your nearest authorized distributor or dealer on our website. U.S.A. Marantz America, Inc. 1100 Maplewood Drive, Itasca, IL 60143, U.S.A. EUROPE Marantz Europe B.V. P.O. Box 8744, 5605 LS Eindhoven, The Netherlands is a registered trademark.
