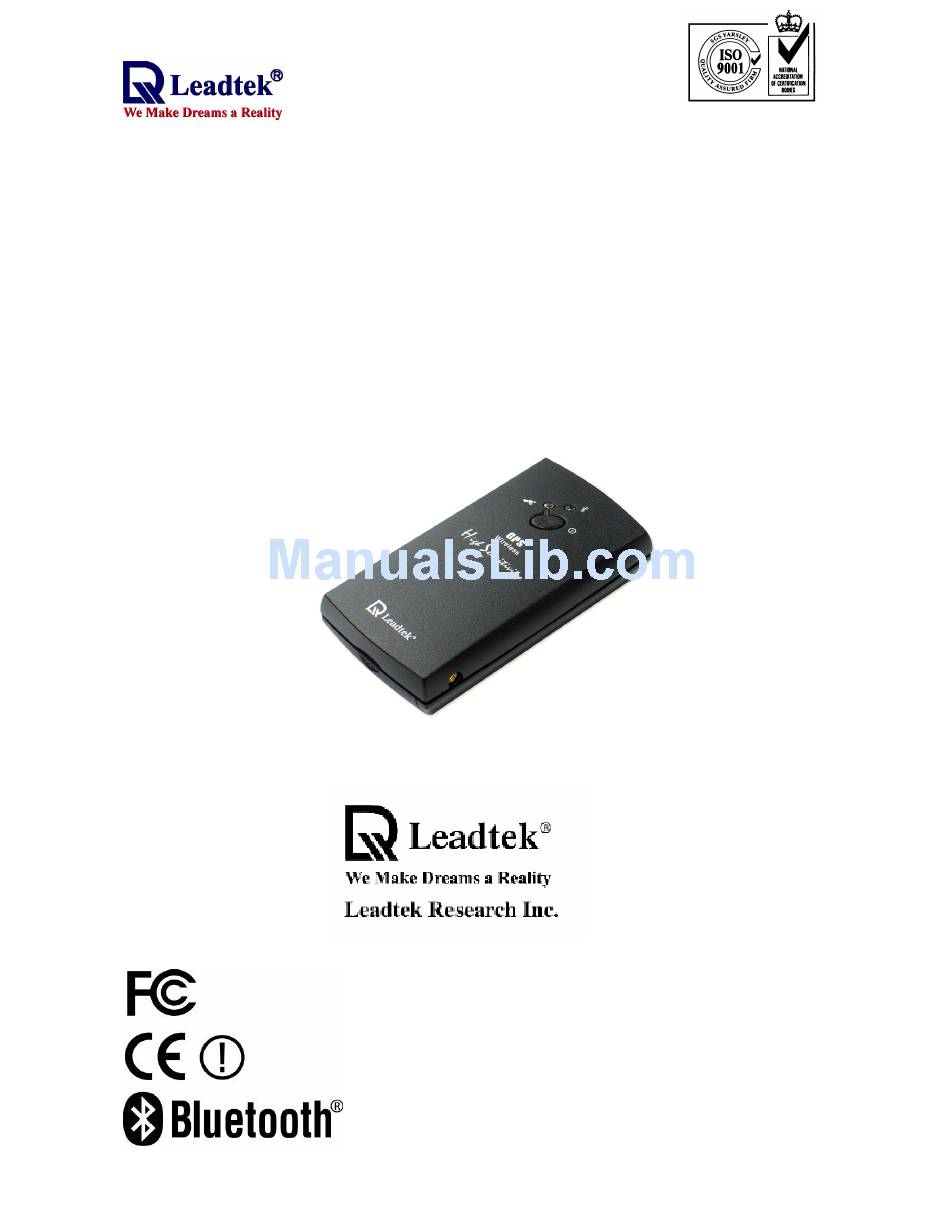

- Page 1 _______________________________________________________________________________________________ Leadtek GPS 9537 Wireless Bluetooth Receiver 39000099 Quick Guide...
-
Page 2: Table Of Contents
Hardware Description ................2 Check the package contents..............3 Installing WinFast Navigator for Pocket PC......... 4 How to test Leadtek GPS 9537 BT Receiver ........7 Appendix A. Limited Warranty............... 12 Appendix B. Cautions ................13 Appendix C. GPS FAQs ................15... -
Page 3: Overview
. With the development of new generations of navigation systems, the (*1) Leadtek GPS 9537 Wireless Bluetooth Receiver can be connected to your PDA or Notebook Using installed map software; you can plan your route and find your position to find out (*2). -
Page 4: Hardware Description
_______________________________________________________________________________________________ Hardware Description The Leadtek GPS 9537 Wireless Bluetooth The Bluetooth GPS has two LED lights, each having two colors. One is Bluetooth & low power status LED, named LED 1 and the other is GPS & Charge status LED, named LED 2. The status table of the... -
Page 5: Check The Package Contents
CD-ROM x 1 (7) Rechargeable (5) Power Adapter (6) EU Adapter Plug (8) UK Adapter Plug Battery <Note 1> Software in the CD-ROM includes “CE Navigator” for GPS receiver evaluation, product manual and other Leadtek GPS drivers and utility software. -
Page 6: Installing Winfast Navigator For Pocket Pc
If the setup window does not appear automatically, run install.exe on the CD. Click “Install CE Navigator” to initialize the installation. You can also download this software through our website, www.leadtek.com.tw Step 2. The setup program dialog box appears. Click “Next”... - Page 7 _______________________________________________________________________________________________ Step 3. The dialog box for choosing the installation Destination Location appears. It gives the default destination folder location. If you wish to change the folder location, browse for a different location. If not, click “Next” Step 4.
- Page 8 _______________________________________________________________________________________________ Now you have completed the setup for the installation. Click “Next” to start installation the CE Navigator Step 5. Installation in progress……… Step 6. When the installation is completed, a dialog box tells you to check your mobile device screen to see if additional steps are necessary to complete this installation.
-
Page 9: How To Test Leadtek Gps 9537 Bt Receiver
<Note>: Actual Bluetooth connection steps may be varying for different Pocket PC operating systems or Bluetooth drivers. Step 2 Set up Leadtek GPS 9537 BT Receiver shortcut. Please do it step by step. ¢ Select “Bluetooth Manager” Select “New” and “Connect!” to add new device. - Page 10 _______________________________________________________________________________________________ Select “Explore a Bluetooth device” and click Choose “No device selected” £ £ £ £ £ £ £ £ “Next” Select Bluetooth target device. 6: Then select the target service and click “Next”. £ £ £ £...
- Page 11 _______________________________________________________________________________________________ Click “Finish” The shortcut will be showed on the screen, after £ £ £ £ £ £ £ £ setting.
- Page 12 _______________________________________________________________________________________________ Step 3 Bluetooth’s online mode ¢ Select “Connect” to establish the link. When the connection has been established, the £ £ £ £ £ £ £ £ application can open the device. Step 4 Testing steps are as below. ¢...
- Page 13 Click “View” then select “Signal Level”, you will see Click “View” and then select “Development” and £ £ £ £ £ £ £ £ the satellites and CN ratio list. When GPS reception the NMEA output messages from the GPS 9537...
-
Page 14: Appendix A. Limited Warranty
Appendix A. Limited Warranty Leadtek warrants to the original purchaser of this product that it shall be free of defects resulting from workmanship or components for a period of one (1) year from the date of sale. -
Page 15: Appendix B. Cautions
_______________________________________________________________________________________________ your computer or related peripherals, software. Leadtek’s sole obligation and liability under this warranty is limited to the repair or replacement of a defective product. The manufacturer shall not; in any event, be liable to the purchaser or any third party for any incidental or consequential damages or liability in tort relating to this product or resulting from its use or possession. - Page 16 _______________________________________________________________________________________________ measures: Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The GPS 15H &...
-
Page 17: Appendix C. Gps Faqs
Appendix C. GPS FAQs Q: My Pocket device asks for a Paring code? All Leadtek Bluetooth devices have a paring code “0000”. Q: Why does the GPS positioning fail, even though the satellite signal appears to be normal on my PDA? A: The reason might be that the GPS has not been used for a while, and the GPS needs to be reset. - Page 18 Therefore, positioning must be done outdoors where satellite signal can be received. Q: How can the Leadtek GPS 9537 BT Receiver signal and battery power level be identified? A: When the power is turned on, the Bluetooth signal is blue and it flashes. After Bluetooth is connected with PDA, the Bluetooth signal flashes rapidly and even appears to be constantly on.
- Page 19 _______________________________________________________________________________________________ Q: Under what circumstances do I have to perform “Cold Start”? A: If the positioning usage time is longer than two weeks or the location of positioning is greater than 500 km away from the previous location of positioning, then you will need to perform “Cold Start”.
