Leadtek LR9580 Quick Installation Manual

Bluetooth gps receiver

Advertisement

Quick Links

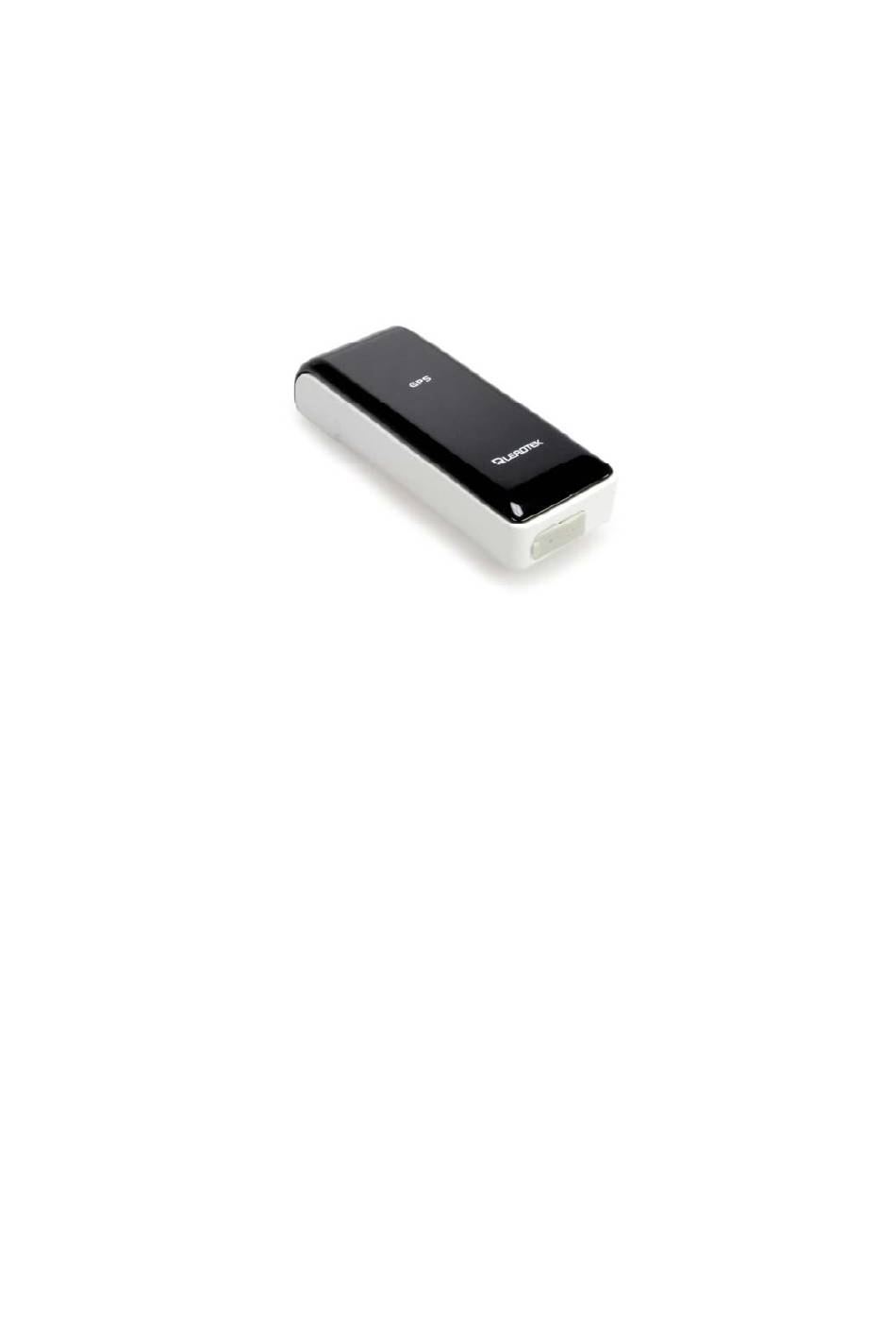

Leadtek GPS LR9580

Bluetooth GPS receiver

Quick Installation Guide
FCC CE SRRC BT
1. Package
1. LR9580 main unit *1
2. USB cable *1
3. Car charger *1
4. Quick Installation Guide *1
5. Neck eyelet strap *1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR9580 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Leadtek LR9580

  • Page 1: Bluetooth Gps Receiver

    Leadtek GPS LR9580 Bluetooth GPS receiver Quick Installation Guide FCC CE SRRC BT 1. Package 1. LR9580 main unit *1 2. USB cable *1 3. Car charger *1 4. Quick Installation Guide *1 5. Neck eyelet strap *1...
  • Page 2: Technical Specification

    2. Specifications ◎Technical specification Feature Item Description Chipset MT 3318f +6601 GPS single chip + Bluetooth chipset General Frequency L1, 1575.42 MHz C/A code 1.023 MHz chip rate Channels 14/32 Accuracy Position 3 meters, 2D RMS 2.5 meters 2D RMS, WAAS corrected <2.5 meters (50%) Velocity 0.1 meters/second...
  • Page 3: Environmental Characteristics

    ◎Environmental Characteristics Items Description Operating temperature range -10 deg. C to +50 deg. C Storage temperature range -20 deg. C to +65 deg. C ◎Physical Characteristics Items Description Length 75.6mm ± 0.12 mm Width 28.4mm ± 0.08 mm Height 18.7mm ± 0.08 mm Weight 38 g (including rechargeable battery) ◎Interface Specifications...
  • Page 4: Electrical Specifications

    ◎Electrical Specifications Power Item Description Main power input DC 3.3~5.0V Power consumption 185 mW (Acquisition mode) 106 mW (Tracking mode) Supply Current 56 mA@3.3VDC (Acquisition mode) 32 mA@3.3VDC (Tracking mode) Battery Item Description Model Type Lithium ion Polymer Capacity 670mAh Nominal Voltage 3.7V Weight...
  • Page 5: Getting Started

    3. Getting Started 3.1Charge Charge with your USB cable (via PC) or Car charger (via Car cigarette) 3.2 Power Pull the switch on to turn on LR9580. 3.3 Special design Convenient eyelet, easy to carry...
  • Page 6 Non-slip design 3.3 LED Display LED 1 (GPS)-Green State Always on Quick blinking Slowly blinking Description Memory full to stop 3D fixed GPS signal acquisition LED 2 (Bluetooth)-Blue State Quick blinking Slowly blinking Description BT on, but not connected yet BT connected LED 3 (Power)-Red...
  • Page 7 Bluetooth manager program. Secondly, turn the LR9580 on, and the Bluetooth LED indicator starts quick blinking. Step 2 Wait a while, tap the device name “LR9580” once it is found in your PDA, and select SPP slave to add LR9580. When password is required, enter “0000”. Step 3 Once connected, the blinking starts to get slower.
  • Page 8: Safety Information

    Hence there is a certain degree of risks involving the use of these products. In order to reduce the risks, please read carefully all the documentation regarding technical specifications before using Leadtek GPS LR9580. When in use, compare carefully the GPS results with all navigation information available, including that from other NAVAID, naked eye view, routes, etc.
  • Page 9: Federal Communications Commission Interference Statement

    FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
