Summary of Contents for Gigabyte GN-GT5D

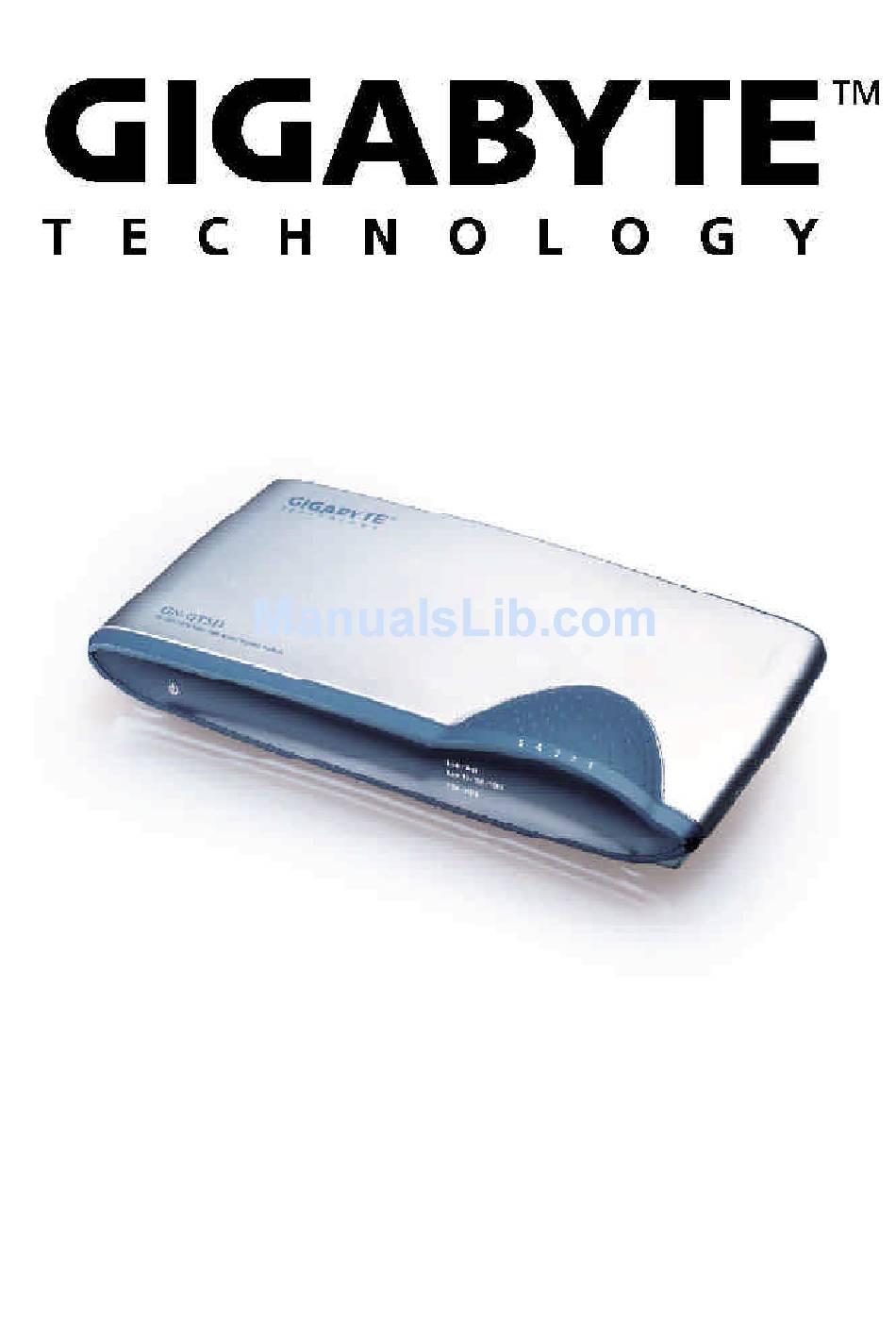

- Page 1 GN-GT5D Gigabit Ethernet Switch User Guide Rev.1.0 First Edition...
-
Page 2: Fcc Warning
GN-GT5D Gigabit Ethernet Switch FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limitations are designed to provide reasonable protection against harmful interference in a residential installation. This equip-... -
Page 3: Ce Mark Warning
GN-GT5D Gigabit Ethernet Smart S witch CE Mark Warning This is a Class A product. The product may cause radio interference in a domestic environment or residential area. If interference does occur, the user may need to take appropriate actions to counteract this interference. -
Page 4: Table Of Contents
GN-GT5D Gigabit Ethernet Switch Contents Chapter1 Introduction ......5 Overview ............5 Features..............6 Switch Specification ...........6 Physical Specification ........6 Package Contents..........7 The Rear Panel ...........7 Installing the Hardware........8... -
Page 5: Chapter1 Introduction
Chapter1 Introduction Overview The Gigabyte GN-GT5D is a powerful, high-performance, Fast Ethernet Switch, which acts as traffic controller for 5 highways to connect your networks to other outside networks. With 5 Gigabit Ethernet uplink ports, the Gigabit Switch can automatically negotiate with the connected partners for the network speed and duplex mode. -
Page 6: Features
GN-GT5D Gigabit Ethernet Switch Features 10/100/1000Mbps 5-port Ethernet Switch (RJ-45) IEEE802.3x, full-duplex flow control; back-pressure, half-duplex flow control Embedded 2Mbits SSRAM packet buffer/address table 8K MAC address table auto-ageing Support MDI/MDI-X auto detection Non-blocking, Store-and-Forward switching Automatic source address learning and aging... -
Page 7: Package Contents
Gigabyte GN-GT5D Gigabit Switch AC Power Adapter User’ s Guide for the Gigabyte GN-GT5D Gigabit Switch Please contact your local distributor or authorized reseller immediately for any missing or damaged components. If you require returning the damaged product, you must pack it in the original packing material or the warranty will be voided. -
Page 8: Installing The Hardware
GN-GT5D Gigabit Ethernet Switch Installing the Hardware The site where you place the Switch may greatly affect its performance. When installing, take the following into your consideration: Install the switch in a fairly cool and dry place. See Physical Specification for the acceptable temperature and humidity operating ranges. -
Page 9: Limited Warranty
GN-GT5D Gigabit Ethernet Smart S witch Limited Warranty 1-Year Warranty Gigabyte warrants to the original consumer/purchaser that the product free from defects in material and workmanship for no limited time from the original manufactory shipment date. This warranty does not cover the product if it is damaged in the process of being installed or improperly used. - Page 10 www.gigabyte.c om.tw 25A08-0GT5D-F00...
