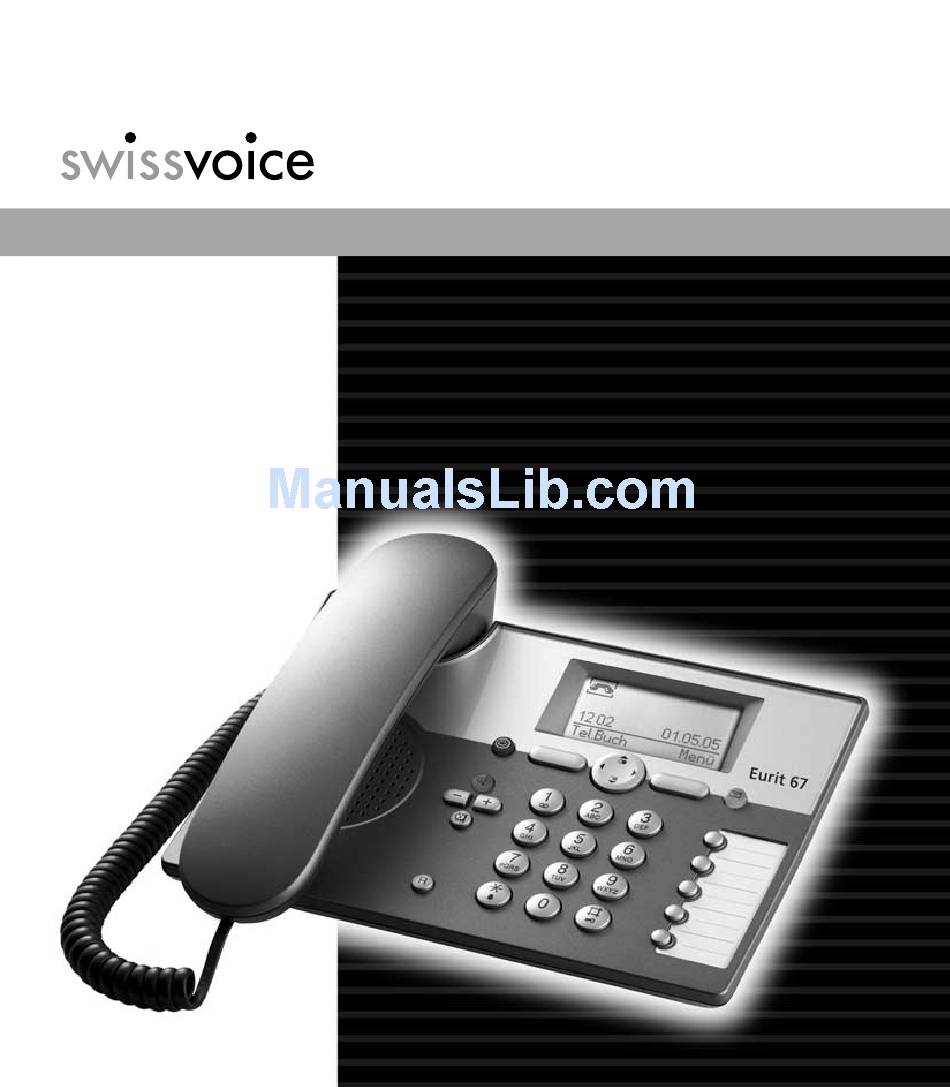

Eurit 67
C o r d e d I S D N t e l e p h o n e
User Manual
Important:
This user manual contains
safety precautions!
Please read carefully before
putting the telephone into
operation, and store
in a safe place.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eurit 67 and is the answer not in the manual?

Questions and answers

Summary of Contents for Swissvoice Eurit 67

  • Page 1 Eurit 67 C o r d e d I S D N t e l e p h o n e User Manual Important: This user manual contains safety precautions! Please read carefully before putting the telephone into operation, and store...
  • Page 2: Safety Precautions

    Safety precautions This corded telephone is designed for connection to the public ISDN network. Any other use whatsoever is not permitted and is regarded as in violation of the provisions. The user manual with safety precautions is a part of the product package and must be passed on to the new owner on reselling.
  • Page 3: Table Of Contents

    Keep this user manual in a safe place! Note: These operating instructions describe the full range of functions provided by the Eurit 67. The functions and instructions described in this user manual may differ or be limited by the characteristics of your network operator or provider.
  • Page 4 Contents Getting to know your telephone ………………………………………………………12 Overview and operating elements …………………………………………………………12 Display symbols ………………………………………………………………………………14 About the menus ……………………………………………………………………………15 Menu navigation …………………………………………………………………………15 Back to previous menu …………………………………………………………………15 End menu …………………………………………………………………………………15 Telephoning …………………………………………………………………………………16 Call preparation ………………………………………………………………………………16 Accepting a call ………………………………………………………………………………16 Reject a call …………………………………………………………………………………16 Send DTMF/keypad information ……………………………………………………………16 Speed dialling …………………………………………………………………………………17...
  • Page 5 Contents Directory………………………………………………………………………………………22 Directory entries ………………………………………………………………………………22 Adding a new entry ……………………………………………………………………22 Tips for entering names/numbers ………………………………………………………22 Editing entries ……………………………………………………………………………23 Deleting directory entries/entire directory ……………………………………………23 Dialling numbers from the directory ………………………………………………………23 Sending SMS messages from the directory* ………………………………………………23 VIP directory …………………………………………………………………………………24 Calls list* ……………………………………………………………………………………25 Viewing/dialling a number from the calls list ………………………………………………25 Sending SMS messages from the calls list* ………………………………………………25...
  • Page 6 Contents Settings ………………………………………………………………………………………29 Type of display ……………………………………………………………………………29 Charge factor ……………………………………………………………………………29 Currency …………………………………………………………………………………29 Calender/clock ………………………………………………………………………………30 Appointments ………………………………………………………………………………30 Alarm …………………………………………………………………………………………30 Time/date ……………………………………………………………………………………30 Network functions (supplementary services) …………………………………………31 Call forwarding ………………………………………………………………………………31 Unconditional ……………………………………………………………………………31 No reply …………………………………………………………………………………31 Busy ………………………………………………………………………………………31 Call anonymously (Identification restriction) ………………………………………………32 Conference assistant …………………………………………………………………………32 Parking ………………………………………………………………………………………32...
  • Page 7 Contents Outbox ………………………………………………………………………………………36 Templates ……………………………………………………………………………………37 Settings ………………………………………………………………………………………37 SMS service centre ………………………………………………………………………37 Send service ………………………………………………………………………………37 SMS alert on/off …………………………………………………………………………37 Settings ………………………………………………………………………………………38 Language ……………………………………………………………………………………38 Display …………………………………………………………………………………………38 Contrast …………………………………………………………………………………38 Backlight …………………………………………………………………………………38 Telephony ……………………………………………………………………………………39 Automatic keypad ………………………………………………………………………39 Speed dial keys ………………………………………………………………………………39 Programming speed dial keys …………………………………………………………39 Changing a programmed speed dial key ………………………………………………39 System PIN ……………………………………………………………………………………40...
  • Page 8 Contents Maintenance …………………………………………………………………………………43 Reset …………………………………………………………………………………………43 Software version and update ………………………………………………………………44 Software version …………………………………………………………………………44 Software update …………………………………………………………………………44 Emergency operation ………………………………………………………………………45 Emergency operation on network termination unit …………………………………45 Emergency operation on a PBX …………………………………………………………45 General information ………………………………………………………………………46 Approval and conformity ……………………………………………………………………46 Warranty conditions …………………………………………………………………………46 Warranty Certificate ………………………………………………………………………47 Write-on label ………………………………………………………………………………49...
  • Page 9: Setting Up The Telephone

    1 cyrillic transparency Location Place the Eurit 67 on an even, dry surface within range of the connection socket. If the selected position is too far from the connection socket, use an approved extension cable which you can buy at any specialist outlet.
  • Page 10: Connecting The Telephone

    Setting up the telephone Connecting the telephone The connection sockets for the handset and connection cord are located on the base of the telephone. Connect the handset first, then plug the telephone in to the jack. Connecting the handset The connectors at both ends of the spiral cord are the same size.
  • Page 11: Connecting The Telephone

    Setting up the telephone Connecting the telephone Plug the smaller of the two connectors on the telephone connection cord into the socket on the telephone base marked with the telephone symbol. Press the cable into the cable duct . To do this, use a flat, thin object to press the cord under the grips.
  • Page 12: Write-On Label

    Setting up the telephone Write-on label The phone is delivered with the write-on label already inserted. The last page of this user manual contains additional labels for the speed dial keys. Cut a new label out whenever you need one. Insert the cut-out label into the recess near the speed dial keys .
  • Page 13: Multiple Subscriber Numbers (Msn)

    Setting up the telephone Multiple Subscriber Numbers (MSN) When you ordered your ISDN connection, your network operator will have assigned you several Multiple Subscriber Numbers (MSN). You can assign these numbers to different devices or assign individual numbers to different users. Every MSN (user) can then define individual settings for the number assigned to him or her.
  • Page 14: Getting To Know Your Telephone

    Overview and operating elements Handset Handset hook Smiley key Navigation key Redial Loudspeaker key Calls list Message key Minus/Plus key Softkey Softkey Eurit 67 Mute key Speed dial keys Alphanumerical keypad Loudspeaker Enquiry key Speakerphone Asterisk key/ Hash key/ Ringer on/off Activating...
  • Page 15 Getting to know your telephone Softkeys (multifunctional keys) Right softkey: Choose menu options, confirm entries/settings. Left softkey: return to previous menu step. Navigation key For scrolling up/down or right/left Redial Open redial list. Opens calls list*. Message key Access to new unanswered calls or new SMS messages. Loudspeaker key Listening by loudspeaker: Activate loudspeaker during a call for others in the room to listen in.
  • Page 16: Display Symbols

    Getting to know your telephone Keypad locked A locked keypad prevents numbers being dialled inadvertently. Enquiry key with flash function. Smiley key Opens the VIP directory. 5 Speed dial keys (dual-programmable). Display symbols Alarm set Unanswered calls* Indicates that the alarm is set. Displayed if you have unanswered calls in the calls list.
  • Page 17: About The Menus

    Getting to know your telephone About the menus Menu navigation Your handset provides you with an easy-to-follow menu. As a rule, every menu offers a list of options. To select main menu, sub-menu and options, press the softkey below the corresponding display text. Press the softkey under MENU to open the main menu and use the navigation key scroll to the option you are seeking.
  • Page 18: Telephoning

    Telephoning Call preparation First, enter the number. If you enter an incorrect number, you can delete the entry. Lift the handset to dial the number. Accepting a call The caller's number or name (if stored in the directory) are displayed only if your network operator supports caller line ID (Caller Line ID Presentation/CLIP*).
  • Page 19: Speed Dialling

    Telephoning Speed dialling Your telephone offers the option of dialling frequently used numbers by simply pressing a speed dial key. There are 5 keys available for this purpose. Each can be programmed twice to give a total of 10 numbers. The numbers stored under speed dial keys are available to all users.
  • Page 20: Listening By Loudspeaker

    Telephoning Listening by loudspeaker Unlike handsfree, others present in the room can listen in the call, your caller however only hears what is said through the handset (not what is said in the room). You are talking on the handset and want others in the room to listen in. Press to activate the loudspeaker.
  • Page 21: Redial

    Telephoning Redial The 15 last-dialled numbers are saved in a redial list. If a name and number are already stored in the directory, the name is shown instead of the number. Redialling a number from the list Press to open the redial list and press to scroll through the list.
  • Page 22: Sending Sms Messages From The Redial List

    Telephoning Sending SMS messages from the redial list* 1. Press the softkey under . Use to scroll through the list to find the entry you are seeking, and press the softkey under OPTION. 2. Write and send your SMS message. Keypad lock 1.
  • Page 23: Brokering (Switching Between Two Calls)

    Telephoning Brokering (switching between two calls) You have two active calls (one is hold), one of which is on hold. You can switch between the two by brokering. 1. You are conducting two calls, one of which is on hold. 2.
  • Page 24: Directory

    Directory You can store up to 100 names and numbers in the directory. Every entry contains a name and telephone number. Names can be up to 16 letters long and numbers up to 24 digits long. Directory entries Adding a new entry If the telephone is in standby mode: 1.
  • Page 25: Editing Entries

    Directory Editing entries 1. Press the softkey under DIRECTORY. Use to scroll through the list to find the entry you are seeking, and press the softkey under OPTION. 2. Edit the name and/or number and save the entry. Deleting directory entries/entire directory You can delete individual entries or the entire directory.
  • Page 26: Vip Directory

    Directory VIP directory You can store 10 frequently-used numbers in the VIP directory. The VIP directory is stored under . The telephone is supplied with the VIP directory empty. To enter a number in the VIP directory, press , enter the name and number, and save. Numbers in the VIP directory can be deleted and/or edited at any time.
  • Page 27: Calls List

    Calls list* If your network operator supports caller line ID* (CLIP), the caller's number (unless with- held) is displayed before you accept the call. If you have received new calls, a message to this effect appears in the display. A list is kept of answered and unanswered calls.
  • Page 28: Saving Numbers From The Calls List To The Directory

    Calls list* Saving numbers from the calls list to the directory 1. Press . Scroll through until you reach the entry you are seeking. 2. Press the softkey under OPTION, SAVE NUMBER . Enter the name for the associated number and define your individual settings. Assign the entry to the relevant user and save.
  • Page 29: Audio

    Audio Procedure: 1. Press the softkey under MENU. Press to scroll to AUDIO ad press OK to confirm. 2. Scroll to the relevant submenu and make the relevant settings: Ringer You can programme different ringer melodies for each MSN. Choose from 10 standard ringer melodies.
  • Page 30: Family

    Family Procedure: 1. Press the softkey under MENU. Press to scroll to FAMILY and press OK to confirm. 2. Scroll to the relevant submenu and make the relevant settings: Direct call (baby call) If you activate direct call on your telephone, the telephone dials a preprogrammed number when any key is pressed.
  • Page 31: Call Costs

    Call costs Procedure: 1. Press the softkey under MENU. Press to scroll to CHARGES and press OK to confirm. 2. Scroll to the relevant submenu and make the relevant settings: Cost of last call You can display the cost of the last call as well as call charges per MSN or handset. Summary You can display the total per handset and for all MSNs.
  • Page 32: Calender/Clock

    Calender/clock Procedure: 1. Press the softkey under MENU. Press to scroll to CALENDAR/CLOCK and press OK to confirm. 2. Scroll to the relevant submenu and make the relevant settings: Appointments Your telephone also acts as an appointments reminder: You can set 5 different appoint- ment reminders.
  • Page 33: Network Functions (Supplementary Services)

    Network functions (supplementary services) Network functions are dependent on your network operator. Find out about availability and charges, if applicable. Procedure: 1. Press the softkey under MENU. Press to scroll to NET FUNCTIONS and press OK to confirm. 2. Scroll to the relevant submenu and make the relevant settings: Call forwarding Call forwarding allows callers to reach you even if you are not near your own telephone.
  • Page 34: Call Anonymously (Identification Restriction)

    Network functions (supplementary services) Call anonymously (Identification restriction) When you call someone, your number is shown on the other person's phone if it sup- ports this function. You can program your MSN so that your calling line ID is suppressed (see section on “MSN settings”).
  • Page 35: Recall

    Network functions (supplementary services) Recall This service is dependent on your network operator. Call back on busy (Completion of Calls to Busy Subscriber / CCBS) If a number you have dialled is busy, you can activate call back by pressing the softkey under CCBS or by pressing and holding down (the acitvated call back is signalled in the display with...
  • Page 36: Network Answer Machine (Voicebox)

    Network functions (supplementary services) Network answer machine (Voicebox) Many network operators offer the option of setting up a network answer machine (voicebox). Check whether this network function is available, the associated charges (if applicable) and the functions provided by this service. is displayed to alert you to new messages.
  • Page 37: Sms

    SMS – Short Messaging Service Sending and receiving SMS messages is a network function. To send and receive SMS messages, your telephone line must have active Caller Identification Presentation (CLIP) and Connected Line Presentation (COLP)*. Check with your network operator to find out whether the SMS network function is available and about charges, if applicable.
  • Page 38: Inbox

    Inbox New SMS messages are signalled in the display by and saved in the inbox. Press the softkey under INBOX to read new SMS messages. Or BACK, to read SMS messages later. Once you have read the SMS messages, you can answer, forward, save or delete them, or call the sender.
  • Page 39: Templates

    Templates To simplify writing SMS messages, you can create up to 5 templates. You can edit and delete these templates or create a new SMS message template. Settings SMS service centre Before you can send and receive SMS messages, an SMS service centre must be pro- grammed with the associated access number.
  • Page 40: Settings

    Settings menu: English/German/Slovenian • Default language: Russian Settings menu: English/Russian To have the full choice of languages again, you need to reset your Eurit 67 (see chapter “Settings, Maintenance, Reset”). Note A reset deletes all your preferences, lists, and directory entries.
  • Page 41: Telephony

    Settings Telephony Automatic keypad If the asterisk or hash key is pressed before dialling, the telephone automatically switches to “keypad signalling” (default setting: on). In some PBXs e.g. those in which automatic EAC selection is activated, you need to deactivate automatic keypad sending to initate internal calls by pressing the asterisk key.
  • Page 42: System Pin

    Settings System PIN Procedure: 1. Press the softkey under MENU. Press to scroll to SYSTEM PIN In the SETTINGS menu and press OK to confirm. 2. Change the existing system PIN as required. Note • We recommend that you change the system PIN to protect your telephone against unauthorised access.
  • Page 43: Pbx Access

    PBX access Compatibility You can also connect your telephone to an ISDN private branch exchange. The functionality is dependent on your PBX type. Contact your network operator for further information. Exchange Access Code EAC You may need to enter an exchange access code (e.g. 0) to allow the public exchange to assign an external line for external calls or for calling back numbers in the calls list.
  • Page 44: Functions

    PBX access Functions Entering EAC on/off If the EAC automatically is set for connected line presentation, you have to activate this function to be able to call back from the calls list directly. Make the relevant settings (on or off) in the FUNCTIONS menu.
  • Page 45: Maintenance

    Maintenance Reset You can reset the telephone to default status as follows: Procedure: 1. Press the softkey under MENU. Scroll to MAINTENANCE in the SETTINGS menu. Press OK to confirm. 2. Press RESET and press OK to confirm. The default settings are restored. Note •...
  • Page 46: Software Version And Update

    Maintenance Software version and update Procedure: 1. Press the softkey under MENU. Scroll to SPEED DIAL KEYS in the SETTINGS menu and press OK to confirm. 2. Scroll tho the relevant submenu and make the relevant settings. Software version You can display the name and the latest software version installed in your phone. Software update The software of your telephone is continually adapted to the state of the art.
  • Page 47: Emergency Operation

    Maintenance Emergency operation One of your phones can still be operated in emergency mode during power failures (emergency operation). You have to switch ON the emergency operation on the base of the telephone that is used for emergency operation. Your telephone is delivered with the emergency operation deactivated (OFF). Emergency operation on network termination unit Emergency operation switch...
  • Page 48: General Information

    The declaration of conformity may be viewed at: www.swissvoice.net. The CE symbol confirms the conformity of the telephone with the above directive.
  • Page 49: Warranty Certificate

    Warranty Certificate Warranty Certificate Garantieschein, Bon de garantie, Certificato di garanzia, Garantiebewijs, Takuutodistus, Garantibevis, Garantisedel, Garantibevis, Certificado de Garantía, Talão de garantia device type: (Gerätetyp, type d’appareil, tipo di apparecchio, toesteltype, laitetyyppi, maskintype, apparattyp, apparattype, modelo del aparato, modelo do aparelho): serial number: (Seriennummer, numéro de série, numero di serie, serienummer, sarjanumero, serienummer, serienummer, serienummer, número de serie, número de série):...
  • Page 51: Write-On Label

    Write-on label...
  • Page 60 Internet: www.swissvoice.net © Swissvoice AG 2005 All rights as well as delivery possibilities and technical changes reserved. 20403219SIen_ba_000_a0 SV 20403219...
