Tanaka TBC-420PF Illustrated Parts Manual

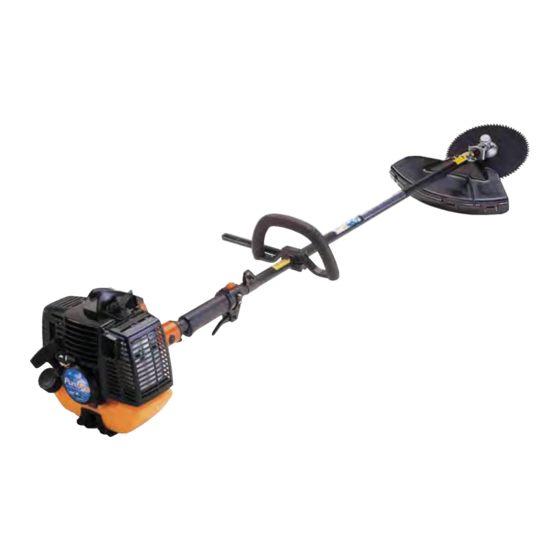

Low emission trimmer / brush cutter
Hide thumbs Also See for TBC-420PF:

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual
Model Number:
TBC-420PF
LOW EMISSION TRIMMER / BRUSH CUTTER
ISM, Inc. • 1028 4
www.tanaka-ism.com
Illustr
Illustr a a a a a ted P
Illustr
Illustr
Illustr
C.A.R.B. Tier II Certified!
Supplier To The Outdoor Power Equipment Industry
Street SW • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
th
ted P
ted P
ar
ar
ted P ar
ar ts Man
ted P
ar
ts Man
ts Man
ts Man ual
ts Man
P/N 29759
Rev 001
Date 5-14-08
custsvc@tanaka-ism.com
ual
ual
ual
ual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TBC-420PF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tanaka TBC-420PF

Summary of Contents for Tanaka TBC-420PF

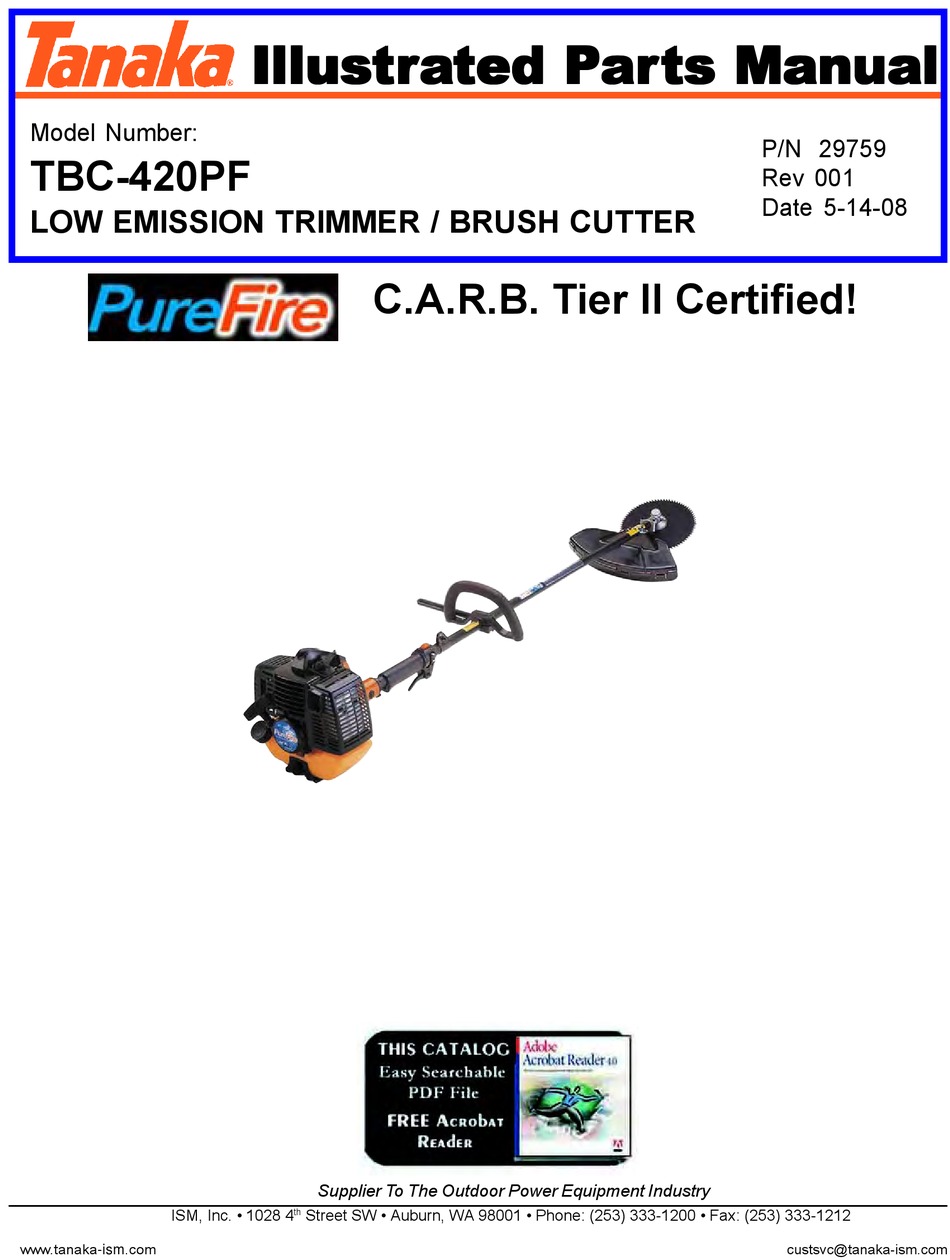

  • Page 1 Man ual Illustr Illustr ted P ts Man Model Number: P/N 29759 TBC-420PF Rev 001 Date 5-14-08 LOW EMISSION TRIMMER / BRUSH CUTTER C.A.R.B. Tier II Certified! Supplier To The Outdoor Power Equipment Industry ISM, Inc. • 1028 4 Street SW •...
  • Page 2 16.0 (7.3) All data and specifications are subject to change without notice For more information, contact: ISM, Inc. • 1028 4th St. Sw, Suite B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212 • E-mail: custsvc@tanaka-ism.com...
  • Page 3 TBC-420PF PARTS INFORMATION CYLINDER, PISTON & CRANKSHAFT • FIGURE 1 ITEM PART NUMBER DESCRIPTION COMMENTS 25504200200 COVER,SPARK PLUG,RUBBER 15711666900 CAP,SPARK PLUG 0181166021 PLUG.SPARK 1-11 0010440590 SET,CYLINDER Includes gasket 1-12 99461050204 BOLT,HEX,HOLE,5X20,S 1-14 0170440020 GASKET,CYLINDER 1-15 04104050200 RING,PISTON 1-16 0300440090 PISTON SET...
  • Page 4 TBC-420PF PARTS INFORMATION CRANKCASE, FLYWHEEL & IGNITION • FIGURE 2 ITEM PART NUMBER DESCRIPTION COMMENTS 2570440020 PROTECTOR 99463050204 BOLT, HEX 5X20 2-19 7880162V20 PAWL,STARTER 2-20 99355050000 RING,STOP,5 2-23 99111100013 NUT,10 2-24 7900162V200 SPRING,PAWL,STARTER 2-25 7980422090 PAWL,STARTER ASS'Y 2-26 0720440090 CRANKCASE,ASSY...
  • Page 5 TBC-420PF PARTS INFORMATION FUEL SYSTEM • FIGURE 3 Page 3 www.tanaka-usa.com custsvc@tanaka-usa.com...

  • Page 6: Parts Information

    PARTS INFORMATION TBC-420PF FUEL SYSTEM • FIGURE 3 ITEM PART NUMBER DESCRIPTION COMMENTS 3-31 4030430020 GASKET,INLET MANIFOLD 3-32 4040430090 SET,CARB INSULATOR Includes gasket 3-33 4020430020 GASKET,CARBURETOR 3-34 4530637C200 COLLAR 3-35 4700138020 COLLAR 3-36 4230138082 BODY,CLEANER 3-37 5280138021 VALVE,CHOKE 3-38 47601700200...
  • Page 7 TBC-420PF PARTS INFORMATION MUFFLER, COVER & CLUTCH • FIGURE 4 Page 5 www.tanaka-usa.com custsvc@tanaka-usa.com...
  • Page 8 TBC-420PF PARTS INFORMATION MUFFLER, COVER & CLUTCH • FIGURE 4 ITEM PART NUMBER DESCRIPTION COMMENTS 7380440A21 PROTECTOR,MUFFLER 99461050124 BOLT,HEX,5X12S 99461050164 BOLT,HEX,5X16,S ~U207604 99053060653 SCREW,HEX,6X65 99201060011 WASHER,6 7040440090 SET,MUFFLER Includes gasket (#14), not heat shield (#16) 99201050061 WASHER,5 ~U207604 99201050061 WASHER,5...
  • Page 9 TBC-420PF PARTS INFORMATION RECOIL STARTER • FIGURE 5 ITEM PART NUMBER DESCRIPTION COMMENTS 7620422090 STARTER,RECOIL ASSY 7720422080 BODY,RECOIL STARTER 7690422020 REEL,STARTER ROPE 7790422020 SPRING,RECOIL 7830422020 ROPE,STARTER 5-12 8350422020 CAP,HANDLE 5-14 7850422020 HANDLE,STARTER 5-17 8390422020 SCREW,SET Page 7 www.tanaka-usa.com custsvc@tanaka-usa.com...
  • Page 10 TBC-420PF PARTS INFORMATION CARBURETOR • FIGURE 6 ITEM PART NUMBER DESCRIPTION COMMENTS 4550440090 SET,CARBURETOR Includes gasket 51425100200 SCREW,THROTTLE SET 54425164200 STAY,ADJUST,CABLE 53925120200 SWIVEL 5492516520 WASHER,THRUST 48925100200 RING,STOP 61425137200 ADJUSTER,CABLE 6-10 55025100200 O-RING 6-11 5992001W440 MAIN JET #44 6-12 99101060013 NUT,6...
  • Page 11 TBC-420PF PARTS INFORMATION CLUTCH CASE • FIGURE 7 Units after S/N W032375 ITEM PART NUMBER DESCRIPTION COMMENTS 2890430080 SHAFT,CLUTCH 99961620202 BEARING,BALL,#6202Z 99350015002 RING,STOP,C-15 EX 3310430020 CASE,CLUTCH 99191050001 NUT,5 S/N ~W032374 99074045164 SCREW,TAPPING 4.5x16 S/N ~W032374 99051050163 BOLT,HEX,5X16 S/N W032375~ 5990430020...
  • Page 12 TBC-420PF PARTS INFORMATION THROTTLE LEVER, HANDLE, DRIVE SHAFT • FIGURE 8 Page 10 www.tanaka-usa.com custsvc@tanaka-usa.com...
  • Page 13 TBC-420PF PARTS INFORMATION THROTTLE LEVER, HANDLE, DRIVE SHAFT • FIGURE 8 ITEM PART NUMBER DESCRIPTION COMMENTS 3433785020 SHAFT,DRIVE 3413810080 PIPE,DRIVE SHAFT ~Y138700 3413785080 SHAFT,DRIVE Y138701~ 3473785090 BUSHING ASS'Y 8853713480 WIRE,THROTTLE 8-10 99311052012 SCREW,TAPPING 5X20 8-11 36832350200 WASHER,BRAKE SHAFT 8-16 5033738E20...
  • Page 14 TBC-420PF PARTS INFORMATION GEAR CASE, SAFETY GUARD • FIGURE 9 Page 12 www.tanaka-usa.com custsvc@tanaka-usa.com...
  • Page 15 TBC-420PF PARTS INFORMATION GEAR CASE, SAFETY GUARD • FIGURE 9 ITEM PART NUMBER DESCRIPTION COMMENTS 9-1-1 3003713490 CASE,GEAR ASS'Y ~U207604 3003758790 CASE,GEAR ASS'Y,(26mm) U207605~ 99461050254 BOLT,HEX HOLE,5X25S 99351024002 RING,STOP,C-24,IN 99350009002 RING,STOP,C9 99961609002 BEARING,BALL,#609Z 99961609000 BEARING,BALL,#609 3003330B20 CASE,GEAR 9-11 99051050103 BOLT,HEX.HOLE,5X10...
  • Page 16 TBC-420PF PARTS INFORMATION NYLON HEAD, TOOLS • FIGURE 10 ITEM PART NUMBER DESCRIPTION COMMENTS 10-0 7833384090 HEAD,BRAIN,(TH-97L) ~U207604 10-0 7833384290 HEAD,BRAIN (TH-97LN) U207605~ 10-1 7863384090 BODY,TH-97L,LN 10-2 7883367021 EYELET 10-4 7853384020 BASE,ADJUSTMENT TH97L 10-5 7933391020 SPRING,REEL,SILVER 10-6 79233004200 WASHER,REEL 10-7...
  • Page 17 TBC-420PF PARTS INFORMATION DECALS • FIGURE 11 ITEM PART NUMBER DESCRIPTION COMMENTS 11-1 9290440020 DECAL,SYMBOL(PF) 11-2 9064810020 PLATE,NAME,TBC-420PF 11-4 91505015200 DECAL,SYMBOL V244131~ 11-4 91505015200 DECAL,SYMBOL ~Y138700 11-5 95137503200 DECAL,PRO-FORCE B ~U207604 11-7 9293810020 DECAL,SYMBOL,PF 11-10 9193782020 DECAL,CAUTION A 11-18 9233728620...
