Owner's Manual
Model Number:
TBC-4001

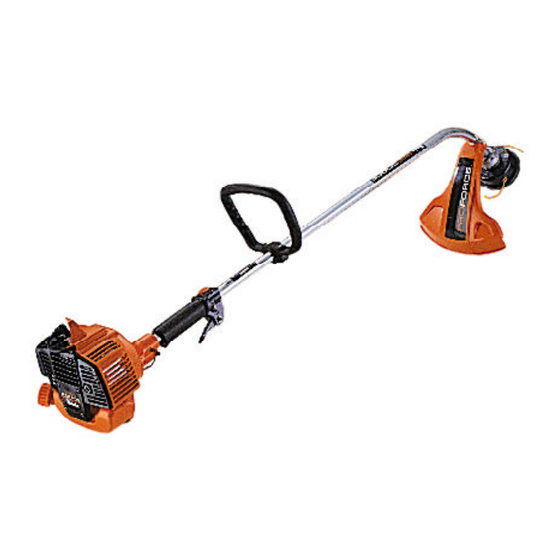

20cc Curved Shaft Grass Trimmer
Illustrated Parts Manual
Illustrated Parts Manual
P/N 27731
Rev 000
Date 8/2/99
Advertisement
Related Manuals for Tanaka TBC-4001
Summary of Contents for Tanaka TBC-4001
- Page 1 Illustrated Parts Manual Illustrated Parts Manual Model Number: TBC-4001 20cc Curved Shaft Grass Trimmer P/N 27731 Rev 000 Date 8/2/99...
- Page 2 TBC-4001 PARTS INFORMATION CYLINDER, PISTON, CRANKSHAFT • FIGURE 1 www.tanaka-usa.com Page 1 custsvc@tanaka-ism.com...
-
Page 3: Parts Information
790-00025-200 SPRING,PAWL 788-00025-200 PAWL,STARTER 992-01120-011 WASHER,12 991-11120-011 NUT,12 178-00024-80 CORD 167-21533-80 COIL,IGNITION ASSY www.tanaka-usa.com PARTS INFORMATION CYLINDER, PISTON, CRANKSHAFT • FIGURE 1 DESCRIPTION Page 2 TBC-4001 COMMENTS Includes cylinder gasket Includes ring and circlips Includes pawl and pawl spring custsvc@tanaka-ism.com... - Page 4 TBC-4001 PARTS INFORMATION STARTER, FUEL SYSTEM, MUFFLER • FIGURE 2 www.tanaka-usa.com Page 3 custsvc@tanaka-ism.com...
- Page 5 O-RING,P15 994-16050-601 SCREW,5x60WS 223-06500-90 PIPE,FUEL,ASS'Y 680-00731-201 CLIP 6.3 675-04042-80 FILTER,FUEL 591-00025-22 TANK 595-0650A-90 TANK CAP 659-00801-200 COLLAR 994-63050-185 BOLT,HEX 5X18PS 700-15007-01 PIPE,RUBBER 655-06400-200 CUSHION,TANK www.tanaka-usa.com PARTS INFORMATION STARTER, FUEL SYSTEM, MUFFLER • FIGURE 2 DESCRIPTION Page 4 TBC-4001 COMMENTS custsvc@tanaka-ism.com...
- Page 6 ITEM PART NUMBER 410-00025-900 CLEANER,AIR ASS’Y 424-00025-200 CAP,AIR CLEANER 446-00025-200 ELEMENT,CLEANER 470-00025-200 COLLAR 423-00025-800 BODY,CLEANER,AIR www.tanaka-usa.com PARTS INFORMATION DESCRIPTION Page 5 TBC-4001 AIR CLEANER • FIGURE 3 COMMENTS custsvc@tanaka-ism.com...
- Page 7 *GASKET, PUMP *DIAPHRAGM, PUMP *SCREEN, INLET 575-25152-80 BODY,PUMP *GASKET, DIAPHRAGM .78mm *DIAPHRAGM, METERING 476-25004-200 COVER,DIAPHRAGM 548-25101-200 SCREW,SET www.tanaka-usa.com PARTS INFORMATION DESCRIPTION Page 6 TBC-4001 CARBURETOR • FIGURE 4 COMMENTS *Contained in Carb Repair Kit P/N 650-25140-900 (Not available individually) custsvc@tanaka-ism.com...
- Page 8 ITEM PART NUMBER 289-00025-80 DRUM,CLUTCH 999-61620-101 BEARING,BALL #6201ZZ 331-00025-21 CASE,CLUTCH 990-73050-184 SCREW,TAPPING,5X18 599-0635A-200 CUSHION 994-61050-254 BOLT,HEX HOLE,5X25S 249-0630G-201 SPACER 380-0635D-200 BOLT,SPECIAL www.tanaka-usa.com PARTS INFORMATION DESCRIPTION Page 7 TBC-4001 FAN CASE, CLUTCH DRUM • FIGURE 5 COMMENTS custsvc@tanaka-ism.com...
- Page 9 TBC-4001 PARTS INFORMATION THROTTLE LEVER, HANDLE, DRIVE SHAFT, SAFETY GUARD • FIGURE 6 www.tanaka-usa.com Page 8 custsvc@tanaka-ism.com...
- Page 10 259-37101-200 BASE,STOP SWITCH 262-37101-200 SPRING,STOP SWITCH 177-37101-200 TERMINAL,EARTH B 176-37101-200 TERMINAL,EARTH A 991-86050-000 NUT,LOCK,5 993-55060-001 RING,STOP,6 832-37101-200 SPRING,RETURN 880-37101-200 LEVER,THROTTLE 994-31050-251 SCREW,S.,5X25 853-37101-200 SHAFT,LOCK BUTTON 958-37101-200 SPRING,LOCK,BUTTON 956-37101-200 BUTTON,LOCK 320-37651-200 SPACER www.tanaka-usa.com PARTS INFORMATION DESCRIPTION Page 9 TBC-4001 COMMENTS custsvc@tanaka-ism.com...
- Page 11 785-33810-20 BASE,ADJUSTMENT 793-33820-20 SPRING,REEL,BLUE 792-33810-20 WASHER,ADJUSTMENT 787-33810-20 REEL 787-33821-20 REEL,TH-97B/RB 673-35600-20 BALL,STEEL 790-33810-20 SLIDER,REEL 789-33810-20 CAP,BODY 315-33822-80 NUT, MOUNTING 813-20000-200 WRENCH,HEX,4 829-20000-80 SPANNER,COMBI,13X19 948-39907-200 BAG,TOOL www.tanaka-usa.com PARTS INFORMATION DESCRIPTION Page 10 TBC-4001 TOOLS, NYLON HEAD • FIGURE 7 COMMENTS custsvc@tanaka-ism.com...
- Page 12 ITEM PART NUMBER 906-0004C-20 DECAL,TBC-4001 919-37286-20 DECAL,CAUTION 915-05015-200 DECAL,SYMBOL 923-37400-200 DECAL,LEVEL 920-32466-20 DECAL,CAUTION www.tanaka-usa.com PARTS INFORMATION DESCRIPTION Page 11 TBC-4001 DECALS • FIGURE 8 COMMENTS custsvc@tanaka-ism.com...
- Page 13 T E C H N I C A L S E R V I C E Date: September 2000 Model & Serial: AST-210, TBC-2211 (1) TBC-4001, TBC-2251 (2) Reason: Some units experienced difficulty in properly feeding line. The spring within the head has been changed to ensure proper feeding. Part Number Changes:...
