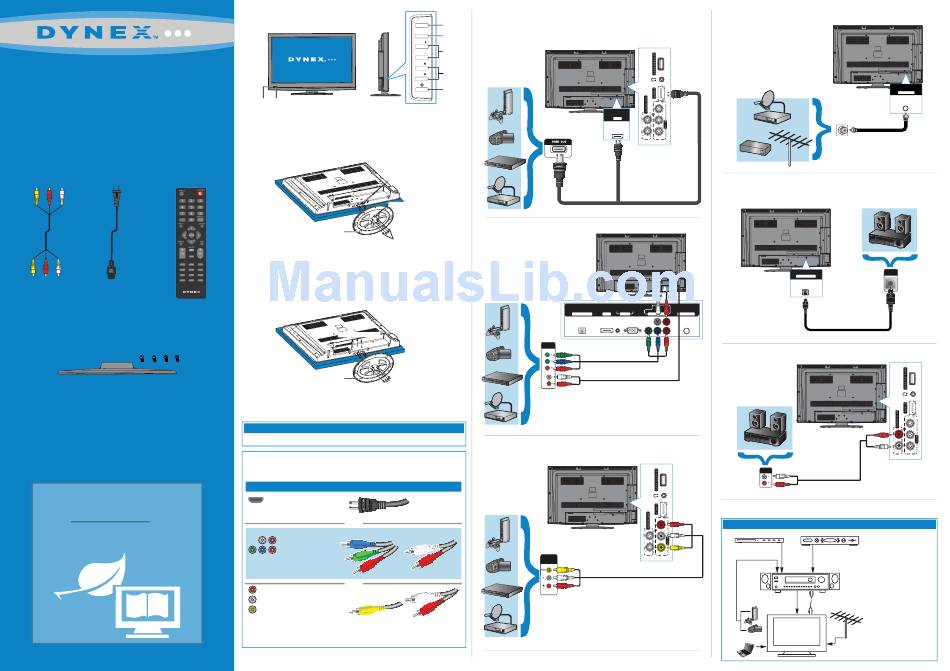

Dynex DX-32L230A12 Quick Setup Manual

32" LCD TV

QUICK SETUP GUIDE

DX-32L230A12
Composite AC power cord
cable
Remote control and
two AAA batteries
TV stand and four screws
WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, then click
Support & Service. Enter your model number
in the Search field, then press Enter.
Click Support/Downloads.
Front features
MENU
INPUT
VOL
VOL
Remote Power
control sensor indicator
Installing the stand
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damage and scratches.
2 Align the stand to the TV and secure it to the stand column with the screws
provided.
Locators
Locating grooves
Stand
M5 screws
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damage and scratches.
2 Remove the four screws that secure the stand to the stand column, then remove
the stand.
3 Remove the four screws that secure the stand column to your TV, then remove
the column.
Remove the screws
Stand
Remove the screws
4 Attach the wall-mount bracket to your TV using the mounting holes on the back
of your TV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use an HDMI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
Menu satellite receiver, or game station
Input
Using HDMI (best)
Volume
+/-
CH
Channel
CH
▼/▲
Power
button
Using component cables (better)
DIGITAL OUTPUT
COMPONENT
OUT
Using composite cables (good)
AUDIO/VIDEO
OUT
Connecting an antenna/cable wall jack
HDMI 1
Connecting a Home Theater System
OR
Using Digital audio
L AUDIO R
L R
AUDIO
AUDIO VGA Y P B P R
Y P
B P R
HDMI 1 PC IN COMPONENT IN ANT/ CABLE IN
Using Analog audio
AUDIO IN
Connecting a home theater system with multiple devices
Blu-ray player/DVD player/VCR
Game console
or camera
Computer
ANT/CABLE IN
OPTICAL
AUDIO IN
DIGITAL OUTPUT
Cable or satellite TV box
AV receiver
We recommend that you connect
the AV receiver's HDMI OUT jack
to your TV's HDMI IN jack.
Audio cable
(optional)
Antenna or
cable TV
(no box)
