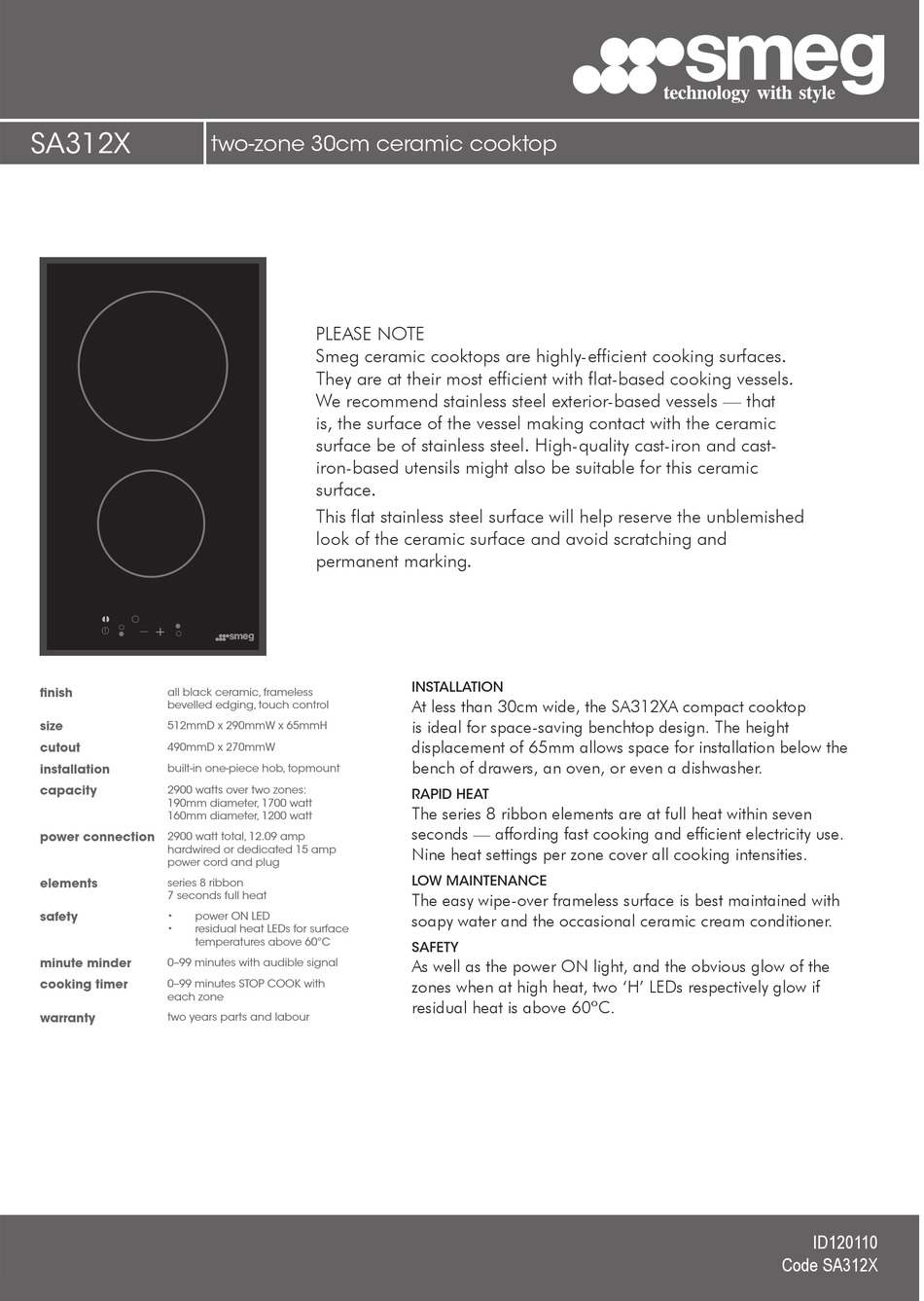

Smeg SA312X Brochure

SA312X


 
finish
all black ceramic, frameless
bevelled edging, touch control
size
512mmD x 290mmW x 65mmH
cutout
490mmD x 270mmW
installation
built-in one-piece hob, topmount
capacity
2900 watts over two zones:
190mm diameter, 1700 watt
160mm diameter, 1200 watt
power connection
2900 watt total, 12.09 amp
hardwired or dedicated 15 amp
power cord and plug
elements
series 8 ribbon
7 seconds full heat
safety
• power ON LED
• residual heat LEDs for surface
temperatures above 60°C
minute minder
0–99 minutes with audible signal
cooking timer
0–99 minutes STOP COOK with
each zone
warranty
two years parts and labour
two-zone 30cm ceramic cooktop
PLEASE NOTE
Smeg ceramic cooktops are highly-efficient cooking surfaces.
They are at their most efficient with flat-based cooking vessels.
We recommend stainless steel exterior-based vessels — that
is, the surface of the vessel making contact with the ceramic
surface be of stainless steel. High-quality cast-iron and cast-
iron-based utensils might also be suitable for this ceramic
surface.
This flat stainless steel surface will help reserve the unblemished
look of the ceramic surface and avoid scratching and
permanent marking.
INSTALLATION
At less than 30cm wide, the SA312XA compact cooktop
is ideal for space-saving benchtop design. The height
displacement of 65mm allows space for installation below the
bench of drawers, an oven, or even a dishwasher.
RAPID HEAT
The series 8 ribbon elements are at full heat within seven
seconds — affording fast cooking and efficient electricity use.
Nine heat settings per zone cover all cooking intensities.
LOW MAINTENANCE
The easy wipe-over frameless surface is best maintained with
soapy water and the occasional ceramic cream conditioner.
SAFETY
As well as the power ON light, and the obvious glow of the
zones when at high heat, two 'H' LEDs respectively glow if
residual heat is above 60ºC.
ID120110
Code SA312X
