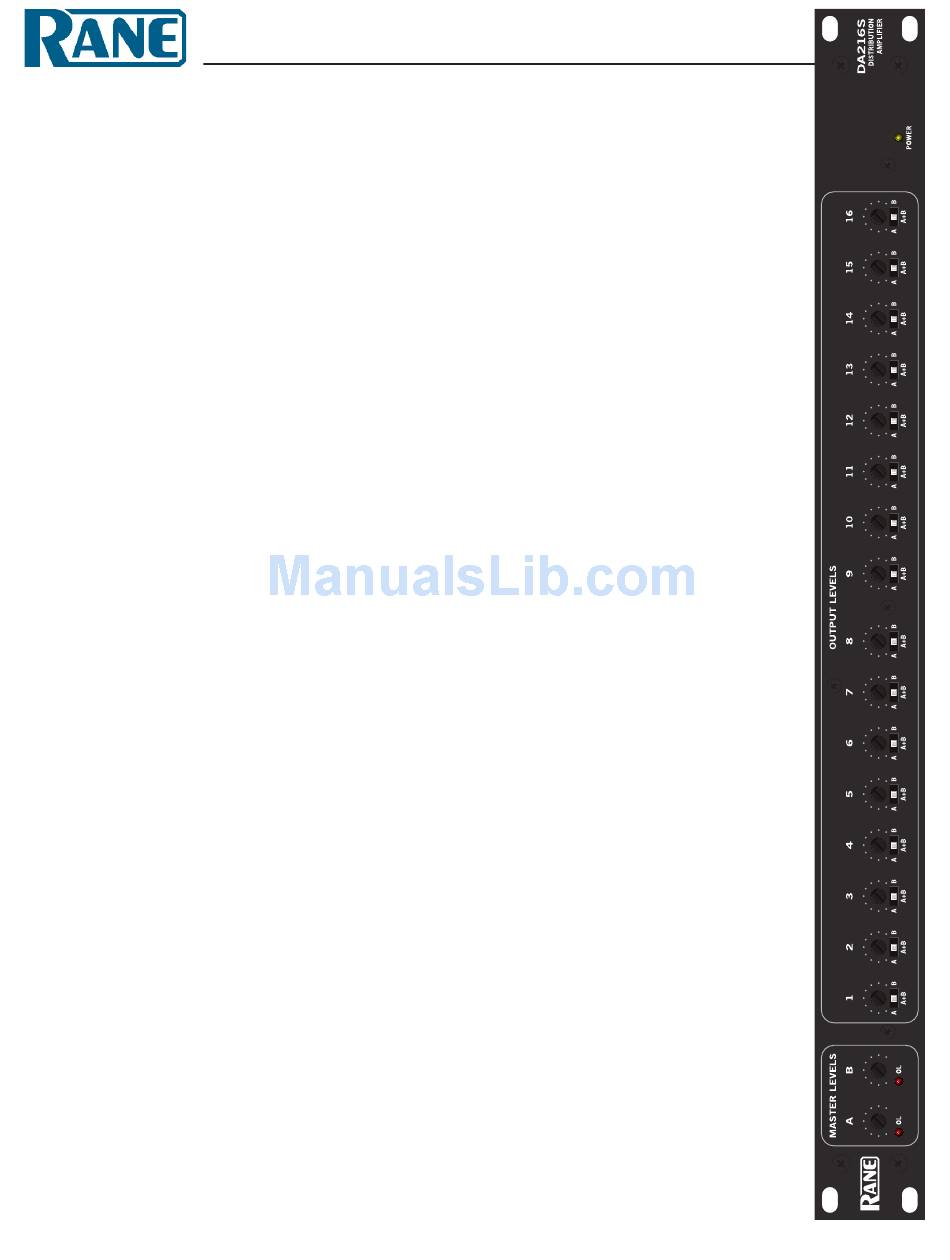

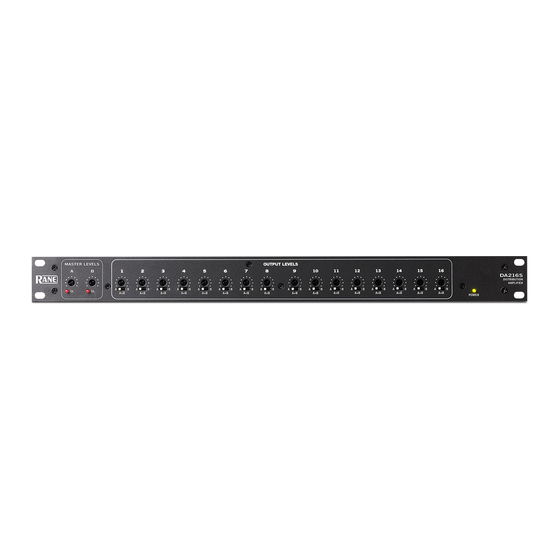

- Page 1 DA216S DISTRIBUTION AMPLIFIER...
-
Page 2: Important Safety Instructions
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. -
Page 3: Distribution Amplifier
Input driving all Outputs, the same DA216S. Never engage the phantom voltage when using an unbalanced mic—doing so may damage the mic. If the mic is set all of the switches to the appropriate Input (A or B). - Page 4 3 Output Assign switches: Each switch has three positions, which assign the Output to the A-Input, the B-Input, or A+B (sum). This powerful feature allows the DA216S distribution amplifier to be set up as 1 Input to 16 Outputs. Or 1 stereo Input pair to 8 stereo Output pairs. Or 1 Input to 3 Outputs, with the other Input to 13 Outputs. And so on.
- Page 5 Connect balanced sources to the respective “+” and “–”terminals, and tie the shield to chassis ground. For unbalanced sources use two-conductor shielded cable as described in DA216S Connection on page Manual-4. 2 Output Euroblocks 1-16: Balanced Outputs are provided for each of 16 channels.
- Page 6 (+) for (–) to correct for the inversion. This nets a total of 32 Outputs! ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5000 USA TEL 425-355-6000 FAX 425-347-7757 WEB rane.com Manual-4...
