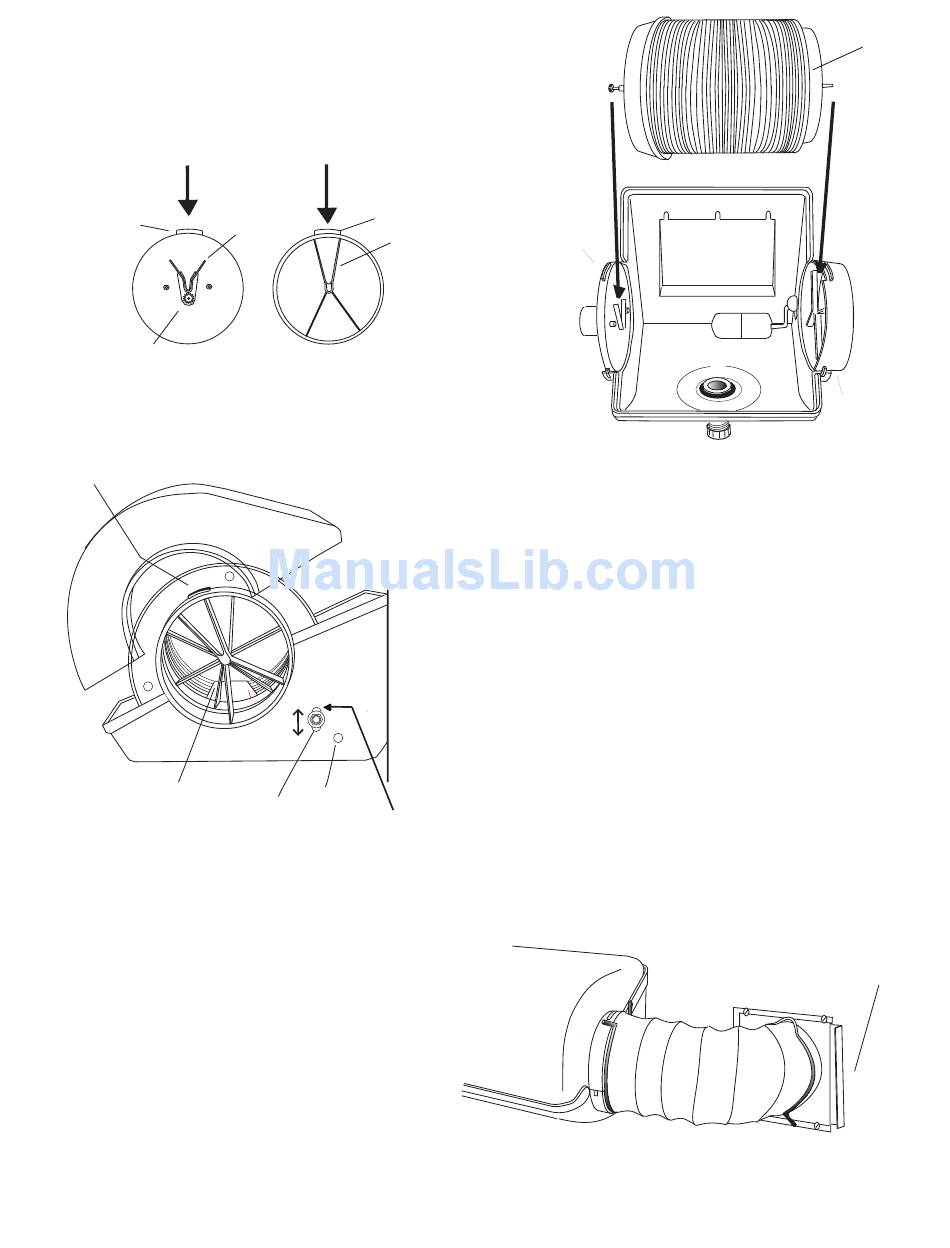

6. Installing the disk wheel

• Using the tabs as indicators, lower the disk wheel assembly
into the V-guides on the inlet and motor plates. Ensure that
the inlet end of the axle is seated in the bearing at the bottom
of the V-guide and that the gear on the other end of the
axle is engaged with the motor gear.
tab
motor gear
ensure tabs on inlet and motor plate
fit into slots in lid flanges
water
adjustment

8. Connecting the air supply

• Use one of the supplied nylon tie-wraps to secure the
flex ducting to the hot air take-off.
• Use the remaining tie-wrap to secure the
flex duct to the humidifier's inlet.
• For maximum efficiency, do not let the flex duct
sag. If you need to trim the length of the flex duct
ensure that you cut the ends square.
• If the humidifier is located beyond 3' from the hot air
take-off, it will be necessary to buy a longer
flex duct at your local hardware store.
• Ensure damper is set in the OPEN position.
tab
v-guide
7a
float
overflow
hole*
stop
slot
*punch out if required
v-guide Motor Plate
7. Installing the lid and adjusting
the water level
• Fit the lid onto the basin.
• Turn on the water supply and check for any leaks.
• The float assembly should be adjusted so that the water fully
covers the disks as illustrated in 7a. This will ensure maximum
humidity output and will minimize calcium build up.
Note - look through the inlet to see the water level.
• Adjust the float as required. Do Not lift installed float against
stop or damage to float seal can occur.
• Secure the float adjustment nut with a 9/16" wrench.
• As an additional measure, you can fit an overflow kit to the humidifier.
For more information visit our web site at
www.desertspringproducts.com
disk wheel
Inlet
damper shown in
closed position
