1. Selecting a location

• This humidifier is to be mounted on the COLD AIR RETURN
(preferably on the narrow side) of a forced air heating system.
If the humidifier must be mounted on a plenum/duct which is over
12" wide or on non-metal duct, the plenum/duct must be reinforced and/or
the humidifier must be supported by other means.
• Ensure that there is sufficient clearance for the humidifier, water
supply, and air supply ductwork. If clearance problems exist with
utilities, qualified tradespeople should be called.
• Air is supplied to the humidifier with a 3' flexible duct connected to
the air take-off (with sliding damper) mounted on the HOT AIR
SUPPLY coming out of the furnace. (Check clearance to Air conditioner coil)
• Follow the instructions on the humidifier TEMPLATE (Page 7)to locate
and cut holes for the humidifier and take-off.
• Note that the top of the round take-off opening should be a minimum of
1" higher than the rectangular humidifier opening (max. 8'). Mount the take-off
so that the damper can be easily opened and closed.

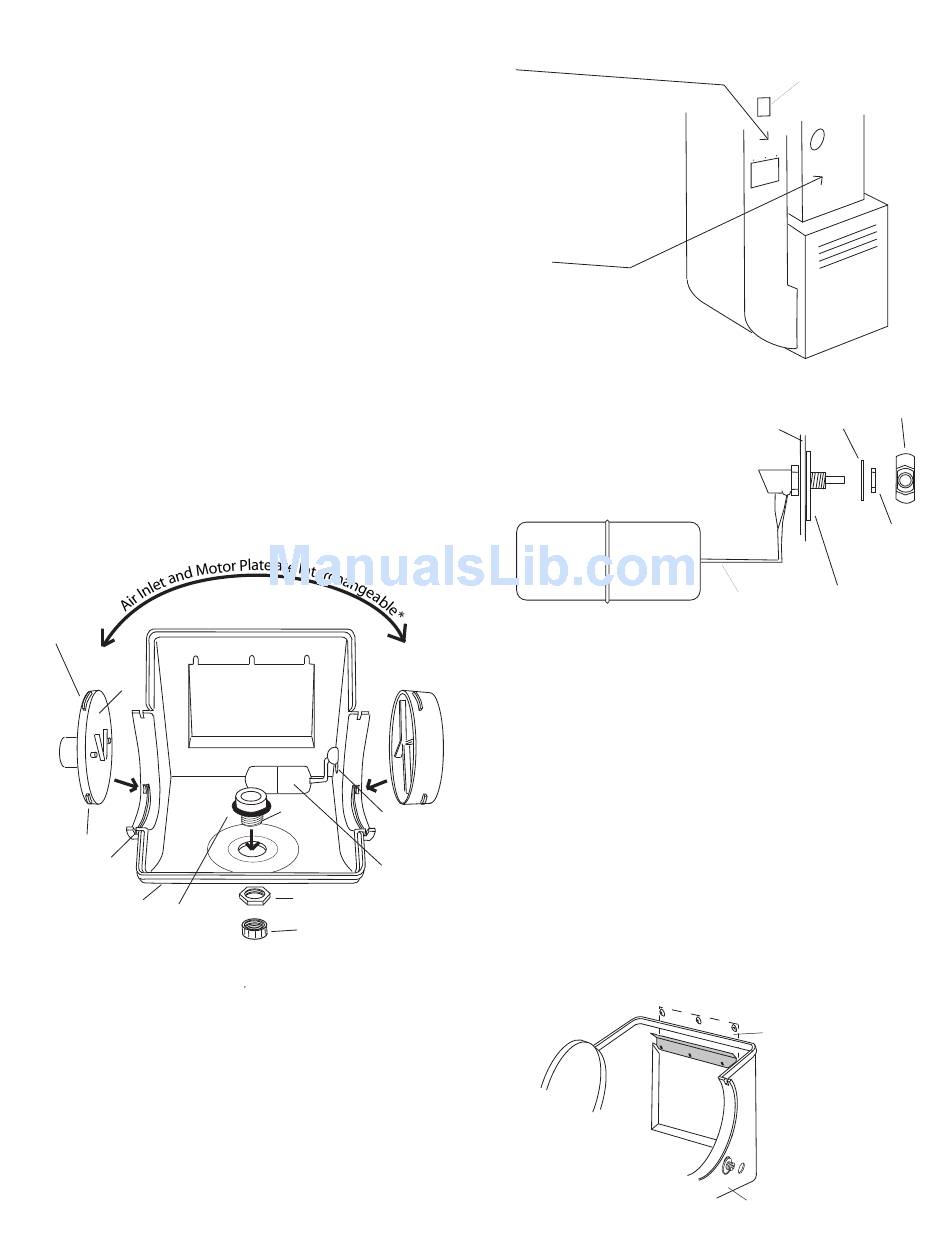

2. Humidifier assembly
• Install the float into the slot in the side of the basin, ensuring that
the float seal is against the outside wall of the basin.
Hand tighten the float adjustment nut.
lid tab
motor
plate
basin tab
slot
basin
drain
washer
*interchangeable: install air inlet on the side closest
to the hot air supply take-off.

3. Hanging the basin

• Hang the basin from the mounting hanger on
the COLD AIR RETURN. See template for instructions to
mount the hanger. (Page 7)
air inlet
drain
overflow hole
float
retaining nut
cap
Float Assembly
• Install the drain into the bottom of the
basin and finger tighten retaining nut.
Note - Teflon tape is recommended for these
connections.
After ensuring that the drain is centered,
tighen securely but Do Not over tighten.
• Next install the cap. Optionally, connect a garden
ball valve and a length of garden hose which
extends to a floor drain, or an Auto Flush unit.
• The humidifier can be configured with either
a right or left air supply. This will depend
upon the layout of your furnace.*
• Snap the motor plate and inlet into the basin.
Ensure that the basin tabs on these parts fit
into the corresponding slots in the basin. To
remove the motor plate and inlet, squeeze the
lower tab with pliers and pull upwards.
typical
humidistat
location
furnace
slot in
Blue basin
basin
wall washer
float
adjustment
nut
stem
Rubber float
Seal
hanger mounts
on inside
of the cold
air plenum
(humidifier
shown with
inlet removed
for clarity)
basin
3
