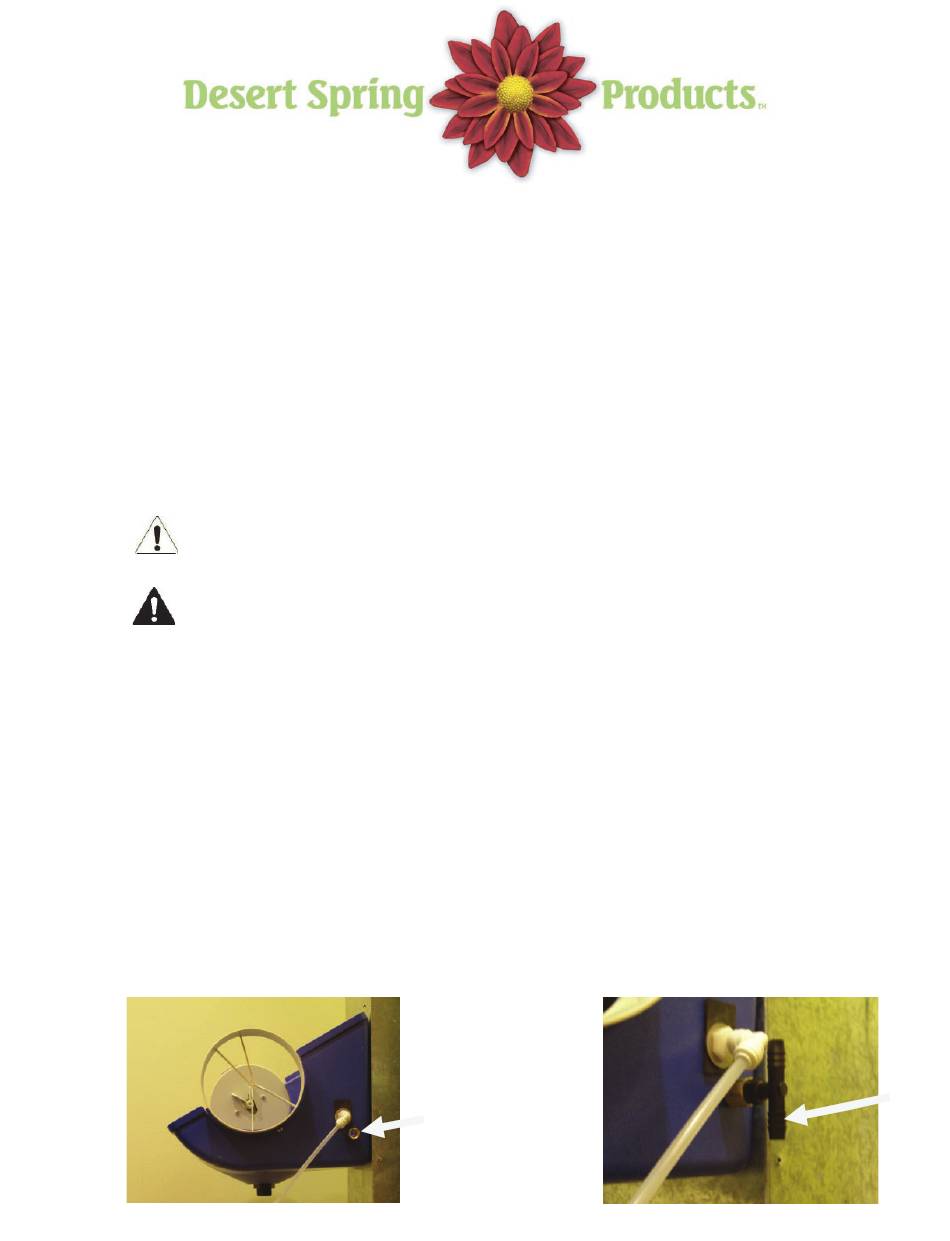

DS-AFX AutoFlush - Installation and Operation Guide
Designed For Installation With All Desert Spring Rotary Disc Humidifier Models.
COMPONENTS INCLUDED
1- AutoFlush Timer/Pump
1- Brass adapter
If you discover missing or damaged components, please call us toll free at 1-888-486-4324 or email
us at info@desertspringproducts.com.
REQUIRED TOOLS
Cutting Tool
CAUTION: This device requires a floor drain or must be used in conjunction with a condensate pump.
This product is designed only for the intended use as outlined in the manufacturer's
instructions.
WARNING: SHUT OFF THE WATER SUPPLY TO YOUR HUMIDIFIER BEFORE
INSTALLING THE AUTOFLUSH SYSTEM. ALL PLUMBING AND ELECTRICAL
CONNECTIONS MUST CONFORM TO LOCAL CODES.
NOTE:
You will require a 110/120-volt outlet within 6 feet of the unit.
INSTALLATION INSTRUCTIONS
NOTE: Before installing AutoFlush, thoroughly inspect humidifier basin and disc wheel.
Remove all scale and other debris that may clog-up AutoFlush pump and prevent a proper drain.
STEP 1
Shut off the water supply to your humidifier and drain the basin if necessary.
STEP 2
Locate the overflow knock-out below the float opening on the right in-side of the humidifier basin.
Using a screwdriver and hammer, tap the plastic knock-out. Run the edge of the screw driver
around the opening to remove any excess material.
Figure 1.
1 – 24VAC Plug-in Transformer
1-3/8" Plastic Tee
Brass Adapter
(Use to tap the kocked
out opening)
1- Vortex Inhibitor - (Blue Plastic)
1 - Tie wrap
8 ft. – 3/8" Drain Hose
Figure 2.
Tee
Fitting
