DECK MOUNT
TUB FILLERS
COLONY DIVERTER & PERSONAL
SHOWER TRIM KIT
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
M918075-0070A

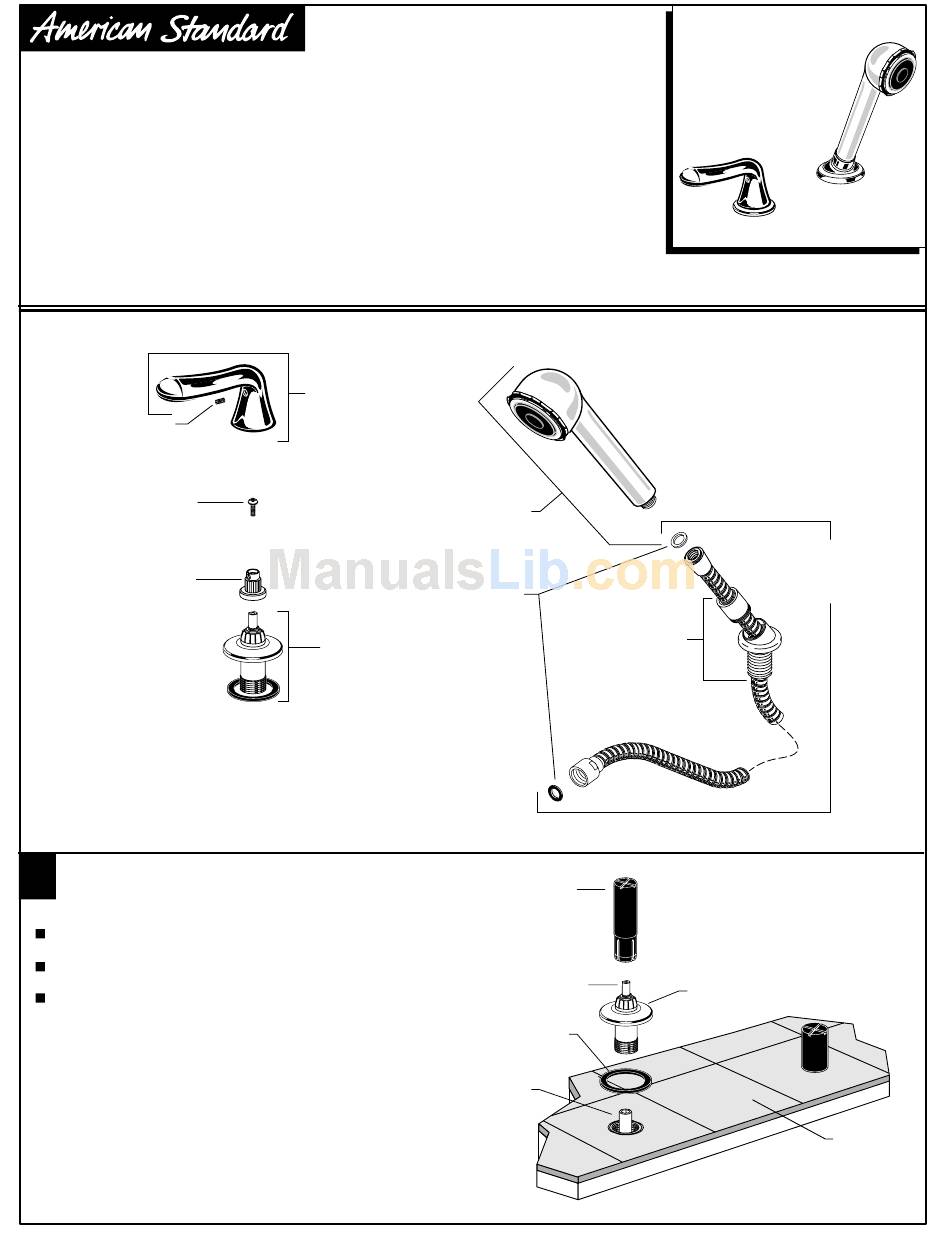

HANDLE SCREW
M918504-0070A
ADAPTER SCREW
M918021-0070A
ADAPTER
1
INSTALL DIVERTER VALVE TRIM
REMOVE THE DIVERTER GUARD.
Place the ESCUTCHEON SEAL over the DIVERTER BODY.
Thread the VALVE ESCUTCHEON into the DIVERTER BODY.
Align the HANDLE STEM with the SLEEVE as necessary.
Thread the VALVE ESCUTCHEON into the BODY until the
ESCUTCHEON contacts the finished deck.
Installation
Instructions
T990.5XX
M916803-0070A
METAL LEVER
HANDLE
M961463-0020A
HAND SHOWER
033760-0070A
HAND SHOWER
SEAL KIT
M961460-0020A
VALVE
ESCUTCHEON
M961464-0020A
HAND SHOWER
HOLDER
DIVERTER
GUARD
HANDLE
STEM
ESCUTCHEON
SEAL
SLEEVE
Certified to comply with ANSI A112.18.1
U.S. Patent No. D403,750
M 9 6 8 7 6 2
028667-0020A
HAND SHOWER
HOSE AND SEALS
(AVAILABLE WITH R890)
VALVE
ESCUTCHEON
FINISHED
DECK
