350 East Plumeria Drive
San Jose, CA 95134
USA
July 2011
202-10919-01
v1.0

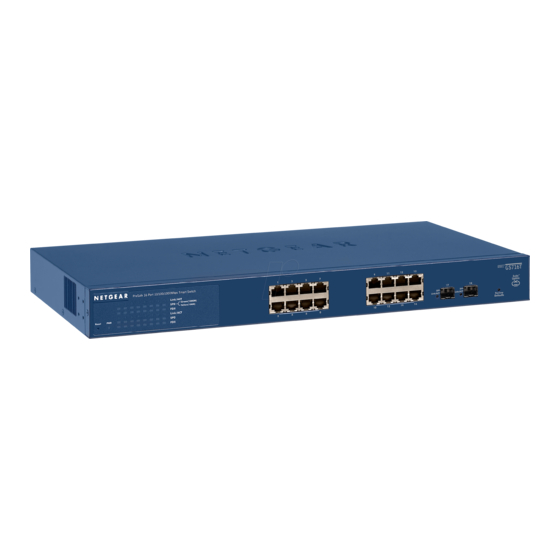

GS716T and GS724T Smart
Switches
Ethernet Audio Video
Administration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS724T and is the answer not in the manual?

Questions and answers

Related Manuals for NETGEAR GS724T

Summary of Contents for NETGEAR GS724T

  • Page 1 GS716T and GS724T Smart Switches Ethernet Audio Video Administration Guide 350 East Plumeria Drive San Jose, CA 95134 July 2011 202-10919-01 v1.0...

  • Page 2: Technical Support

    NETGEAR, Inc. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online, visit us at http://support.netgear.com.

  • Page 3: Table Of Contents

    Contents Chapter 1 Ethernet Audio Video Multiple Registration Protocol Configuration ......5 MRP Configuration ......... . 6 MRP Port Settings .

  • Page 4: Chapter 1 Ethernet Audio Video

    Ethernet Audio Video The Ethernet Audio Video (Ethernet AV or EAV) features available on the GS716T and GS724T Smart Switches provide audio-video quality of service to Ethernet to enhance wire-line networking for digital entertainment content streaming. The GS716T and GS724T switches support the following EAV features: •...

  • Page 5: Mrp Configuration

    GS716T and GS724T Gigabit Smart Switches MMRP allows for the propagation MAC address information in the network, and allows for the registration and deregistration of both individual MAC address information and group MAC address membership. End stations may request to join or leave a multicast group, or to register an individual MAC address with a specific VLAN.
  • Page 6 GS716T and GS724T Gigabit Smart Switches To configure the MRP settings: Enable or disable MMRP globally on the switch. MMRP provides an application to register MAC address information. The default mode is Disable. Enable or disable MSRP globally on the switch. MSRP provides an application to register bandwidth requirement for a given AV stream.

  • Page 7: Mrp Port Settings

    GS716T and GS724T Gigabit Smart Switches Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value of the switch. If you make any changes to the page, click Apply to apply the change to the system.

  • Page 8: Mmrp Statistics

    GS716T and GS724T Gigabit Smart Switches c. Specify the value, in centiseconds, of the MRP Join Timer. The range is 10 to 100 centiseconds, and the default value is 20. d. Specify the value, in centiseconds, of the MRP Leave Timer. The range is 10 to 600 centiseconds, and the default value is 120.

  • Page 9: Msrp Statistics

    GS716T and GS724T Gigabit Smart Switches Table 1-1. Field Description Global MMRP Statistics Frames Received Shows the number of MMRP frames which were received on the switch. Bad Header Shows number of MMRP frames with bad headers which were received on the switch.
  • Page 10 GS716T and GS724T Gigabit Smart Switches The following table describes the fields on the MSRP Statistics page. Table 1-2. Field Description Global MSRP Statistics Shows the number of messages that failed to be added to the Message Queue Add queue.

  • Page 11: Msrp Reservation Parameters

    GS716T and GS724T Gigabit Smart Switches Table 1-2. Field Description Bad Header Displays the number of MSRP frames with bad header which were received on the interface. Bad Format Displays the number of MSRP frames with bad PDUs body format which were received on the interface.
  • Page 12 GS716T and GS724T Gigabit Smart Switches To search for a specific entry in the Stream Status Parameters table: To search for stream status by interface, select Interface from the drop-down menu and enter the port ID (for example, g5) in the available field.

  • Page 13: Qav Parameters

    GS716T and GS724T Gigabit Smart Switches Table 1-3. Field Description Failure Bridge MAC Identifies the MAC address of the switch where the failure occurred. Stream Age The time, in seconds, since the stream destination address was added to the Dynamic Reservations Entries table. A value of zero indicates the destination address has not been added to the table.

  • Page 14: Msrp Streams Information

    GS716T and GS724T Gigabit Smart Switches Class A Delta bandwidth is the additional bandwidth represented as a percentage of port transmit rate which can be reserved for the traffic class A and traffic class B. Class A traffic has a higher priority. The range is 0–100.
  • Page 15 GS716T and GS724T Gigabit Smart Switches The following table describes the fields on the MSRP Stream Information page. Table 2: Field Description Stream ID A 16-bit unsigned integer value, Unique ID, used to distinguish among multiple streams sourced by the same system.

  • Page 16: 802.1As

    GS716T and GS724T Gigabit Smart Switches Table 2: Field Description TSpec Max Interval Frames The 32-bit unsigned Frame Rate component is used to allocate resources and adjust queue selection parameters in order to supply the quality of service requested by an MSRP Talker Declaration. It represents the maximum number of frames that the Talker may transmit in one second.
  • Page 17 GS716T and GS724T Gigabit Smart Switches To display the 802.1AS Configuration page click the Switching tab, then click 802.1AS > Basic > 802.1AS Configuration. To configure the global 802.1AS settings on the switch: Enable or disable 802.1AS globally on the switch. The default mode is Enable.

  • Page 18: 802.1As Port Settings

    GS716T and GS724T Gigabit Smart Switches Table 1-1. Field Description Steps to Best Clock Shows the number of links in the path from the Best Clock to this time-aware bridge. If this time-aware bridge is the best, the value is zero.

  • Page 19: 802.1As Statistics

    GS716T and GS724T Gigabit Smart Switches considered to not be exchanging peer delay messages with its neighbor. The default value is 3. The range is 0–65535. View the following non-configurable fields: • The Port Role specifies the 802.1AS role of the interface. The possible roles are as follows: •...
  • Page 20 GS716T and GS724T Gigabit Smart Switches The following table describes the information the 802.1AS Statistics page displays. Table 1-2. Field Description Interface Identifies the interface associated with the rest of the 802.1AS statistics in the row. Sync Tx Displays the total number of SYNC packets transmitted without error.
  • Page 21 GS716T and GS724T Gigabit Smart Switches Table 1-2. Field Description Announce Rx Displays the total number of ANNOUNCE packets received without error. Pdelay Req Tx Displays the total number of PDELAY_REQ packets transmitted without error. Pdelay Req Rx Displays the total number of PDELAY_REQ packets received without error.

  • Page 22: Index

    Index Numerics statistics streams 802.1AS Multiple Registration Protocol global settings port role port settings statistics port role, 802.1AS Precision Time Protocol audio video bridging definition global settings Class A traffic Class B traffic clock, grandmaster streams, MSRP failure codes talker, MSRP technical support trademarks grandmaster clock...
