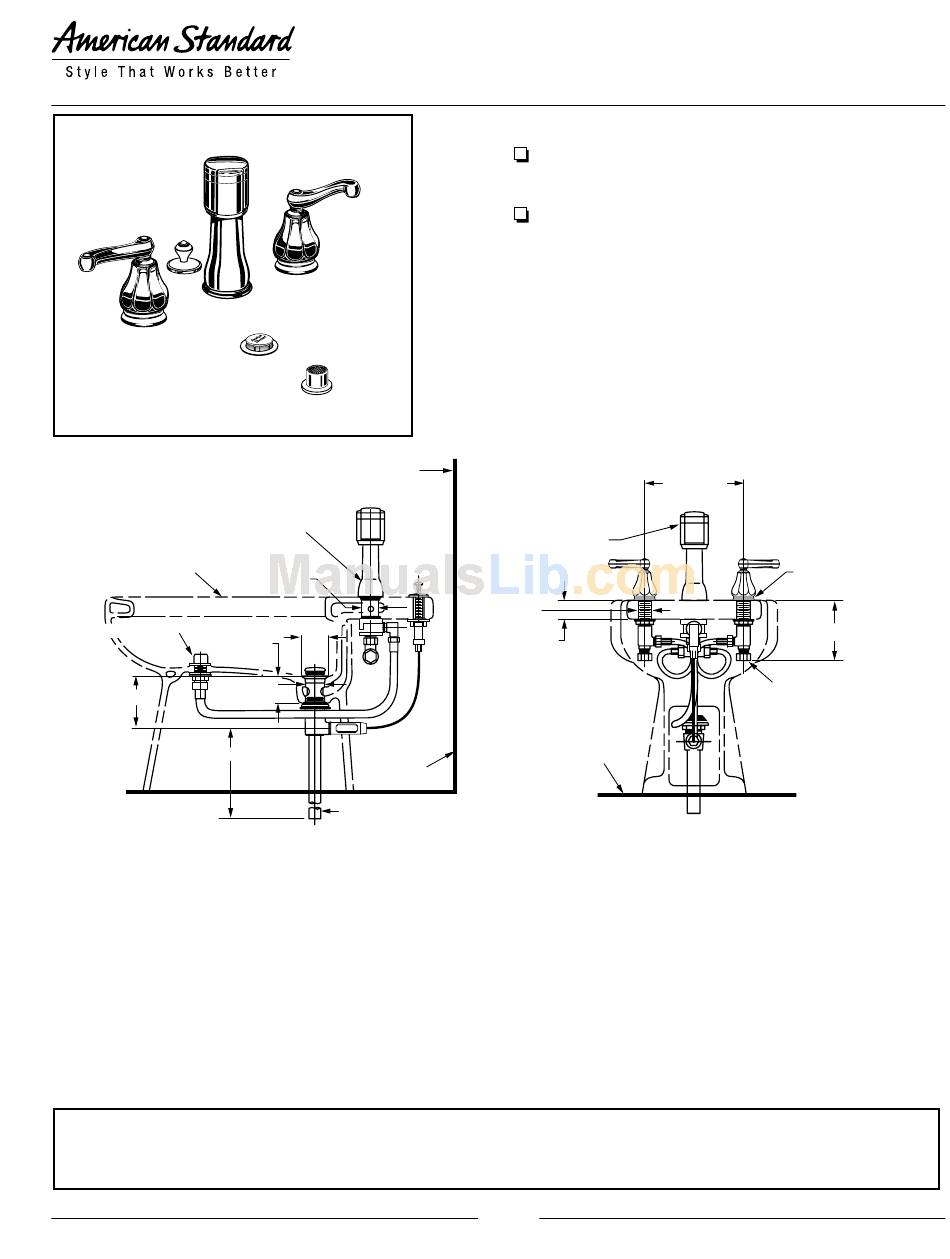

American Standard Dazzle Fixture-Mounted Bidet Fittting 6028.400 Specification Sheet

6028.401 Shown
TRANSFER VALVE (FOR FLUSHING
RIM OR SPRAY)
BIDET OUTLINE
IS SYMBOLIC
ADJ. 1-1/4
DOUCHE SPRAY
TO 2-1/4
3-7/8
5-1/2

GENERAL DESCRIPTION:

Cast brass valve bodies. 1/4 turn washerless ceramic disc
valve cartridges - reversible for use with either lever or cross
handles. Diverter controls water flow between douche spray
and flushing rim. Douche spray has built-in spray height
adjustment. 20 " long (500mm) flexible stainless steel cable is
pre-assembled to lift rod assembly. Metal Speed Connect™
drain body with 1-1/4 " (32mm) tail piece.
SUGGESTED SPECIFICATION:
Two handle deck-mount bidet fitting with matching pop-up drain shall feature solid brass construction. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges that are reversible for use with cross or lever handles. Shall also feature a metal drain
body with stainless steel cable actuation. Fitting shall be American Standard Model #6028.40_.___.
© 2008 AS America Inc.
FINISHED
WALL
7/8 DIA.
2-1/8
DIA.
1-3/8
DIA.
FINISHED
WALL
1-1/4 O.D. TAILPIECE
FIXTURE-MOUNTED BIDET FITTING
MODEL NUMBER:
6028.401 Fixture-Mounted Bidet Fitting
Vacuum breaker. Metal Speed Connect™ Pop-up drain.
Metal lever handles.
6028.400 Fixture-Mounted Bidet Fitting
Less vacuum breaker. Metal Speed Connect™ Pop-up
drain. Metal lever handles.
203mm - 305mm
DIVERTER AND
VACUUM BREAKER
ASSEMBLY
(C)
1-3/16 DIA.
1-1/4 MAX.
FINISHED
FLOOR

PRODUCT FEATURES:

Brass Construction:
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges:
smooth handle operation and drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer Parts - installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Choice of Finishes:
and Satin Nickel (295) finishes.
D19
DAZZLE
(8 TO 12)
FLEXIBLE
57mm
(H) (2-1/4)DIA.
4-1/4
FOR GROUND JOINT
CONNECTION OR 1/2"
O.D. SLIP (INLETS)
REAR VIEW WITH
WALL REMOVED
Durable - Excellent in high use
Assures a lifetime of
Available in Polished Chrome (002)
