Coleman SCREENED WEATHERMASTER 9232C379 Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite
clear of rocks, branches
and other hard or sharp
objects.
– Do not set up your tent
under trees.
– For best results in windy
conditions, position the
end of tent into the wind.
1 Layout & Positioning of Tent
– Layout and position tent with screen room
facing desired direction. (illus. 1)
– Stake down tent, starting with
the corners. Do not stretch
too tight. Angle the stakes
slightly toward the tent.
(illus. 2) Keep the floor taut.
– Stake down the remainder
of the stake loops.
– Unzip the door.
2
Assemble & Place Roof Poles
– Assemble all shock-corded
roof poles. When assembled will
form a continuous arch with both
ends pointing down. (illus. 3)
– Select center roof poles with
red stickers, then insert through
the two center roof sleeves and
the roof pole sleeve at the front
of the screen room. (illus. 4)
– Select end roof pole, with blue
sticker, then insert through the roof
sleeve at end of the tent. (illus. 4)
SCREENED WEATHERMASTER
Instructions apply to Part Number 9232C379

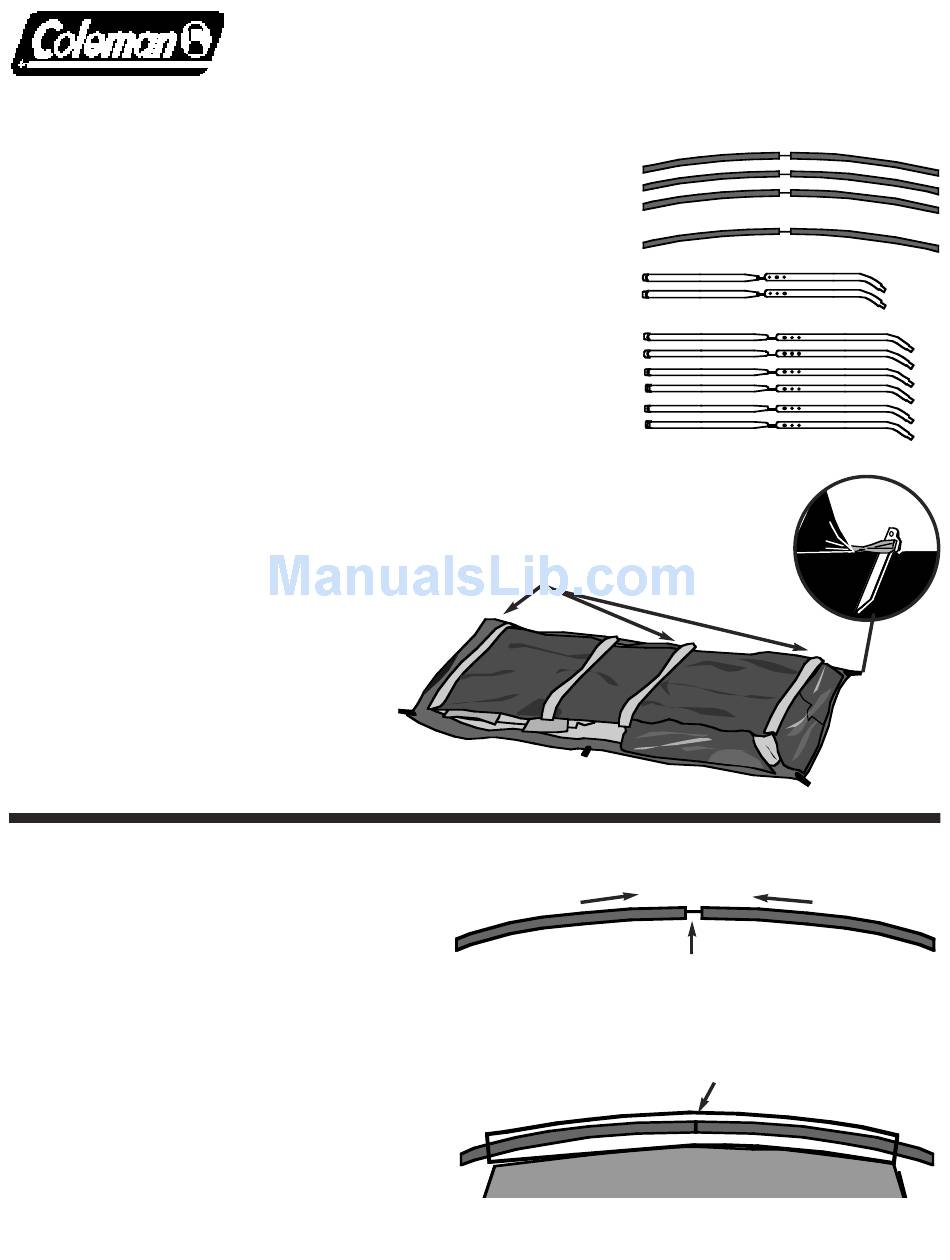

POLE ASSEMBLY PARTS
(3) Center Curved Roof Poles
(Red Sticker) Part No. 9232C372
(1) Rear (Blue Sticker)
Part No. 9232C373
(2) Rear Brace Poles
(Blue Sticker) Part No. 9232C375
(6) Center Upright Poles
(Red Sticker) Part No. 9232C374
Rainfly Part No. 9232C371
illus. 1
properly staked
Roof sleeve
Forms an arch
Shock-corded poles
illus. 3 Curved roof pole assembly.
Roof pole sleeve
illus. 4
Curved roof pole system shown
inserted through pole sleeve.
™ 17'X9'
illus. 2
Stake loops
Front of
screen
door
