Brookstone DV MicroCam User Manual

Brookstone DV MicroCam User Manual

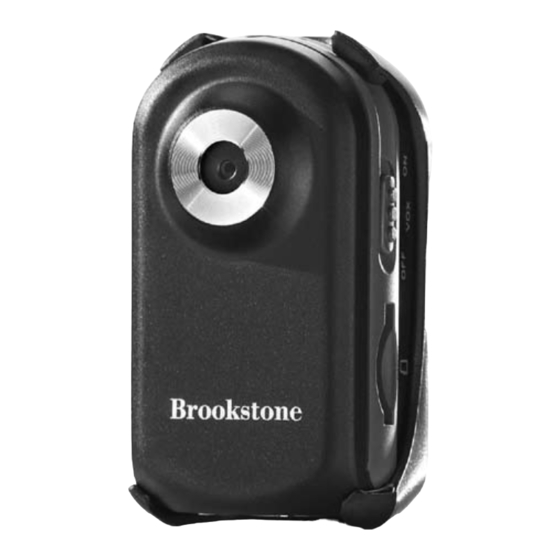

Thumb-sized—goes anywhere, captures any moment
Hide thumbs
Table of Contents

Advertisement

Quick Links

DV MicroCam
Thumb-sized—
goes anywhere,
capTures any momenT

Advertisement

Table of Contents
loading

Related Manuals for Brookstone DV MicroCam

Summary of Contents for Brookstone DV MicroCam

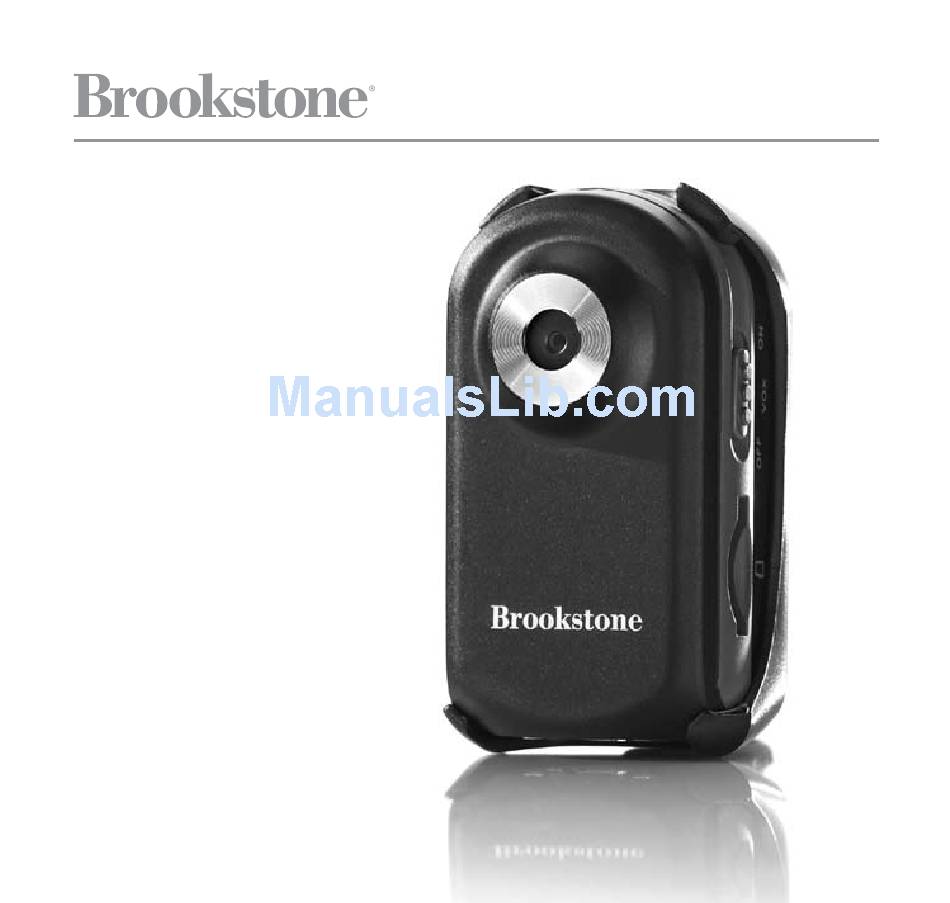

  • Page 1 DV MicroCam Thumb-sized— goes anywhere, capTures any momenT...

  • Page 2: Table Of Contents

    Table of conTenTs Cautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Location of Parts and Controls .

  • Page 3: Save These Instructions

    baTTeRY PRecaUTIon Dispose of this unit as you would a battery . safeTY aPPRoval InfoRmaTIon This product meets the requirements of FCC and CE, and is granted the FCC and CE certification . It is authorized to bear the FCC and CE mark . This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules .

  • Page 4: Location Of Parts And Controls

    locaTIon of PaRTs and conTRols Power On/Off Switch microSD Card Slot Record Button Green Indicator Light Snapshot Button Lanyard Ring Lens Red Indicator Light VOX On/Off Switch 10 . Mini USB Port...

  • Page 5: Accessories

    accessoRIes Multi-Bracket Clip Bracket USB Cable Pouch USB Adapter Also includes: Micro SD Card (not shown) Software CD (not shown)

  • Page 6: Charging The Battery

    oPeRaTIon charging The baTTery Plug the USB cable (included) into the USB port on the video camera, and then into a USB 2 . 0 port on your computer . The red indicator light will blink while the internal rechargeable battery is charging .

  • Page 7: Inserting The Microsd Card

    inserTing The microsd card Insert the included microSD card into the video camera as depicted under the card slot . Press the card all the way in until you hear a click and the card is held securely . To remove the microSD card, press it in until you hear a click and the card ejects enough for you to grasp and pull it from the video camera .

  • Page 8: Recording A Voice Activated Video (Vox)

    recording a voice acTivaTed video (voX) Slide the VOX switch to ON and slide the POWER switch to ON . Press the RECORD button . The video camera will go into STANDBY mode . The video camera will start to record continuously when a voice or sound 65 decibels or higher trips its automatic recording device .

  • Page 9: Taking A Snapshot

    Taking a snapshoT Slide the POWER switch to ON . The red indicator light will illuminate . Press the SNAPSHOT button once to take a still photo . The red indicator light will go off and the green indicator light will blink once . The snapshot will be saved to the microSD card for you to download to your PC .

  • Page 10: Checking The Memory

    checking The memory Slide the POWER switch to ON and press the SNAPSHOT button for 4 seconds . The green indicator light will blink between 1 and 4 times . 1 time means the memory is at near-empty capacity and 4 times means the memory is at near-full capacity . saving and playing a File Connect the video camera to your PC via the included USB cable and slide the POWER switch to ON and VOX switch to OFF .

  • Page 11: Care And Maintenance

    note: • You can only copy the data from the video camera when the POWER switch is ON and the VOX switch is OFF . • The video camera can be used as a PC camera when the POWER switch is ON and the VOX switch is also on .

  • Page 12: Specifications

    sPecIfIcaTIons Pixel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000000 color CMOS View Angle .
  • Page 13 sPecIfIcaTIons (continued) Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . Windows 2000/XP/Vista ®...

  • Page 14: Troubleshooting

    TRoUbleshooTIng problem cause soluTion The unit will Card is full . Delete files off card to create space . not record . Card not Format card . formatted correctly . Will not work Low battery . Charge the unit before first use . right out of box .
  • Page 15 TRoUbleshooTIng problem cause soluTion Install webcam driver . Make sure the The PC camera webcam driver does not function . The webcam does not function is installed . with Mac ® Format the card . The card may be Green indicator malfunctioning, or light is on, Choose a new card .
  • Page 16 TRoUbleshooTIng problem cause soluTion The time displayed Time was not set, Reset the time with the isn't correct . or not set correctly . SetTime . e xe software . Time can't The card is Format the card . be set . not formatted .

  • Page 17: Notes

    noTes...

  • Page 18: Warranty

    (“Warranty Period”) . If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product .
  • Page 19 Brookstone, in so far as permitted by law, provides these products “as is . ” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;...
  • Page 20 Merrimack, New Hampshire USA 03054 • 800-846-3000 • www . B rookstone . c om 640532...
