Page 2
Instruction for Use Sensor (1) Battery check mark (2) Guide mark (3) Pointer (4) Switch button (5) Movie scale (6) Shutter speed scale (7) f/number scale (8) DIN scale (9) ASA scale (10) EV scale (11) ASA set knob (12) Dial ring (13) Battery compartment cap (14)
Page 3

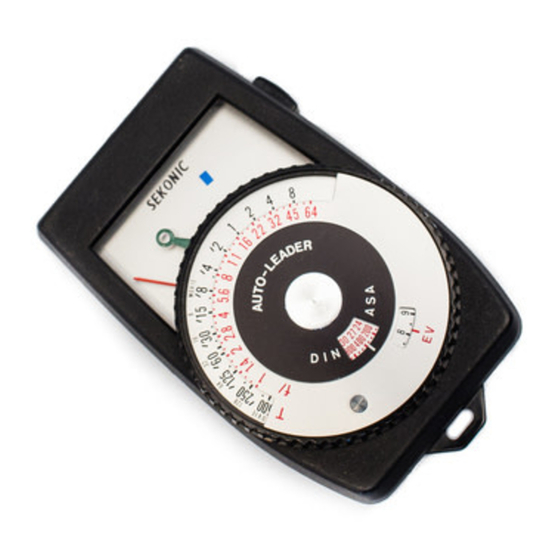

The Auto-Leader is a very handy carry around exposure meter. It allows the exposure to be measured very easily thanks pointer-tracking system which is based on the guide mark. Specifications Measurement system: Reflected light system Measurement range: E V3 to 18 (ASA 100) Angle of incoming light:65°...
Page 4
Preparing to operate Battery Use a 1.5V silver oxide battery (G13 AS designation). First, use a coin to remove the battery compartment cap (14) by rotating it to the left. Now load the silver oxide battery with the (+) side face Remove battery if you do not intend to use...
Page 5
Operation Film speed setting Set the film speed setting which you intend to use. How to set the film speed For the correct setting on the ASA scale (10), rotate the ASA set knob (12) and align the white mark on the black dial with the red scale unit in the ASA window.
Page 6
Movie scale (6) Measuring the exposure for movie cameras is performed in exactly the same way as that for ordinary still cameras except that the number of frames (8, 16, 32, etc.) is taken into consideration. Read out the value on the f/number scale (8) which best agrees with the number of frames of the movie camera and then transfer this setting to the camera.
Page 7
Interim scale units The interim units on the dial scales are as follows: Interim values of the ASA scale (10) [DIN scale (91)]...
