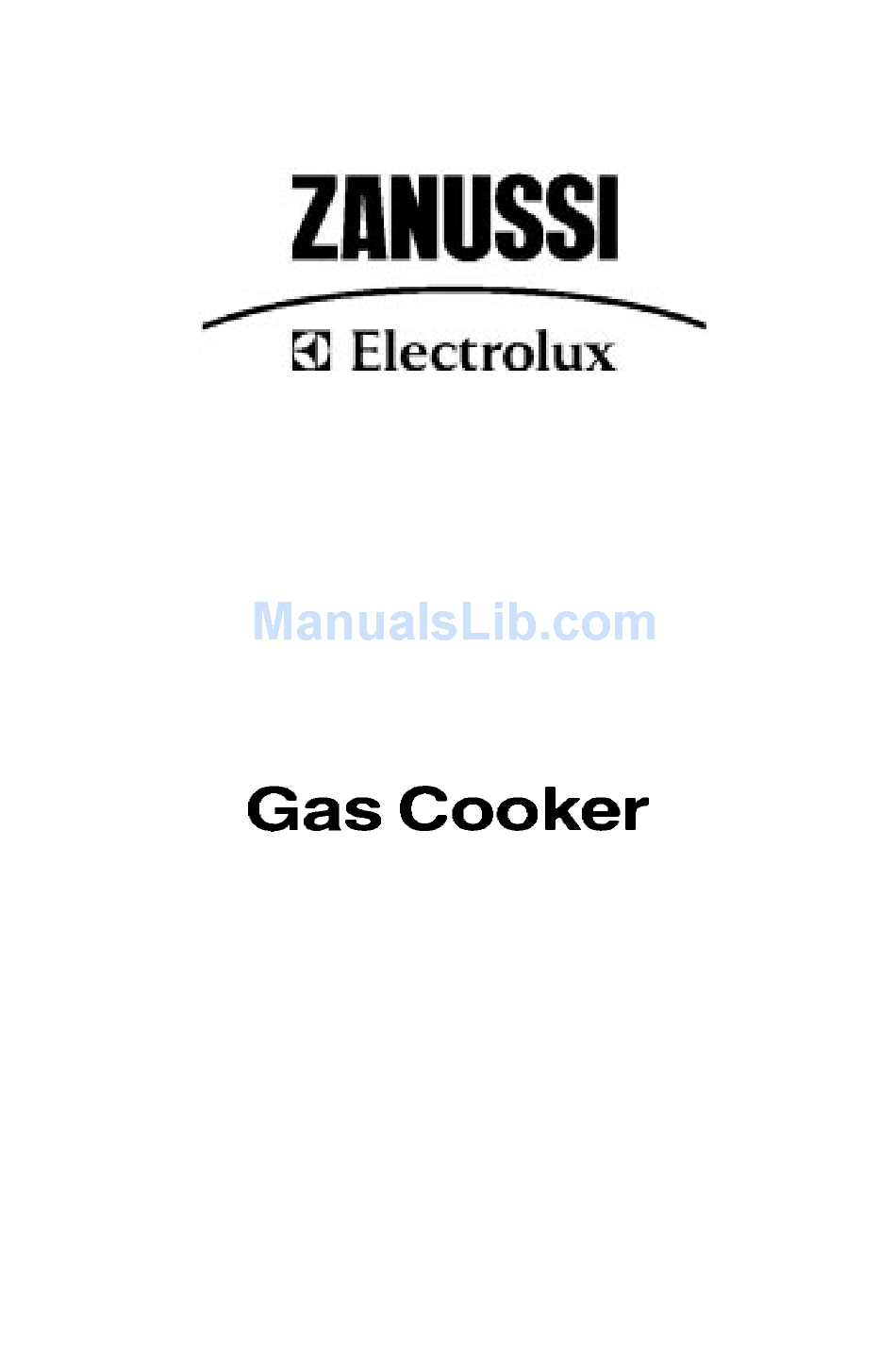

ZCG 7551 / 7550
INSTRUCTION BOOKLET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZCG 7551 and is the answer not in the manual?

Questions and answers

Related Manuals for Zanussi Electrolux ZCG 7551

Summary of Contents for Zanussi Electrolux ZCG 7551

  • Page 1 ZCG 7551 / 7550 INSTRUCTION BOOKLET...

  • Page 2: For Your Safety

    Z C G 7 5 5 1 / 7 5 5 0 t i o Introduction This gas appliance has been designed and manufactured to all the necessary British Standards. It also carries the C.E. mark. The cooker complies with European Council Directive 90/396/EEC. It is important that you understand how to use and care for the appliance properly before you use it for the first time.

  • Page 3: Table Of Contents

    Z C G 7 5 5 1 / 7 5 5 0 Contents Page Lighting the appliance The grill The hotplate The ovens Oven cooking chart - main oven - top oven The electronic timer Slow cooking Care and cleaning Installing the appliance General information What is wrong and why?

  • Page 4: Lighting The Appliance

    Z C G 7 5 5 1 / 7 5 5 0 Lighting the appliance The ignition system works by means of an electric spark system. Details about the plug are given in 'General Infornmation'. For your safety In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least 1 min.

  • Page 5: Top Oven

    Z C G 7 5 5 1 / 7 5 5 0 Grill/top oven The grill and the top oven are operated by the same control so you cannot use them both at the same time. Grill To light: 1 Open the door. 2 Push in the control knob and turn it to the right to the large flame symbol (highest setting), and press the ignition button immediately.

  • Page 6: Main Oven

    Z C G 7 5 5 1 / 7 5 5 0 Main oven To light: 1 Set the time of day on the clock. 2 Open the oven door. 3 Push in the control knob and turn it to gas mark 9. After a few seconds the oven will light automatically and the oven light will illuminate.

  • Page 7: The Grill

    Z C G 7 5 5 1 / 7 5 5 0 The grill The grill is a high-speed grill. The instructions below tell you how to vary the heat setting and how to change the height of the grid to suit the food you are cooking.
  • Page 8 Z C G 7 5 5 1 / 7 5 5 0 Cooking positions There is only one position for the grill shelf (Position 2). Positions are counted from the top downwards. Most food should be cooked on the grid in the grill pan.
  • Page 9 Z C G 7 5 5 1 / 7 5 5 0 The grill pan and handle (NG models only) The grill pan is supplied with a removable handle. To insert the handle, press the button on the handle with the thumb and pivot the handle slightly upwards inserting the lip into the widest part of the bracket.
  • Page 10 Z C G 7 5 5 1 / 7 5 5 0 The grill pan and handle (LPG models only) The grill pan is supplied with a removable handle. To attach the handle, place the wirework under the cut out in the pan so that the metal plate hooks over the top of the grill pan.

  • Page 11: The Hotplate

    Z C G 7 5 5 1 / 7 5 5 0 The hotplate You can only use the hotplate when the lid is open. If you have any trouble lighting a hotplate burner, turn all hotplate control knobs off and make sure that the burner parts have been replaced correctly.
  • Page 12 Z C G 7 5 5 1 / 7 5 5 0 For your safety Take care to avoid burns and scalds when you are reaching across the hotplate. Use pans with flat bases. They are more stable than pans which are warped. Do not use pans with very heavy handles which cause the pan to tip.

  • Page 13: Helpful Hints

    Z C G 7 5 5 1 / 7 5 5 0 Helpful hints Keep flames under the base of the pans. If the flames lick round the sides of the pans you are wasting gas. Only heat the amount of liquid you need. Do not overfill pans.

  • Page 14: The Ovens

    Z C G 7 5 5 1 / 7 5 5 0 The ovens Before you use the ovens you should wipe them out with a damp cloth. This will remove any dust. Heat zones Main oven - There are zones of heat within the oven.

  • Page 15: Baking Trays And Dishes

    Z C G 7 5 5 1 / 7 5 5 0 Most top oven cooking should be carried out using the shelf provided in shelf position 2. However, when cooking a small joint or a deep cake you can use the shelf on the base of the top oven to allow enough air to Shelf on base circulate around the food.
  • Page 16 Z C G 7 5 5 1 / 7 5 5 0 Roasting For best results we recommend open roasting using minimal fat or oil to prevent splashing. It is not necessary to cover meat or poultry or wrap food in foil when roasting as this restricts the circulation of heat and will lead to extended cooktimes.

  • Page 17: Oven Cooking Chart - Main Oven

    Oven cooking chart - Main oven These instructions are for cooking in the oven after it has been pre-heated for 20 minutes. If you are cooking more than one tray of similar items, for example cakes or biscuits, swap the trays around during cooking. Or you can take the top tray out of the oven when the food is cooked and move the lower tray to the higher shelf to finish cooking.

  • Page 18: Oven Cooking Chart

    Oven cooking chart Shelf Approximate Food mark position cooking time Poultry: Chicken 20 mins. per ½kg (1lb) and 20 mins. Turkey below 4.5kg (10lbs) 25 mins. per ½kg (1lb) and 25 mins. over 4.5kg (10lbs) 4 or 5 15 mins. per ½kg (1lb) and 15 mins. Duck and duckling 25 mins.
  • Page 19 Shelf Approximate Food mark position cooking time Pastries: Plate tart (shortcrust) 25 -35 mins. To help pastry brown on the underside Fruit pie (shortcrust) 25-35 mins. cook on a metal plate, or if plates are flat Mince pies (flan pastry) 2 &...

  • Page 20: Top Oven

    Oven cooking chart Oven cooking chart - Top oven These instructions are for cooking in the oven after it has been pre-heated for 20 minutes. The recommended shelf positions give the best results. Put the dishes centrally on the shelf and turn food around during the cooking time. You can change the gas marks and cooking times to suit your own tastes.
  • Page 21 Shelf Approximate Food mark position cooking time Poultry: Chicken Shelf on 20 mins. per ½kg (1lb) and 20 mins. Duck and duckling base 25 mins. per ½kg (1lb) Stuffed poultry Cook as above but calculate weight including stuffing. Thaw frozen joints thoroughly before cooking them. The times given above are for open roasting in a preheated oven.
  • Page 22 Oven cooking chart Shelf Approximate Food mark position cooking time Puddings: Milk pudding 2 hrs. approx. Baked sponge pudding 45-60 mins. Baked custard 50-60 mins. Note: You must soak dried beans then boil them in an open pan for 15 minutes before you add them to any dish.

  • Page 23: The Electronic Timer

    Z C G 7 5 5 1 / 7 5 5 0 The electronic timer Please note that this is a 24 hour clock, for example 2.00 pm is shown as 1400. Bell symbol Cookpot symbol In the following pages we explain how to set the controls.

  • Page 24: Automatic Control

    Z C G 7 5 5 1 / 7 5 5 0 Switch off the alarm by turning the selector knob to 'Clock'. Then turn to 'Manual' and the time of day will show in the display. Note: You can use the timer when an automatic sequence has been set, as long as you remember the following point.
  • Page 25 Z C G 7 5 5 1 / 7 5 5 0 4 What time do Turn the selector knob to you want the 'Stop'. Turn the setting knob food to be until the time the oven is to cooked by? switch off shows in the display.

  • Page 26: Hints And Tips For Automatic Cooking

    Z C G 7 5 5 1 / 7 5 5 0 Hints and tips for automatic cooking 1 Check the instructions for setting the automatic controls until you are familiar with the timer operation. 2 If the oven has been used, allow it to cool completely before using for automatic cooking.

  • Page 27: Slow Cooking

    Z C G 7 5 5 1 / 7 5 5 0 Slow cooking Please note: There is no slow cook on the top oven. The slow cook setting gives a very low heat in the oven. It is particularly useful when cooking soups, stews and casseroles because the long slow cooking will make cheaper, tougher cuts of meat more tender.

  • Page 28: Frozen Foods

    Z C G 7 5 5 1 / 7 5 5 0 Soups, casseroles and stews Do not cook casseroles over 2.7kg (6lb). Bring to the boil on the hotplate then cook on slow cook. Cook in the middle of the oven or above. Cover food with a tight fitting lid or tin foil.

  • Page 29: Care And Cleaning

    Z C G 7 5 5 1 / 7 5 5 0 For your safety For hygiene and safety reasons you must keep this gas appliance clean. A build up of fat or other foodstuff could cause a fire. Try to mop up spills and splashes as soon as they happen. But be careful as parts of the appliance will be hot.

  • Page 30: When Replacing Hotplate Burner Parts

    Z C G 7 5 5 1 / 7 5 5 0 The hotplate Clean the hotplate top using a mild abrasive such as 'Cif'. Take care not to damage the spark electrodes. If the spark electrodes are damaged the burners will not light. You can remove the pan supports, burner caps and burner crowns to clean them.
  • Page 31 Z C G 7 5 5 1 / 7 5 5 0 The grill Do not clean the grill burner itself. The burner is designed to be self cleaning. Cleaning the grill may cause the holes in the burner to become blocked preventing it from operating correctly.
  • Page 32 Z C G 7 5 5 1 / 7 5 5 0 The ovens The sides and back of your ovens are coated in a special material which helps to keep itself clean. Follow these simple rules to maintain the appearance of the special finish.
  • Page 33 Z C G 7 5 5 1 / 7 5 5 0 Main Oven cleaning cycle You need to follow the cycle to keep the inside of the main oven in good condition. The type of cooking you do will affect how often you need to follow the cycle.
  • Page 34 Z C G 7 5 5 1 / 7 5 5 0 Top oven cleaning cycle To carry out a cleaning cycle: OVEN/GRILL 1. Remove the oven shelf. 2. Set the oven to mark 5 for at least MARK 5 30 minutes.

  • Page 35: Cleaning Between The Outer And Inner Door Glass

    Z C G 7 5 5 1 / 7 5 5 0 Cleaning between the outer and inner door glass You can remove the glass from the oven and grill doors if you need to. To remove the outer glass Note: For top oven door it is important not to open the door when the glass is removed because the door is lighter and it will spring shut.

  • Page 36: Installing The Appliance

    Z C G 7 5 5 1 / 7 5 5 0 Cleaning The Door Glass To prevent damaging or weakening the door glass panels avoid the use of the following: Household detergents and bleaches Impregnated pads unsuitable for non-stick saucepans Brillo/Ajax pads or steel wool pads Chemical oven pads or aerosols Rust removers...
  • Page 37 Z C G 7 5 5 1 / 7 5 5 0 Positioning The diagram shows how close to the appliance cupboards, shelves, curtains and so on can be fitted. Check the diagram and carefully read the instructions to make sure your appliance is fitted safely. If you are in doubt your installer will give you advice.

  • Page 38: General Information

    Z C G 7 5 5 1 / 7 5 5 0 General information For your safety Do not block any of the appliance vents. Never line any part of the appliance with foil. Do not let items which can catch fire or electric mains leads such as kettle flexes trail over any part of the appliance.

  • Page 39: Replacing The Oven Light Bulb

    Z C G 7 5 5 1 / 7 5 5 0 If the ignition system doesn't work there may be a fault with the electrical supply. First, check the socket by trying out another piece of electrical equipment in it, if that works correctly renew the fuse in the plug. If the fuse keeps failing there is a fault in the appliance which must be put right.

  • Page 40: What Is Wrong And Why

    Z C G 7 5 5 1 / 7 5 5 0 What is wrong and why? We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. Problem The oven, grill or hotplate will not light. Check If only the hotplate burners will not light make sure that the burner parts have been placed correctly.
  • Page 41 Z C G 7 5 5 1 / 7 5 5 0 Problem The ovens are not cooking evenly. Check Check that the appliance is installed properly and is level. Check that the main oven roof is pushed fully back into position. Check that you are using the recommended size baking trays.

  • Page 42: Servicing

    Z C G 7 5 5 1 / 7 5 5 0 Service and spare parts In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Service Force Centre by telephoning:- 0 8 7 0 5 9 2 9 9 2 9 Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
  • Page 43 Z C G 7 5 5 1 / 7 5 5 0 For your safety Maintenance must only be carried out by a competent /qualified person. Do not try to repair or alter/modify the appliance yourself as this could be dangerous. We recommend that your appliance has an annual gas safety check carried out by our approved service organisation.

  • Page 44: Installation Instructions

    INSTALLATION INSTRUCTIONS Serial number at front. Rating Plate on top rear of panel. Please note that the handle , pan supports and lid may differ in type and shape from that shown in the diagram. For your safety Where applicable Natural Gas and L.P. Gas versions of this appliance are available.

  • Page 45: Technical Data

    TECHNICAL DATA DIMENSIONS Height Width Depth Height to hotplate 900mm (nominal) 554mm (nominal) 600mm (to front of door panel) Space for fixing at hotplate level 2mm minimum clearance Space for fixing above hotplate level See important note 'Location of Appliance'. Minimum space above hotplate 787mm (If a cooker hood is fitted refer to the cooker hood installation instructions).

  • Page 46: Safety Requirements/Ventilation

    MAIN OVEN Natural Gas L.P. Gas Heat Input 2.4kW (8189Btu/h) 2.4kW (172.4 g/h) Injector Marking Thermostat By-Pass Marking TOP OVEN Natural Gas L. P. Gas Heat Input 2.4kW (8189 Btu/h) 2.4kW (172.4g/h) Injector Marking Dual Control By-pass Fixed Internal Fixed Internal GENERAL Ignition H.

  • Page 47: Location Of Appliance

    LOCATION OF APPLIANCE This appliance must not be installed in a bed-sitting room of volume less than 20m³ or in a bathroom, shower room or garage. It is essential that the appliance is positioned as stated below (see Fig. 1a) i.e. shelves, wall cabinets and cooker hoods must be fitted a minimum of 787mm directly above the top of hotplate and 400mm above the hotplate when fitted in line with the outside of the appliance.

  • Page 48: Installation

    INSTALLATION 1. PARTS REQUIRED The loose hotplate parts are packed in the polystyrene fitment on top of the hotplate. 2. LEVELLING THE APPLIANCE If the appliance requires levelling or its height adjusting (from the hotplate to any working surface), the procedure below must be followed: If the appliance requires levelling or its height adjusting (from the hotplate to any working surface), the procedure below must be followed:...

  • Page 49: Connecting To Gas

    4. CONNECTING TO GAS This appliance is designed to be installed with an appliance flexible connection only. Supply piping should not be less that R³/8. Connection is made to the Rc ½ (½" B.S.P.) female threaded entry pipe located just below the hotplate level on the rear left hand side of the appliance.

  • Page 50: Testing

    If the wiring is extended or a completely new cable fitted a 3-pin 13 amp plug should be fitted. (See Fig.5). Connect the wires as follows: BROWN to the Live Terminal. BLUE to the Neutral Terminal. GREEN and YELLOW to the Earth Terminal. As the colours of the wires in the mains lead which you fit may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:...

  • Page 51: Checking The Main Oven

    10. CHECKING THE MAIN OVEN CONTROLS TO SET THE TIME OF DAY (see Fig.6) Turn on the electricity supply and ensure that the thermostat is in the off position. Before setting timer read important note below. Rotate the left hand clock knob to 'Manual' and back to the 'Clock' position.

  • Page 52: General Note

    13. CHECKING THE TOP OVEN Turn the top oven thermostat control knob anticlockwise to Mk8 and press the ignition button. As soon as the burner is alight the button can be released. When the oven burner lights up there should be a low gas rate at first to the oven burner which is the F.S.D.

  • Page 53: Guarantee Conditions

    Guarantee Conditions Standard guarantee conditions We, Zanussi-Electrolux, undertake that if within 12 months of the date of the purchase this ZANUSSI- ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: The appliance has been correctly installed and used only on the gas supply stated on the rating plate.
  • Page 54 N O T E S ZCG 7551 / 7550 - 311674104...
  • Page 55 N O T E S...
  • Page 56 ZANUSSI-ELECTROLUX 55 - 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ TELEPHONE 0870 5 727727 www.zanussi-electrolux.co.uk Part Number:311674104 © Electrolux plc 2005...
