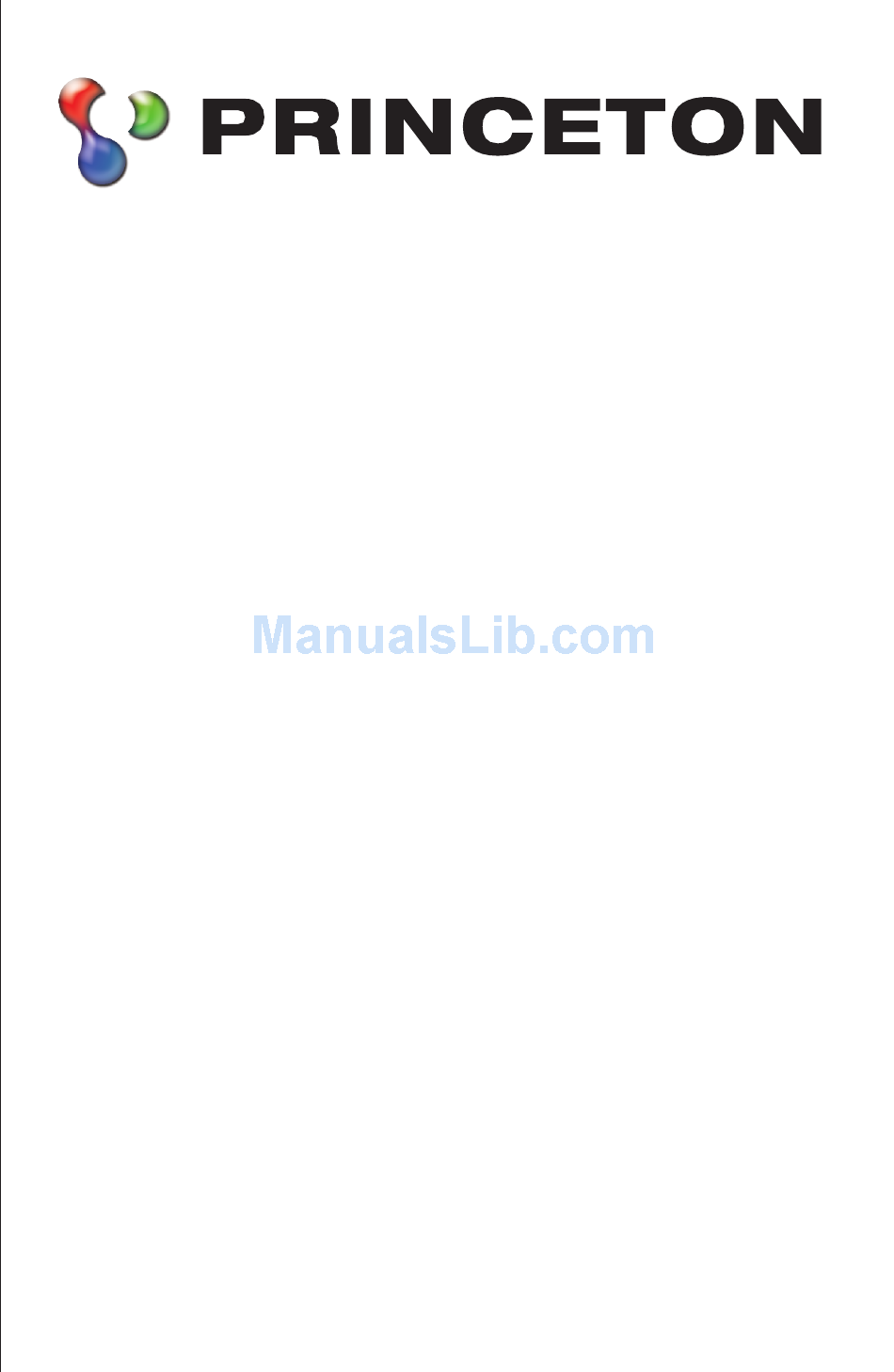

- Page 1 LCD1700 R E F E R E N C E M A N U A L...
- Page 2 Precautions • Read all of these instructions and save them for later use. • Follow all warnings and instructions on the product. • Product Do not cover or block the vent holes in the case. Do not insert sharp objects or spill liquid into the LCD monitor through cabinet slots. They may cause accident fire, electric shock or failure.
-
Page 3: Canadian Department Of Communications Compliance Statement
Keep the monitor away from: overly hot, cold or humid places, places directly under sunlight, dusty surroundings, equipment that generate strong magnetic fields. Federal Communication Commission Radio Frequency International Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Product Description
Product Description Congratulations on your purchasing this new generation of monitor. Your LCD monitor incorporates high quality display into a small light weighted module. It has power-saving capabilities and emits no X-ray radiation. You will certainly benefit from this monitor in lots of ways;... -
Page 6: Taking A Look
Taking a Look 1. Power Switch Pressing this button turns the display system power on or off. 2. Menu/Select ▲ Pressing this button pops up the OSD menus on the screen, and used to select (“Up” direction) the OSD control options on the screen. ▼... -
Page 7: Display Angle
Setting Up WARNING When you disconnect the cord /cables, be sure to hold the connector and not the cable itself. 1. Connect one end of the power adapter ( ) to the monitor and the other end to the connector of the power cord. 2. -
Page 8: Osd Control Options
OSD Control Options OSD Menu - Analog Interface OSD Menu - Digital CONTRAST Adjust the contrast using + and − buttons. BRIGHTNESS Adjust the brightness using + and − buttons. VOLUME Adjust the speaker volume using + and – buttons. AUTO TUNE Press + or −... -
Page 9: Troubleshooting
PHASE This item is used to decrease the horizontal interference. Select one display pattern from your computer. Use + and − buttons on the LCD monitor to decrease the horizontal interference to get the optimal display. RED / GREEN / BLUE Adjust the value of color gain (Red, Green, Blue) using + and –... -
Page 10: Display Modes
Display Modes Item Resolution Type H. Scan V. Scan Pol. Pixel (KHz) (Hz) (MHz) 640X350 31.469 70.087 + / - 25.175 720X400 31.469 70.087 - / + 28.322 640X480 31.469 59.940 - / - 25.175 640X480 VESA72 37.861 72.809 - / - 31.500 640X480 VESA75... -
Page 11: Specifications
Specifications LCD Display 17.0” TFT Active Matrix Panel Display Size 337.9(H) x 270.3(V) mm Pixel Pitch 0.264(H) x 0.264(V) mm Display Mode VGA 640 x 350 (70 Hz) VGA 720 x 400 (70 Hz) VGA 640 x 480 (60/72/75 Hz) SVGA 800 x 600 (56/60/72/75 Hz) XGA 1024 x 768 (60/70/75 Hz) SXGA 1280 x 1024 (60/75 Hz) - Page 12 Power Adapter Input AC 100-240V, 50-60Hz, Output DC 12V/4.0A Operating Conditions Temperature C ~ 35 C (41 F ~ 95 Humidity 20% ~ 80% (no condensation) Altitude To 10,000 Feet Storage Conditions Temperature C ~ 60 C (-4 F ~ 140 Humidity 10% ~ 90% (no condensation) Dimensions (HxWxD)
- Page 13 Ref No.: 00300000365 © 2003-2004 Princeton Digital (USA) Corp. All right reserved. This manual may not be copied in whole or in part without the written consent of Princeton Digital (USA) Corp. Product Specifications are subject to change without notice. Princeton Digital (USA) Corp. is not responsible for printing or clerical errors. Windows® is a registered trademark of Microsoft Corporation. Apple® and MacintoshTM are registered trademarks of Apple Computer, Inc.
