Zanussi FL 1089 User Manual

Washing machine fl 1089; fl 1089alu; fl 1289
Hide thumbs

Advertisement

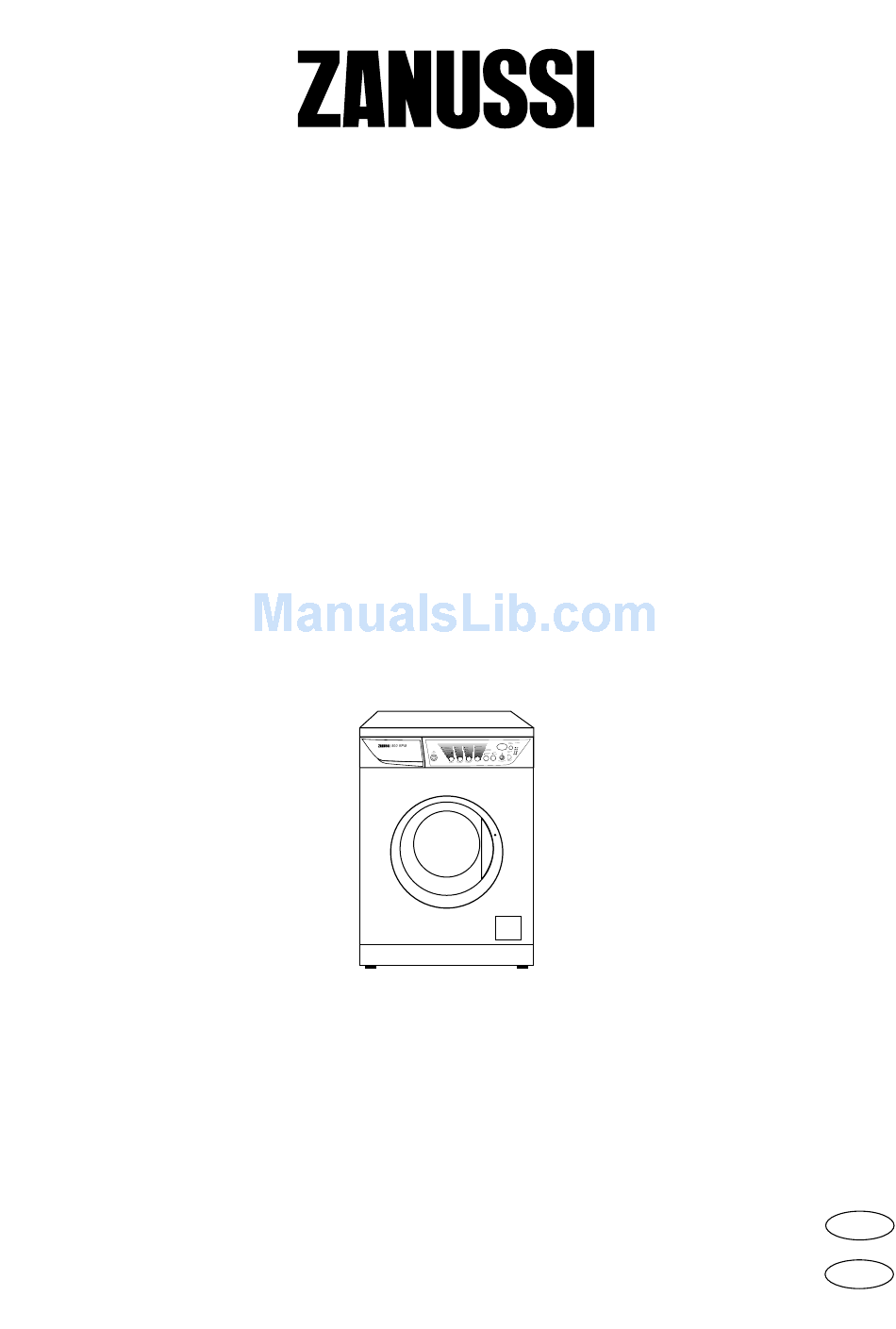

LAVADORA

WASHING MACHINE

FL 1089
FL 1089ALU
FL 1289
MANUAL DE USO
E
USER MANUAL
132993430
GB

Advertisement

Table of Contents
loading

  Related Manuals for Zanussi FL 1089

  Summary of Contents for Zanussi FL 1089

  • Page 1: Washing Machine

    LAVADORA WASHING MACHINE FL 1089 FL 1089ALU FL 1289 MANUAL DE USO USER MANUAL 132993430...
  • Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
  • Page 3: Table Of Contents

    Contents Warnings 28-29 Maintenance Bodywork Disposal Door seal Detergent dispenser drawer Tips for environmental protection Drain filter Water inlet filter Technical specifications Emergency emptying out The dangers of freezing Installation Unpacking Something not working? 48-49 Positioning Water inlet Water drainage Electrical connection Your new washing machine Description of the appliance...
  • Page 4: Warnings

    Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •...
  • Page 5: Disposal

    Child safety To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until • Children are often not aware of how dangerous the groove is vertical. electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance.
  • Page 6: Technical Specifications

    Synthetics 3 kg Delicates 3 kg Woollens, hand wash 2 kg SPIN SPEED 1000 rpm max. (FL 1089, FL 1089ALU 1200 rpm max. (FL 1289) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A...
  • Page 7: Installation

    Installation Unpacking 6. Plug all the holes with the plugs which you will find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.
  • Page 8: Water Drainage

    Water drainage Electrical connection This machine is designed to operate on a 220-230 V, The end of the drain hose can be positioned in three single-phase, 50 Hz supply. ways: Check that your domestic electrical installation can Hooked over the edge of a sink using the plastic take the maximum load required (2.2 kW), also hose guide supplied with the machine.
  • Page 9: Your New Washing Machine

    Your new washing machine This new washing machine, which is fitted with the Jet system, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed.
  • Page 10: Use

    Control panel fabrics to be hand-washed (HAND WASH programme). 1 ON/OFF button By selecting position FRIO the machine will wash with Press this button to switch the washing machine on. cold water. To be used for extremely delicate items, The display (9) will show three blinking dashes or a such as curtains.
  • Page 11 whereas in the programme for delicate fabrics the As all spinning phases are suppressed, this washing water is only drained. cycle is very quiet and it can be useful at night or in times with a more economical power rate. •...
  • Page 12 • Duration of washing programme in hours The delay time is displayed for 3 seconds, then the duration of the selected programme reappears. and minutes, after you have selected a After you have pressed the START/PAUSE button, programme. the countdown begins, and the delay time value decreases by one unit every hour.
  • Page 13 Important! You must set the washing machine to • SPIN PAUSE before you make any change in the Depress RESET (ANULAR) twice, the pilot lights programme in progress. WASH and RINSES go out. • Draining of water and spinning after the •...
  • Page 14 Important! The door will be locked throughout the delay time (DOOR LOCKED light lit). If you need to open the door, you must first set the washing machine to PAUSE by pressing the START/PAUSE button. After you have closed the door, press the START/PAUSE button again.
  • Page 15: Washing Hints

    Delicate fabrics, woollens and hand wash Washing hints programme: drum no more than one third full. Washing a maximum load makes the most efficient Sorting the laundry use of water and energy. For heavily soiled laundry, reduce the load size. Follow the wash code symbols on each garment label and the manufacturer’s washing instructions.
  • Page 16: Detergents And Additives

    lay the garment on a soft cloth and dab the stain. Quantity of detergent to be used Lipstick: moisten with acetone as above, then treat The type and quantity of detergent will depend on stains with methylated spirits. Remove any residual the type of fabric, load size, degree of soiling and marks from white fabrics with bleach.
  • Page 17: International Wash Code Symbols

    International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not...
  • Page 18: Operating Sequence

    4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Before the first wash we recommend that you run a The display will show three blinking dashes or a cotton cycle at 60°C, with the machine empty, in blinking zero.
  • Page 19 WET ANTI-ARRUGAS option. The relevant light will light up. FL 1089 - FL1089ALU 10. Select the NIGHT WASH (CICLO NOCHE) option If you select the NIGHT WASH option, the machine will stop at the end of the programme with the water still in the tub.
  • Page 20 • the drum is not turning. 12. Start the programme If these requirements are met, when you pause the Press the START/PAUSE button. The relevant light washing machine, the DOOR LOCKED light goes will stop flashing, the DOOR LOCKED light will light out and the door can be opened.
  • Page 21: Washing Programmes

    Programme chart Washing programmes Type of Consumption* laundry and Programme/ Description of Load Available options symbols on temperature programme Energy Water Time labels litres h/min. CENTRIFUGADO 6 kg Cottons Wash at 2.05 2.39 PRELAVADO White cotton: Algodón 60°-90°C REMOJO e.g. sheets, 60°-90°C 3 rinses FUNCION EXPRESS...
  • Page 22: Maintenance

    Maintenance Bodywork Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Clean the outside of the machine with soap and drawer after cleaning. water only. Rinse with clean water and dry with a soft cloth.
  • Page 23: Water Inlet Filter

    Frost precautions Water inlet filter IIf the machine is exposed to temperatures below If you notice that the machine is taking longer to fill, 0°C, certain precautions should be taken. check that the filter in the water inlet hose is not blocked.
  • Page 24: Something Not Working

    Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10: problem with the water supply - E20: problem with water draining - E40: door open Once the problem has been eliminated, press the START/PAUSE button to restart the programme.
  • Page 25 Problem Possible cause • Spinning starts late or the laundry is • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
  • Page 26 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
