Summary of Contents for Chauvet LED Pinspot 360
-
Page 1: User Manual
LED Pinspot 360 Snapshot Use on Dimmer Outdoor Use Sound Activated Master/Slave Auto-ranging Power Supply Replaceable Fuse User Serviceable Duty Cycle User Manual 5200 NW 108th Avenue, Sunrise, FL 33351 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS ............................12 ...................................... 12 ONTACT CHAUVET® Lighting. 2012. All Rights Reserved. Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. -
Page 3: Before You Begin
Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. EANING... -
Page 4: Safety Instructions
Never disconnect the power cord by pulling or tugging on the cord. • Never carry the fixture directly from the cord. Always use the hanging/mounting bracket. • Avoid direct eye exposure to the light source while it is on. LED Pinspot 360 User Manual Rev. 2... -
Page 5: Introduction

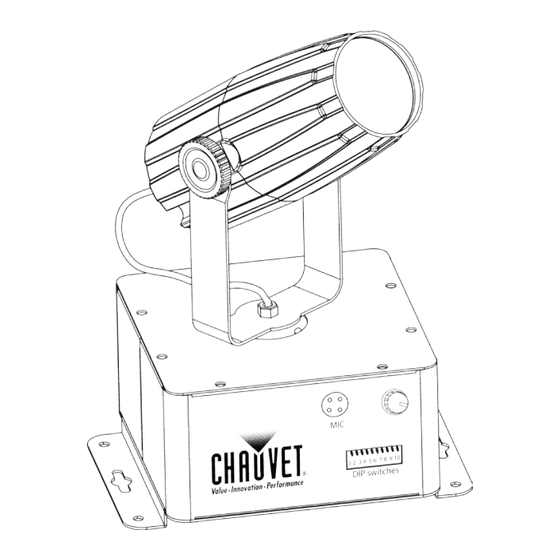

Built-in automated programs via master/slave with adjustable pan ranges • Built-in sound activated programs via master/slave with adjustable pan ranges Product Overview Microphone sensitivity Tilt Adjustment adjustment knob Knob Microphone DIP switches Mounting Brackets (2) LED Pinspot 360 User Manual Rev. 2... -
Page 6: Setup
Install the retainer ring. Assure that the installation is tight. If the lens is not installed properly, it may fall out. This may be a safety hazard if installed overhead. Retainer Ring Color Gel Lens LED Pinspot 360 User Manual Rev. 2... -
Page 7: Fuse Replacement
Additional power link out The power linking shown in this document is for the Chauvet® North American version ONLY! Therefore, it is the customer’s responsibility to check with the Dealer/Distributor regarding power linking on the local version of the product. Connections and availability may change, depending on the power requirements and/or regulations of each country/region. -
Page 8: Orientation
Mounting Orientation The LED Pinspot 360 may be mounted in any safe position, provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This may be done with a screw, nut and bolt, or a hanging clamp. -
Page 9: Operating Instructions
105 and 106. Choose the starting addresses for each fixture so that the channels used do not overlap. In addition, you should note the starting address selected for future reference. The LED Pinspot 360 uses five DMX channels. If you are unfamiliar with DMX, download the DMX Primer from www.chauvetlighting.com. -
Page 10: Dmx Channel Values
000 008 No Function 009 126 Open Pulse Effect 127 191 Strobe 0% ~ 100% 192 254 Close Pulse Effect 255 255 No Function Dimmer 000 255 Dimmer: 0%~100% LED Pinspot 360 User Manual Rev. 2... -
Page 11: Appendix
Products returned without an RMA # will be refused. Call CHAUVET® and request RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer’s responsibility. -
Page 12: Technical Specifications
Pan ....................................540° Tilt (manual) ..................................330° THERMAL Maximum ambient temperature ........................104° F (40° C) ORDERING INFORMATION LED Pinspot 360 ............................LEDPINSPOT360 WARRANTY INFORMATION Warranty ............................2-year limited warranty Contact Us W o r l d W i d e General Information CHAUVET®...
