Standard Features (HP BladeSystem c-Class Interconnect Components)
Interconnect bays 1,2,3,4 are reserved for Ethernet
Fibre Channel, InfiniBand or other Interconnects must be placed in bays 5 & 6 or 7 & 8
Bays 5 & 6 must match the mezzanine type plugged into Server A
Bays 7 & 8 must match the mezzanine type plugged into Server B
HP BladeSystem c3000 Enclosure: HP BladeSystem c3000 Enclosure: HP BladeSystem c3000 Enclosure: HP BladeSystem c3000 Enclosure:
Interconnect bays 1 & 2 are reserved for Ethernet
Fibre Channel or other Interconnects must be placed in bays 3 & 4
Bays 3 & 4 must have interconnects of the same type or be empty

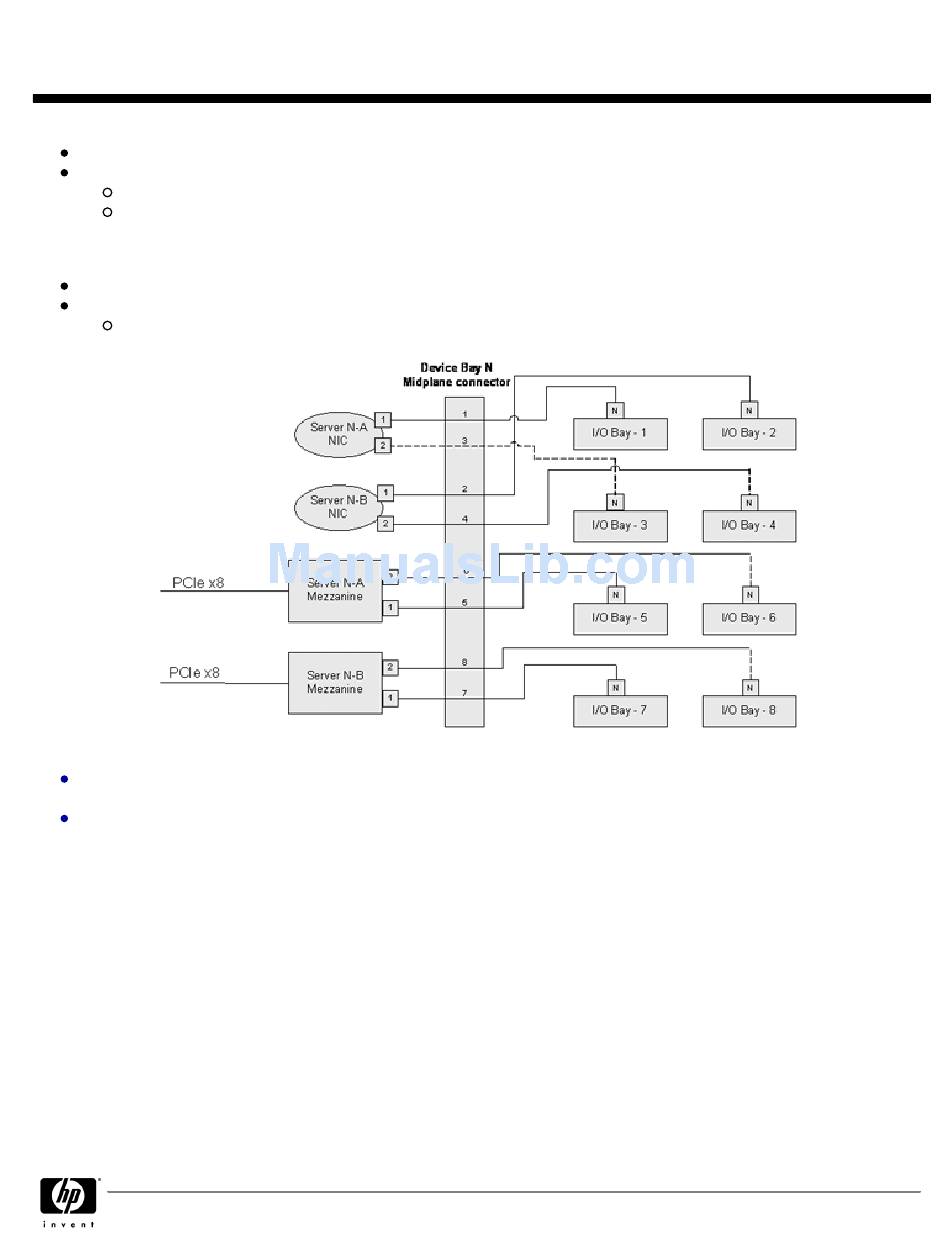

HP ProLiant BL2x220c - c7000 I/O Map HP ProLiant BL2x220c - c7000 I/O Map HP ProLiant BL2x220c - c7000 I/O Map HP ProLiant BL2x220c - c7000 I/O Map
NOTE: HP BladeSystem c7000 Enclosure: NOTE: HP BladeSystem c7000 Enclosure: NOTE: HP BladeSystem c7000 Enclosure: NOTE: HP BladeSystem c7000 Enclosure:
Embedded NIC Port 1 from each server (Server A and Server B) is mapped to Interconnect bays 1 and 2 which support only
Ethernet devices
Embedded NIC Port 2 from each server (Server A and Server B) is mapped to Interconnect bays 3 & 4 which support only
Ethernet devices in configurations using the BL2x220
The BL2x220 mezzanine slots connect to interconnect devices in Interconnect Bays 5 & 6 or 7 & 8
HP ProLiant BL2x220c - c3000 I/O Map HP ProLiant BL2x220c - c3000 I/O Map HP ProLiant BL2x220c - c3000 I/O Map HP ProLiant BL2x220c - c3000 I/O Map
