Senco Products Inc.
8485 Broadwell Road
Cincinnati, Ohio 45244
Warnings for the safe use of this tool are included in this manual.
Questions? Comments?
call SENCO'S toll-free Action-line: 1-800-543-4596
or e-mail: toolprof@senco.com Visit our Website www.senco.com

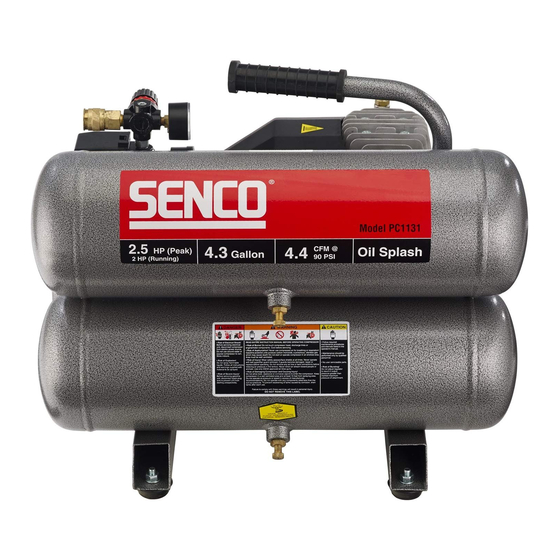

PC1131 Electric
Air Compressor
Operating Instructions
PC1131 Electric Compressor
Issued Oct. 18, 2006
© 2006 by Senco Products, Inc.
Advertisement
Related Manuals for Senco PC1131
Summary of Contents for Senco PC1131
- Page 1 © 2006 by Senco Products, Inc. Warnings for the safe use of this tool are included in this manual. PC1131 Electric Compressor Issued Oct. 18, 2006 Questions? Comments? call SENCO’S toll-free Action-line: 1-800-543-4596 or e-mail: toolprof@senco.com Visit our Website www.senco.com...
-
Page 8: Compressor Features
COMPRESSOR FEATURES Motor/Pressure Switch Motor Thermal Overload Air Intake Filter Air Compressor Pump Safety relief valve Air Tank Drain Valves Air Tank Pressure Gauge Outlet Pressure Gauge Pressure Regulator Dipstick Oil Drain Delivery tube 115 Volt electric power cord Ventilation openings/ protective shroud Quick disconnect Cold start valve... - Page 9 COMPRESSOR FEATURES 1) MOTOR/PRESSURE SWITCH: This switch is used to start or stop the air compressor. Moving the switch to the "Auto" (On) position will provide automatic power to the pressure switch which will allow the motor to start when the air tank pressure is below the factory set "cut-in"...
- Page 10 Remove plug from cylinder head port and replace w/ air filter.
-
Page 11: Operation
OPERATION PRE-START CHECKLIST: 1. Check oil level. Add if necessary. 2. Remove any moisture in the air compressor air tank. Remove excessive pressure with an air tool, then open the air tank drain valve in the bottom of the air tank. Close tightly when drained. WARNING: Risk of bodily injury. - Page 12 ON position, motor runs continuously.
- Page 15 PC1131 2.0 running, 2.5 peak 3400 Oil Capacity 12 oz. 70 seconds 16 seconds 60 lbs 20”x14.5”x16.5” S1 @ 100 psig Running Duty Type Noise 79 dBA...
