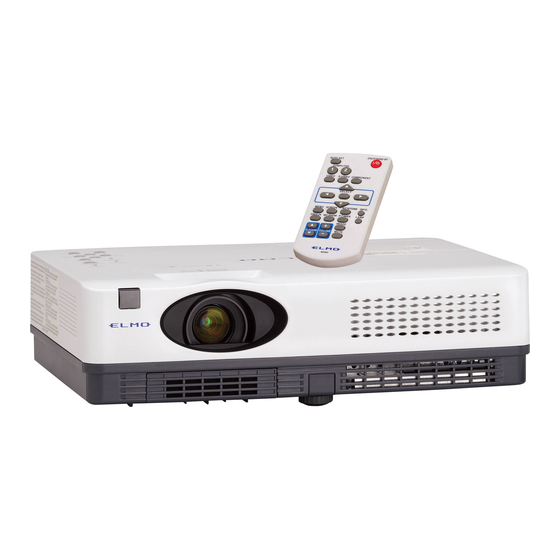

Elmo CRP-221 Owner's Manual

Classroom projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CRP-221
CRP-261
Classroom Projector
Owner's Manual
Please read this owner's manual carefully
before using this product and keep it for
future reference.
Network Supported
Refer to the Owner's Manuals below for
details about network function.
❏ Network Set-up and Operation
❏ PJ Network Manager

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRP-221 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elmo CRP-221

Summary of Contents for Elmo CRP-221

  • Page 1 CRP-221 CRP-261 Owner’s Manual Classroom Projector Please read this owner's manual carefully before using this product and keep it for future reference. Network Supported Refer to the Owner's Manuals below for details about network function. ❏ Network Set-up and Operation...

  • Page 2: Features And Design

    Features and Design This Multimedia Projector is designed with the most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 16.77 million colors, and matrix liquid crystal display (LCD) technology. ♦ ♦...

  • Page 3: Table Of Contents

    Table of Contents Features and Design .... Manual PC Adjustment Image Mode Selection Table of Contents ..... . Image Adjustment To the Owner.

  • Page 4: To The Owner

    To the Owner Before installing and operating this projector, read this Safety Precaution manual thoroughly. This projector provides many convenient features and ● wARNING: THIS APPARATUS MUST BE EARTHED. functions. Operating the projector properly enables ● TO REDUCE THE RISK OF FIRE OR you to manage those features and maintains it in good ELECTRIC SHOCK, DO NOT EXPOSE THIS condition for many years to come.

  • Page 5: Safety Instructions

    Safety Instructions All the safety and operating instructions should be read Do not install the projector near the ventilation duct of before the product is operated. air-conditioning equipment. Read all of the instructions given here and retain them This projector should be operated only from the type for later use.

  • Page 6: Air Circulation

    Safety Instructions Air Circulation Installing the Projector in Proper Position Openings in the cabinet are provided for ventilation. To Install the projector properly. Improper installation may reduce the lamp life and cause a fire hazard. ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered.

  • Page 7: Compliance

    Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : CRP-221, CRP-261 Trade Name : ELMO Responsible party : ELMO USA CORP.

  • Page 8: Part Names And Functions

    Part Names and Functions ① Top controls and Indicators Front ② Zoom Ring ③ Focus Ring ② ③ ① ④ Speaker ⑤ Infrared Remote Receiver ⑥ Projection Lens ⑦ Lens Cap (See page 61 for attaching.) CAUTION Do not turn on a projector with lens cap attached. High temperature from light beam may damage lens cap and result in fire hazard.

  • Page 9: Rear Terminal

    – Connect analog RGB output signal from a manual of “Network Set-up and Operation”). computer to this terminal (p.14). ⑦ AUDIO IN – This terminal can be used to output the incoming Connect the audio output signal from computer or analog RGB and Component signal from video equipment to this jack (pp.14-16). COMPUTER IN 1 /S-VIDEO IN /COMPONENT IN terminal to the other monitor (pp.14,16). ⑧ DC OUT 12V 1.1A Connect the DC power cord (supplied) to this jack to supply DC 12V to a document camera. Notes on using ELMO document cameras; - The projector can supply 12V DC power to the document camera or "L-1ex/TT-02RX", "L-1n/TT-02s" "CO-10" with setting to Network mode of Standby mode menu. (p.51) - Do not connect any other document cameras other than ELMO and "L-1ex/TT-02RX","L-1n/TT-02s" "CO-10" with the supplied VGA/DC power combined cord.Otherwise damages may result. - Use only the supplied VGA/DC power combined cord.

  • Page 10: Top Control

    Part Names and Functions Top Control ⑤ ⑧ ④ ⑦ ③ ② ① ⑥ ① SELECT button ⑤ POwER indicator – Execute the selected item (p.21). – Lights red when the projector is in stand-by mode. – Expand or compress the image in the Digital –...

  • Page 11: Remote Control

    Part Names and Functions Remote Control ① ON/STAND-By button Turn the projector on or off. (pp.18-20) You can also turn the document camera on or off with this button. ② AUTO SET button Execute the setting of Auto setup (includes Input search, Auto PC adj. and Auto Keystone functions) in the setting menu.

  • Page 12: Remote Control Battery Installation

    Part Names and Functions Remote Control Battery Installation Open the battery Install new batteries Replace the compartment lid. into the compartment. compartment lid. Two AAA size batteries For correct polarity (+ and –), be sure battery terminals are in contact with pins in compartment.

  • Page 13: Installation

    Installation Positioning the Projector For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the screen. ✔Note: • The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting in order to obtain the best image.

  • Page 14: Connecting To A Computer

    Use only the supplied VGA/DC power Use only the supplied VGA/DC power combined cord. (Document camera can be powered separately by AC/ DC power supply come with the ELMO document camera "L-1ex/ Monitor Input Monitor TT-02RX", "L-1n/TT-02s" or "CO-10".) Audio Output...

  • Page 15: Connecting To Video Equipment

    Installation Connecting to Video Equipment Cables used for connection • Video Cable • S-Video Cable • S-Video-VGA Cable • Audio Cables (Mini Plug: stereo) (Cables are not supplied with the projector. ) External Audio Equipment S-Video Output Audio Output Audio Input Composite Video and Audio Output S-Video cable Audio...

  • Page 16: Connecting To Component Video And Rgb (Scart) Equipment

    Installation Connecting to Component Video and RGB (Scart) Equipment Cables used for connection • Audio Cables (Mini Plug: stereo) • Scart-VGA Cable • Component Cable • Component-VGA Cable (Cables are not supplied with this projector.) External Audio Equipment Audio Output RGB Scart 21- Component Video Output pin Output...

  • Page 17: Connecting The Ac Power Cord

    Installation Connecting the AC Power Cord This projector uses nominal input voltages of 100-240 V AC and it automatically selects the correct input voltage. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system.

  • Page 18: Basic Operation

    Basic Operation Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The POWER indicator lights red. Open the lens cap (see pages 8, 61). Press the ON/STAND-BY button on the top control or on the remote control.
  • Page 19 Basic Operation Enter a PIN code Use the Point buttons to enter a number. Press the ▲▼ Point buttons to fix the number and move the red ◄ ► PIN Code Input Dialog Box frame pointer to the next box. The number changes to “✳”. If you fixed an incorrect number, use the Point buttons ◄...

  • Page 20: Turning Off The Projector

    Basic Operation Turning Off the Projector Press the ON/STAND-BY button on the top control or on the remote control, and Power off? appears on the screen. Press the ON/STAND-BY button again to turn off the projector. The POWER indicator starts to blink red, and the cooling fans keep running.

  • Page 21: How To Operate The On-Screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Top Control Menu. The menus have a hierarchical structure, with a main menu that is divided into submenus, which are further divided into other submenus. For each adjustment and setting procedure, refer to respective sections in this manual.

  • Page 22: Menu Bar

    Basic Operation Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 68-69. Main Menu Sub-Menu ► Computer 1 ① Computer 2 Video ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ Input ① Used to select an input source from Computer 1, Computer  or Video (pp.27, 36-37).

  • Page 23: Zoom And Focus Adjustment

    Basic Operation Zoom and Focus Adjustment Rotate the Zoom Ring to zoom in and out. Rotate the Focus Ring to adjust the focus of the image. Zoom Ring Focus Ring Auto Setup Function Auto setup function is provided to automatically execute the setting of Auto setup (includes Input search, Auto PC adj.

  • Page 24: Sound Adjustment

    Basic Operation Sound Adjustment Top Control Direct Operation VOLUME+/- Volume buttons Press the VOLUME+/– buttons on the top control or on the remote control to adjust the volume. The volume dialog box appears on the screen for a few seconds. Remote Control Mute Press the MUTE button on the remote control to select On...

  • Page 25: Remote Control Operation

    Basic Operation Remote Control Operation Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. COMPUTER 1/, VIDEO, S-VIDEO and COMPONENT Remote Control buttons COMPUTER 1/...
  • Page 26 Basic Operation NO SHOw button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO SHOW button again or press any other button. When the projected image is captured and is set as User in the Logo selection (p.47), the screen changes each time you press the NO SHOW button as follows.

  • Page 27: Computer Input

    Computer Input Input Source Selection (RGB: Computer 1/Computer ) Direct Operation Choose either Computer 1(RGB) or Computer (RGB) by pressing the COMPUTER 1 or COMPUTER 2 button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below.

  • Page 28: Computer System Selection

    Computer Input Computer System Selection This projector automatically tunes to various types of computers with its Multi-scan system and Auto PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on page 71.) One of the following messages may appear when: When the projector cannot recognize the...

  • Page 29: Auto Pc Adjustment

    Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Menu Operation PC adjust Menu Auto PC adj. Auto PC adj. Fine sync ►...

  • Page 30: Manual Pc Adjustment

    Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has five independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.
  • Page 31 Computer Input Reset To reset the adjusted data, select Reset and press the Mode free SELECT button. A confirmation box appears and then select yes. All adjustments will return to their previous figures. Auto PC adj. Fine sync ► Total dots 1365 Horiznotal Vertical...

  • Page 32: Image Mode Selection

    Computer Input Image Mode Selection Direct Operation Remote Control IMAGE button Select the desired image mode among Dynamic, Standard, Dynamic Real, Blackboard (Green), Colorboard, Image 1, Image , Image  and Image 4 by pressing the IMAGE button on the remote control.

  • Page 33: Image Adjustment

    Computer Input Image Adjustment Press the MENU button to display the On-Screen Image Adjust Menu Menu. Use the Point buttons to select Image ▲▼ adjust and then press the Point or the SELECT ► button. Use the Point buttons select the desired item ▲▼...

  • Page 34: Screen Size Adjustment

    Computer Input Store Where to store? Image 1 Image 2 To store the adjusted data, select Store and press the Point Image 3 ►or the SELECT button. Use the Point buttons to ▲▼ Image 4 ► select one from Image 1 to 4 and press the SELECT button. A confirmation box appears and then select yes.
  • Page 35 Computer Input Custom adj. Adjust the screen scale and position manually with this adj. function. Press the Point button at Custom adj. and the Custom ► adjustment menu is displayed on the screen, you can use the Point buttons to choose the item you want to adjust. ▲▼...

  • Page 36: Video Input

    Video Input Input Source Selection (Video, S-video) Direct Operation Remote Control Choose Video or S-video by pressing the VIDEO or the S- VIDEO button VIDEO button on the remote control. Video Before using these buttons, correct input source should be selected through menu operation as described below.

  • Page 37: Input Source Selection

    Video Input Input Source Selection (Component, RGB Scart 1-pin) Direct Operation Choose Computer 1(Component) or Computer 1(Scart) by pressing the COMPONENT or the COMPUTER 1 button on the remote control. Before using these buttons, correct input source should be selected through Menu operation as described below.

  • Page 38: Video System Selection

    Video Input Video System Selection AV System Menu (Video or S-video) Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Input and ▲▼ then press the Point or the SELECT button. ► Select Video, S-video or Computer 1(Component) input source.

  • Page 39: Image Mode Selection

    Video Input Image Mode Selection IMAGE button Remote Control Direct Operation Dynamic Select the desired image mode among Dynamic, Standard, Cinema, Blackboard (Green), Colorboard, Image 1, Standard Image , Image  and Image 4 by pressing the IMAGE button on the remote control. Cinema Menu Operation Blackboard (Green)

  • Page 40: Image Adjustment

    Video Input Image Adjustment Press the MENU button to display the On-Screen Image Adjust Menu Menu. Use the Point buttons to select Image ▲▼ adjust and then press the Point or the ► SELECT button. Use the Point buttons select the desired item ▲▼...
  • Page 41 Video Input Sharpness Press the Point button to decrease the sharpness of the ◄ image; press the Point button to increase the sharpness ► of the image (from 0 to 15). Gamma Use the Point buttons to adjust the gamma value to ◄►...

  • Page 42: Screen Size Adjustment

    Video Input Screen Size Adjustment This projector has the picture screen resize function, which enables you to customize the image size. Screen Menu Press the MENU button to display the On-Screen Menu. Use the Point buttons to select Screen and ▲▼...

  • Page 43: Setting

    Setting Setting This projector has a Setting menu that allows you to set up Setting Menu the other various functions described below. Press the MENU button to display the On-Screen Menu. Press the Point buttons to select Setting ▲▼ and press the Point or the SELECT button to access ►...

  • Page 44: Auto Setup

    Setting Auto setup Auto setup This function enables Input search, Auto Keystone correction English and Auto PC adjustment by pressing the AUTO SETUP button ► on the top control or the AUTO SET button on the remote Blue control. Settings for those functions can be altered as follows: Input search This function detects the input signal automatically.
  • Page 45 Setting Keystone This function is used to adjust keystone distortion of the Keystone projected image. Use the Point buttons to choose the ▲▼ English item you want to adjust. Keystone ► To correct keystone distortion, press the SELECT button. Blue Keystone appears on the screen.
  • Page 46 Setting Logo (Logo and Logo PIN code lock settings) Logo select This function allows you to customize the screen logo with Logo select, capture, Logo PIN code lock and Logo PIN English code change functions. Store Blue ✔Note: ► When On is selected in the Logo PIN code lock function, Logo select and Capture functions cannot be selected.
  • Page 47 Setting Capture This function enables you to capture an image being Capture projected to use it for a starting-up display or interval of presentations. Select Capture and press the SELECT button. A confirmation box appears and select yes to capture the projected image.
  • Page 48 Setting Enter a Logo PIN code Enter a Logo PIN code Use the Point ▲▼ buttons to enter a number. Press the Point buttons to fix the number and move the red ◄► Logo PIN code frame pointer to the next box. The number changes to ✳.
  • Page 49 Setting Ceiling Ceiling When this function is set to On, the picture will be top/ bottom and left/right reversed. This function is used to project the image from a ceiling-mounted projector. Rear When this function is set to On, the picture will be left/right Rear reversed.
  • Page 50 Setting Power management Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period. Time left before Lamp is off. Select one of the following options: Ready ....
  • Page 51 Setting Standby mode Notes on using the document camera: This function is available when operating the projector via - The projector can supply 12V DC power to network. the document camera at Network mode. When Network ..Supply the power to the network function even using the document camera, set Standby after turning off the projector by pressing the mode to Network.
  • Page 52 Setting Closed Caption Closed Caption Closed Caption is a printed version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and switch the channels. Press the Point buttons to select ▲▼...
  • Page 53 Setting Lamp control Lamp control This function allows you to change brightness of the screen. High ... Brighter than the Normal mode. Normal ..Normal brightness Eco .... Lower brightness reduces the lamp power consumption and extends the lamp life. ✔Note: •...
  • Page 54 Setting Key lock Security (Key lock and PIN code lock) This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation. Key lock This function locks the top control and remote control buttons to prevent operation by unauthorized persons.
  • Page 55 Setting Enter a PIN code Enter a PIN code Use the Point buttons to enter a number. Press the ▲▼ Point buttons to fix the number and move the red ◄ ► frame pointer to the next box. The number changes to ✳.
  • Page 56 Setting This function provides the following options in the cooling fans’ operation when the projector is turned off (p.20). L1 ..Normal operation L ..Slower and lower-sound than the normal operation (L1), but it takes more time to cool the projector down.
  • Page 57 Setting Filter counter Filter counter This function is used to set a frequency for the filter cleaning. When the projector reached a specified time for cleanings, a Filter warning icon appears on the screen, notifying the cleaning is necessary. After cleaning the filter, be sure to select Reset and set the timer.

  • Page 58: Information

    Information Input Source Information Display The Information Menu is used for checking the status of the image signal being projected and the operation of the projector. Direct Operation Press the INFO. button on the remote control to display the Remote Control Information Menu.

  • Page 59: Maintenance And Cleaning

    Maintenance and Cleaning wARNING indicator The WARNING indicator shows the state of the function which protects the projector. Check the state of the WARNING indicator and the POWER indicator to take proper maintenance. The projector is shut down and the wARNING Top Control indicator is blinking red.

  • Page 60: Cleaning The Filters

    Maintenance and Cleaning Cleaning the Filters Filter prevents dust from accumulating on the optical elements inside the projector. Should the filters become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. If a “Filter warning” icon appears on the screen, clean the filters immediately.

  • Page 61: Attaching The Lens Cap

    Maintenance and Cleaning Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, replace the lens cap. Attach the lens cap according to the following procedures. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place.

  • Page 62: Lamp Replacement

    Maintenance and Cleaning Lamp Replacement When the projection lamp of the projector reaches its end Top Control of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights yellow. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp LAMP REPLACE mode.

  • Page 63: Lamp Handling Precautions

    Maintenance and Cleaning ORDER REPLACEMENT LAMP Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Model No. of your projector : CRP-1, CRP-61 ● Replacement Lamp Type No. : POA-LMP14 ●...

  • Page 64: Appendix

    Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. – Make sure you have properly connected the projector to peripheral equipment as described on pages 14-16. – Make sure all equipment is connected to AC outlet and the power is turned on. –...
  • Page 65 Appendix No image – Check the connection between your computer or video equipment and the projector. See pages 14-16. – See if the input signal is correctly output from your computer. Some laptop computers may need to change the setting for monitor output when connecting to a projector.
  • Page 66 Appendix The image is distorted or runs off. – Check PC adjust menu or Screen menu and adjust them. See pages 30-31, 34-35. PIN code dialog box appears – PIN code lock is being set. Enter a PIN code (the “1234” or numbers at start-up.
  • Page 67 Appendix wARNING : High voltages are used to operate this projector. Do not attempt to open the cabinet. If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.

  • Page 68: Menu Tree

    Appendix Menu Tree Computer Input/Video Input Input Input Computer 1 Component RGB (Scart) S-video Computer 2 Video Sound Sound Volume 0–31 Mute On/Off Computer Input Image select Dynamic System SVGA 1 Standard Mode 1 Real Mode 2 Blackboard (Green) Colorboard Red/Blue/Yellow/Green - - - - Image 1...
  • Page 69 Appendix Video Input Setting Setting System Auto Language 20 languages provided. 1080i Menu position 1035i Auto setup Input search Off/On1/On2 720p Auto PC adj. 575p On/Off 480p Auto keystone 575i Auto 480i Manual System Auto Keystone Keystone SECAM Store/Reset Store NTSC Background Blue/User/Black...

  • Page 70: Indicators And Projector Condition

    Appendix Indicators and Projector Condition Check the indicators for projector condition. Indicators Projector Condition LAMP POWER WARNING REPLACE red/green yellow The projector is off. (The AC power cord is unplugged.) The projector is in stand-by mode. Press the ON/STAND-BY button ✽...

  • Page 71: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V-, H-Frequency mentioned below and less than 140 MHz of Dot Clock. When selecting these modes, PC adjustment can be limited. ON-SCREEN H-Freq. V-Freq. ON-SCREEN H-Freq.

  • Page 72: Technical Specifications

    1.0 W RMS Built-in Speaker 1 speaker, ø1.1" (28mm) Power CRP-221, CRP-261: Voltage and Power Consumption AC 100–120 V (3.6A Max. Ampere), 50/60 Hz (The U.S.A and Canada) AC 100–240 V (3.6A -2.0A Max. Ampere), 50/60 Hz (For other countries)

  • Page 73: Optional Parts

    Appendix Accessories Owner’s Manual (CD-ROM) Quick Reference Guide & Safety Manual AC Power Cord Remote Control and Batteries VGA/DC power combined cord Lens Cap with String PIN Code Label Network Application (CD-ROM) Ferrite core The specifications are subject to change without notice. ●...

  • Page 74: Pj Link Notice

    Appendix Pj Link Notice This projector is compliant with PJLink Standard Class 1 of JBMIA (Japan Business Machine and Information System Industries Association). This projector supports all commands defined by PJLink Class 1 and is verified conformance with PJLink Standard Class 1. For PJ Link password, see the owner’s manual of “Network Set-up and Operation.”...

  • Page 75: Configurations Of Terminals

    Appendix Configurations of Terminals COMPUTER IN 1 / S-VIDEO IN/ COMPONENT IN Terminal: Analog RGB (Mini D-sub 15 pin) Red/Cr/S-C Input +5V Power Green/Y/S-Y Input Ground (Vert.sync.) Blue/Cb/--- Input Ground ----- DDC Data Ground (Horiz.sync.) Horiz. sync. Input/Output (Composite H/V sync.) Ground (Red) Vert.

  • Page 76: Pin Code Number Memo

    Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No. Factory default set No: 1 2 3 4* Logo PIN Code Lock No.

  • Page 77: Dimensions

    Appendix Dimensions Unit: mm(inch) Screw Holes for Ceiling Mount Screw: M4 Depth: 10.0(0.39) 333.5 217.0 (13.13) (8.54) 99.5 10.0 50.0 (3.92) (0.39) (1.97) 51.0 (2.01)
  • Page 78 OVERSEAS SUBSIDIARy COMPANIES U.S.A. ELMO USA CORP. Headquarters 1478 Old Country Road Plainview, NY 11803-5034, U.S.A Tel:(516) 501-1400 Fax:(516) 501-0429 E-mail: elmo@elmousa.com Web: http://www.elmousa.com west Coast Branch Cypress Pointe Business Park 5676 Corporate Avenue Cypress, CA 90630, U.S.A Tel:(714) 828-8457 Fax:(714) 828-8429 ELMO Europe SAS 7C Place du Dôme,...
