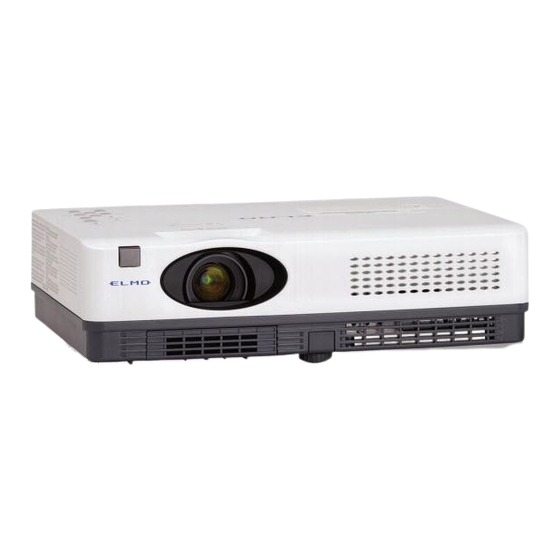

Elmo CRP-26 Quick Reference Manual

Classroom projector
Hide thumbs Also See for CRP-26:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
CRP-22
CRP-26
Classroom Projector

Quick Reference Guide

Use this book as a reference guide when
setting up the projector. For detailed
information about installation, setup, and
operation of the projector, refer to the
owner's manual on the CD-ROM.
READ THE SAFETY INSTRUCTIONS
IN THE OWNER'S MANUAL (CD-ROM)
BEFORE USING THE PROJECTOR.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRP-26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elmo CRP-26

Summary of Contents for Elmo CRP-26

  • Page 1: Quick Reference Guide

    CRP-22 CRP-26 Classroom Projector Quick Reference Guide Use this book as a reference guide when setting up the projector. For detailed information about installation, setup, and operation of the projector, refer to the owner’s manual on the CD-ROM. READ THE SAFETY INSTRUCTIONS IN THE OWNER’S MANUAL (CD-ROM)
