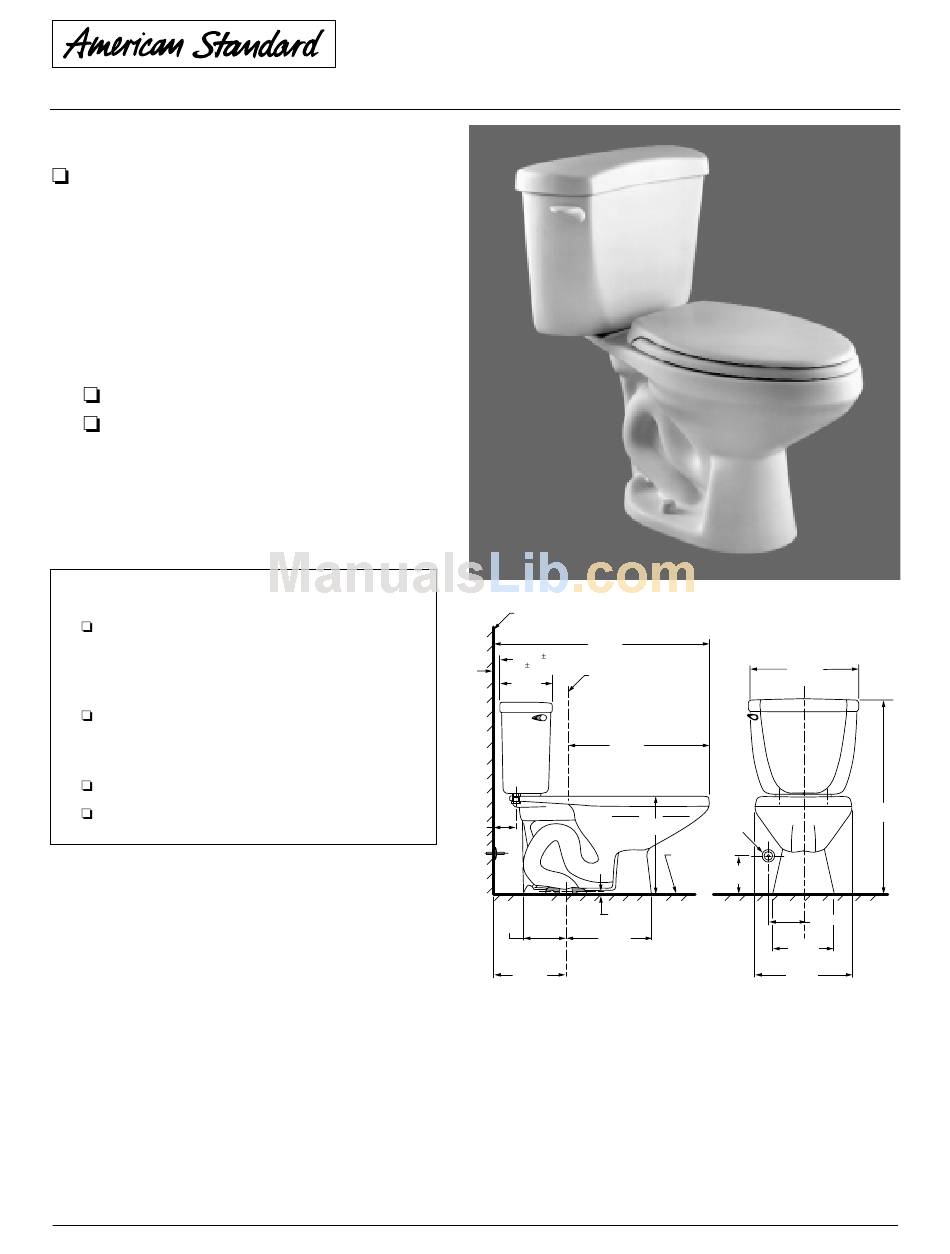

American Standard Compact Right Height Elongated Toilet 3505.000 Specification Sheet

COMPACT™ RIGHT HEIGHT™ EL TOILET
3505.000
• Vitreous china
• Low-consumption (1.6 gpf/6.0 Lpf)
• Exclusive space saving feature
• Elongated siphon action bowl
• Fully glazed trapway
• Close-coupled tank
• Sanitary bar on bowl
• 2 bolt caps
• 100% factory flush tested
3029.016 Bowl
4010.012 Tank
Nominal Dimensions:
27-1/2" x 19" x 31-3/8"
(699 x 483 x 769mm)
Fixture only, seat and supply by others
To Be Specified
Seat: American Standard #5324.019 "Rise and
Shine" (with easy to clean lift-off hinge system)
solid plastic closed front seat with cover.
See page TB-001.
Seat: American Standard #5311.012 "Laurel"
molded closed front seat with cover.
See page TB-001.
Alternate Seat:
Supply with stop:
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M (and 19.6M) for Vitreous
China Fixtures - includes Flush Performance,
Ball Pass Diameter, Trap Seal Depth and
all Dimensions
6/02
COMPACT™ RIGHT HEIGHT™
FINISHED WALL
25mm 6mm
(1 1/4)
187mm
(7-3/4)
83mm
(3-1/4)
165mm
(6-1/2)
305mm
(12)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM
(12") FROM FINISHED WALL TO C/L OF OUTLET.
*
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance
established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility is assumed for use
of superseded or voided pages.
SPS 3505.000
©2002 American Standard Inc.
ELONGATED TOILET
699mm
(27-1/2)
C/L OF SEAT
POST HOLES
140mm (5-1/2)
CENTERS
470mm
(18-1/2)
419mm
SUPPLY
(16-1/2)
AS
REQ'D
FINISHED
FLOOR
*
222mm
(8-3/4)
16mm
(5/8)
248mm
(9-3/4)
VITREOUS CHINA
483mm
(19)
769mm
(31-3/8)
*
152mm
(6)
235mm
(9-1/4)
368mm
(14-1/2)
