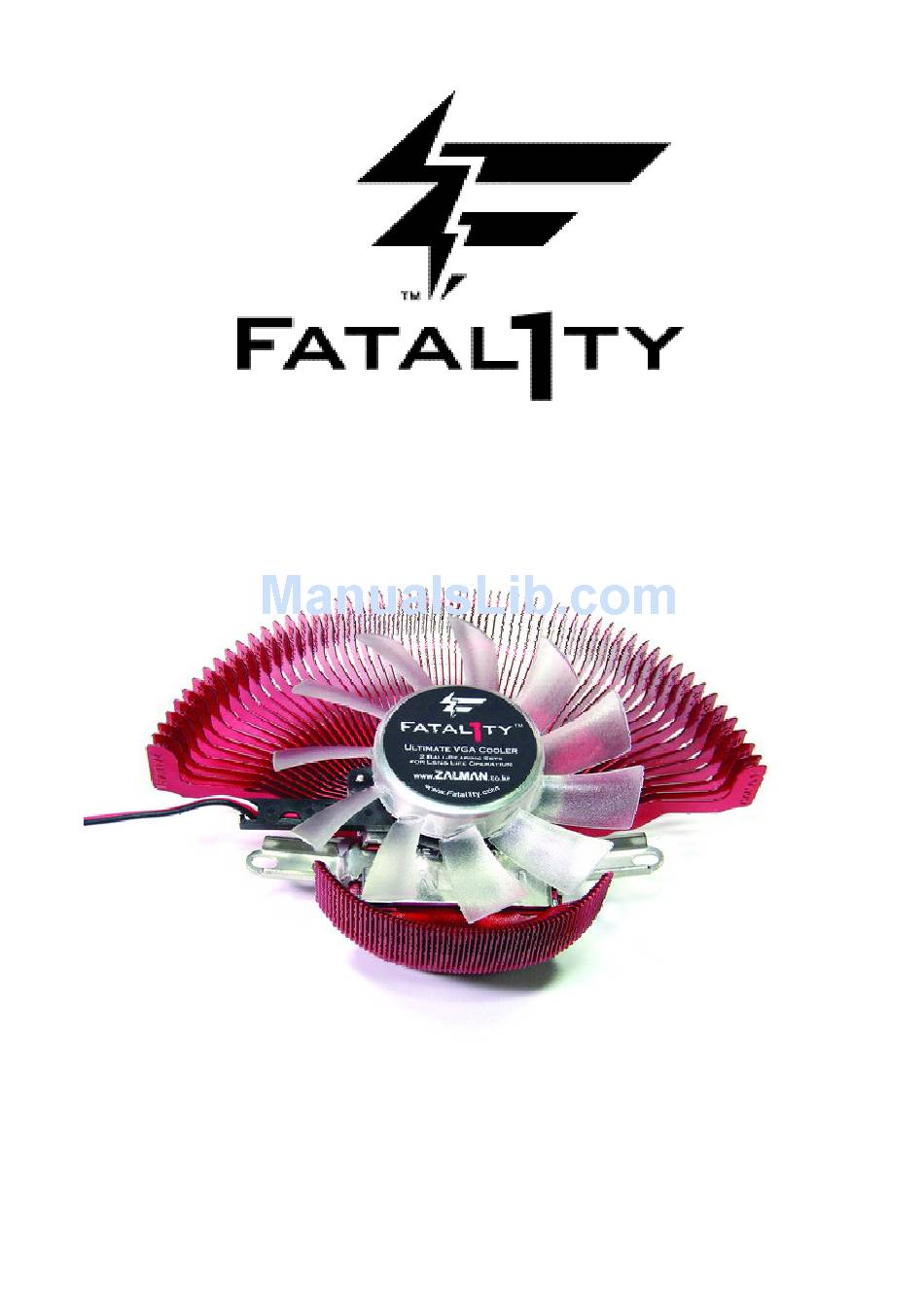

- Page 1 VGA Cooler FS-V7 User’s Manual www.fatal1ty.com...
- Page 2 FATAL1TY STORY Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I actually played competitive billiards in professional tournaments and won four or five games off guys who played at the highest level.
- Page 3 Partners This is just the beginning. We’re already in development for a whole range of new products, and I’m really grateful to all my partners, such as Zalman, for helping make my dreams a reality. I know there is a business side to all of this, but for me the true reward is making products that are so good I can win with them –...
-
Page 4: Specifications
** www.zalman.co.kr Disclaimer Zalman Tech Co., Ltd., Fatal1ty, Inc., and any of its partners are not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. - Page 5 4. Components ① FHS Assembly(Flower Heatsink & Fan) ② Eight (8) RAM Heatsinks ③ One (1) Brace Plate ④ Two (2) Nipple ‘A’ ⑤ Two (2) Nipple ‘B’ ③ ② ⑥ Four (4) Bolt 'A' (Ø3 x 5mm) ① ⑦ Four (4) Bolt 'B' (Ø4 x 4mm) ⑧...
-
Page 6: Installation Procedure
6. Installation Procedure ※The following installation sequence MUST be followed. (Nipple ‘A’ and ‘B’ → Brace Plate → VGA RAM Heatsinks → Thermal Grease Application → VGA Cooler → VGA Card → Supply Power) 1) Nipple ‘A’ 2) Rubber Ring 3) Mounting Hole 4) Rubber Ring Nipples... - Page 7 2) Screwdriver 3) Bolt 'B' 4) Nipple ‘B’ 1) Brace Plate 6.2) Install the Brace Plate Use each Bolt 'B' to attach the Brace Plate to each Nipple ‘B’ as shown in the diagram. 6.3) Attach the VGA RAM Heatsinks Remove the Film from the Thermal Tapes 3) RAM Heatsink on the bottom of the RAM Heatsinks and...
- Page 8 If the VGA card has a power connector on it, remember to plug in the power cable. 2) FS-V7 Fan Connector 6.7) Supply Power to the Fan 3) 5V Connect the Multi-Connector to the power supply’s 4-pin connector as 4) Multi-Connector 3-Pin shown in the diagram.
- Page 9 Fatal1ty and the Fatal1ty logo are trademarks of Fatal1ty, Inc. under the master license of Auravision, Inc. Zalman and the Zalman logo are trademarks of Zalman Tech Co., Ltd. ©2005 Zalman Tech Co., Ltd. All rights reserved.
