Summary of Contents for SoundMax SM-LCD711

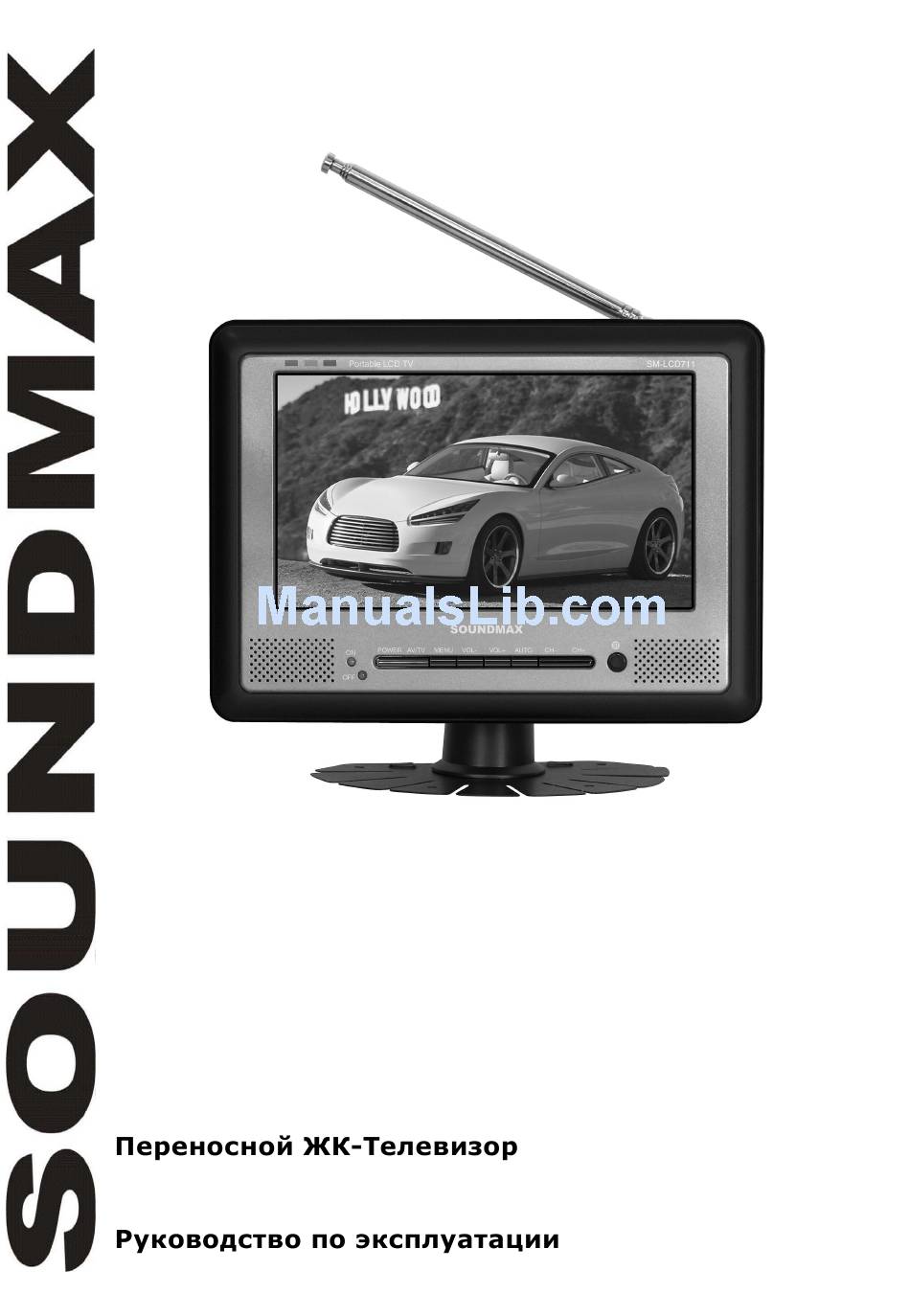

- Page 1 SM-LCD711 Portable LCD Color TV Instruction manual...
-
Page 2: Table Of Contents
Dear consumer! Thank you for purchasing the TFT-LCD color television. To enjoy the features of this unit and to ensure safety and years of trouble-free operation, be sure to carefully read this manual and follow the instructions contained herein. Contents Contents ................ -
Page 3: Caution
Caution Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it. Do not expose the TV to high humidity, dust, steam, oil, smoke, direct sunlight etc. -
Page 4: Aspect
Aspect Front panel TFT-LCD screen Speakers Power indicator ON Power indicator OFF POWER button AV/TV button MENU button VOLUME -/+ button AUTO button CH -/+ button Remote receiving window Antenna IN jack Telescopic antenna Side panels Right Left AV1 IN jack AV2 IN jack Earphone jack Power switch ON/OFF... -
Page 5: Remote Control (Rc)
Remote control (RC) MENU button VOL-/VOL+ buttons MUTE button MODE button Number buttons Two-digit button HORIZONTAL button VERTICAL button CH-/CH+ buttons 10. POWER button 11. CALL button 12. TIMER button 13. LANG button 14. CALE button 15. VIDEO button 16. RETURN button 17. - Page 6 TIMER button: Time setup of sleep off, it is used to set the time off within 120 minutes. LANG button: Press this button to switch between OSD menu languages. CALE button: Press this button to show Year, Month, Day and Week. Press CH+/CH- buttons to adjust the year, press VOL+/VOL- buttons to adjust the month.
-
Page 7: Power Selection
Power Selection 220V AC adapter AC adapter (refer to product tag attached to the AC adapter) supplies power to the television from 220V alternating current. Automobile storage battery with 12V DC Use automobile adapter (suitable for vehicles with negative grounding) to supply power to the television from the automobile's storage battery. - Page 8 Connection of the telescopic antenna: Align the telescopic antenna plug with the external antenna jack on TV set and just plug in till its end. Earphone connection Align the earphone plug with the earphone jack on the right side panel, just plug in till its end.
-
Page 9: Menu Operation
Menu operation Press MENU button on the unit or RC to select among different Menu pages, i. e. Picture, Option, Clock, System and Preset. Press CH+/CH- buttons to select an item and press VOL+/VOL- buttons to change setting. Menu “Picture” In this menu you can choose following items to adjust: Contrast, Brightness, Color (for color saturation) and Sharp... -
Page 10: Menu "System
Off-Time: When you have adjusted the time, you can set time for "Off-Time". Use CH+/CH- buttons to enter this item, then press VOL+/VOL- buttons to set it to "00:00". Press VOL+ button again to increase the time by one minute. Press VOL- button to increase the time by one. -
Page 11: In Order To Receive Clearer Picture
Band: You may choose the band where to search the channel. You can choose V-L, V-H, UHF, and return to Program No.0 upon completion. Swap: Press CH+/CH- buttons to choose the program swap item. The function allows you to swap the current channel number to another one. -
Page 12: Troubleshooting
Troubleshooting The following occurrences do not indicate that the television is faulty. Before you request repair, follow the listed methods to check the device. Occurrences Possible reasons No picture and Battery pack is exhausted or not making contact, sound AC adapter or automobile adapter is not properly connected. -
Page 13: Specification
Specification Product name: 7" portable LCD color television Receivable channels: 48.25 MHz - 863.25 MHz Resolution: 1440(H) x 234(V) Brightness: 300 cd/m² Contrast: 300:1 Audio input: 0.3 W Response Speed (ms): R: 30 / F: 40 View Angle: 120 (V), 120 (H) Connectors: external antenna input jack, stereo earphone jack, 2 audio/video input jacks, external... - Page 14 ..............14 ..........15 ..........15 ..............16 ..............17 ............17 ............17 ......18 ............18 ..........20 ..........20 ............. 22 ............ 22 « » ..........22 « » ............... 22 « » ............23 « » ............
- Page 15 -20° +60° . 0° +40° .
- Page 16 (75 Ohm)
- Page 17 POWER AV/TV MENU VOLUME-/+ AUTO CH-/+ AV1 IN AV2 IN ON/OFF 12V DC...
- Page 18 MENU VOL-/VOL+ MUTE MODE HORIZONTAL VERTICAL CH-/CH+ POWER CALL TIMER LANG CALE VIDEO RETURN AUTO P.MODE – 2 POWER CH+/CH-. (0 – 255). «- -»), CH-/+: VOL-/+: VOL- VOL+ MODE: POWER: MENU:...
- Page 19 MUTE: VOL+/VOL- CALL: TIMER: LANG: CALE: CH-/CH+ VOL+/VOL- VIDEO: TV/AV. AUTO: RETURN: HORIZONTAL: VERTICAL: P.MODE: : 16:9, 4:3.
- Page 20 DC12V.
- Page 21 AV1: ) – AV1 IN AV2: ) – AV2 IN...
- Page 22 MENU CH+/-, VOL+/-, « » NTSC – « » CH+/CH-, VOL+/VOL, CH+/CH-, VOL+/VOL-, VOL+/VOL-, VOL+ VOL- 360. POWER, « » VOL+/VOL-, CH+/CH-, VOL– VOL+ VOL+/VOL-, CH+/CH-, VOL– VOL+ CH+/CH-, VOL+/VOL-,...
- Page 23 «00:00», VOL+, VOL-, (00:00), VOL- VOL+ VOL+/VOL-, VOL+, VOL-, CH+/CH-, « ». VOL+/VOL-, « » CH+/CH-, VOL+/VOL, , PAL, SECAM. CH+/CH-, VOL+/VOL-, (BG5.5 m, I6.0 m, DK/L6.5 m). « ». VOL+/VOL-, VOL+/VOL-, VOL+/VOL-, : 16:9, 4:3.
- Page 24 « » VOL+/VOL- : V-L, V-H, UHF. CH+/CH-, CH+/CH-, VOL+/VOL-, CH+/VOL-, VOL+/VOL-, CH+/CH-, VOL+/VOL-, CH+/CH-, VOL+/VOL-, – VOL+/VOL-, VOL+/VOL- MENU, CH+/CH-, NTSC. VOL+/VOL-. CATV.
- Page 25 TV/AV « »...
- Page 26 7" 48.25 - 863.25 1440 ( ) x 234 ( ) ² 300:1 R: 30 / F: 40 120 ( ), 120 ( ) – (12 ) ~ 10 ( ) x 149 ( ) x 36 ( ) ~ 0,583...
