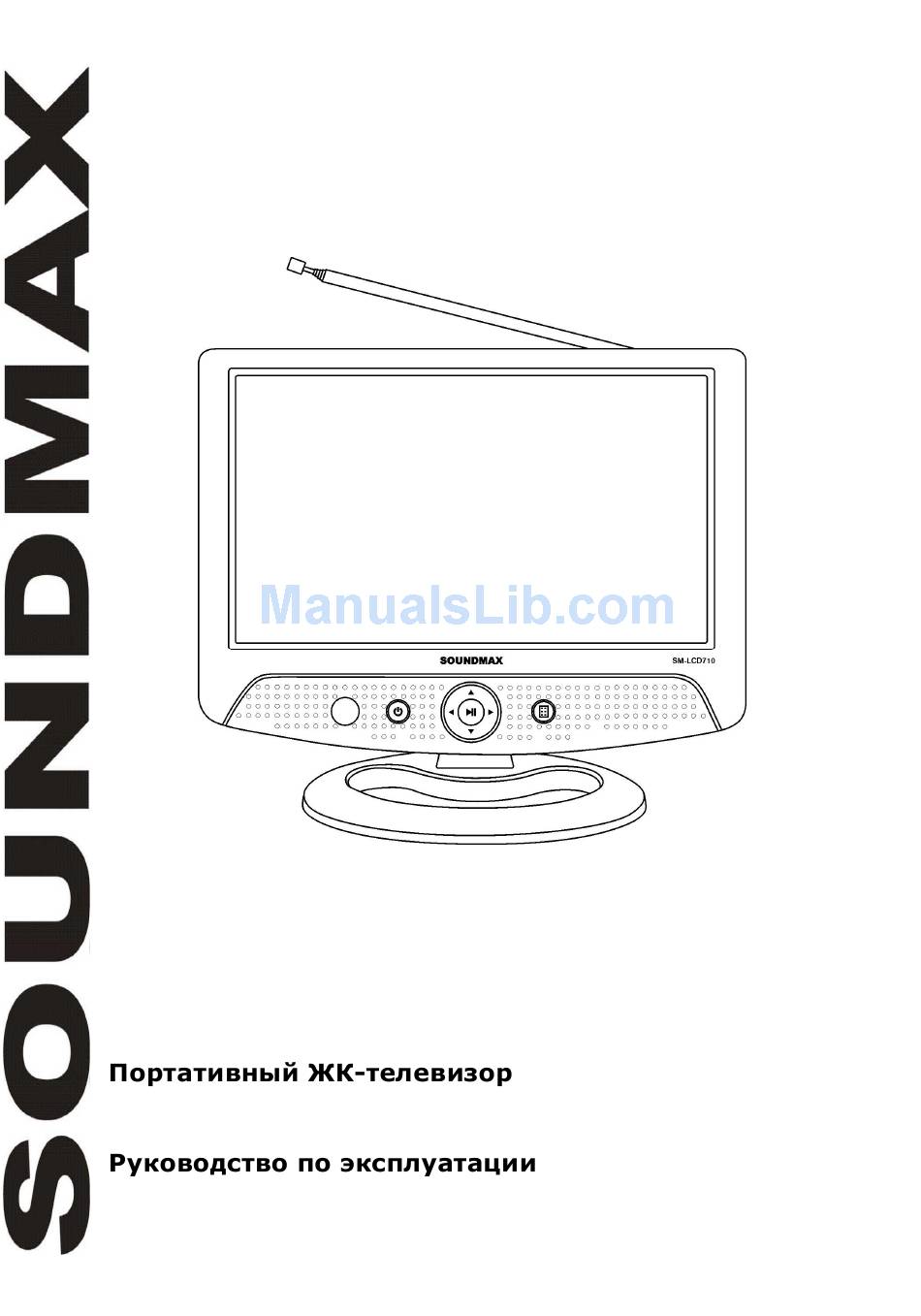

  • Page 1 SM-LCD710 Portable LCD TV Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing the LCD color television. To enjoy the features of this unit and to ensure safety and years of trouble-free operation, be sure to carefully read this manual and follow the instructions contained herein. Contents Contents ................2 Safeguards ................3 Earphone operation precautions..........3...

  • Page 3: Safeguards

    Safeguards Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it. Do not expose the TV to high humidity, dust, steam, oil, smoke, direct sunlight etc.

  • Page 4: Description

    Description Front panel Telescopic antenna Display PLAY/PAUSE button IR sensor POWER button VOL-/+ buttons CHANNEL-/+ buttons MENU button Side panel Antenna switch 10. Antenna in jack 11. Audio/video in jack 12. Phone jack 13. 5V DC Power jack Remote control (RC) POWER button TIMER button SOUND SYSTEM button...

  • Page 5: Button Functions

    Caution: Please align the RC with the infrared-receiving window on TV set in operation. Never oppress, drop, wet or disassembly the RC. Never press any button continuously and swiftly. Operation interval is at least 2 seconds. Button functions Number buttons and multiple digit button: When the channel is a one-digit figure, just press the corresponding number button.

  • Page 6: Power Selection

    Power Selection Power adaptor: AC adapter supplies power to the television from 220V alternating current. Car adaptor: The car adaptor (please use the included device only) allows the TV to be powered by a car battery through the vehicle's cigarette lighter. Installation and connection Installation of Stand: Insert the fixing part of the stand into the gutter of the bracket on the rear of...

  • Page 7: Menu Operation

    Menu operation Press MENU button on the unit or RC to display the on-screen menu. Press P+/P- buttons on the RC or CHANNEL+/CHANNEL- buttons on the panel to select menu pages: Picture, Function, Tuning, Timer. Press VOL+ button or PLAY/PAUSE button to go to parameter list on the selected page.
  • Page 8 On Time: Setup the time of automatic switch-on of the unit. Select ON to enable the function. Available: Every (the selected On-Time and Off-Time will be valid every day) and Once (the selected On-Time and Off-Time will be valid only for one time).

  • Page 9: Troubleshooting

    Troubleshooting The following occurrences do not indicate that the television is faulty. Before you request repair, follow the listed methods to check the device. Occurrences Possible reasons No picture and AC adapter or Car adapter is not properly connected. sound Uncertified power is being used.

  • Page 10: Specification

    Specification Receivable channels: 48 MHz - 870 MHz Resolution: 480 (H) x 234 (V) Brightness: 350 cd/m² Contrast: 300:1 Response speed (ms): View angle: 120 (V), 120 (H) Connectors: external antenna input jack, stereo earphone jack, audio/video input jack, external power jack Power supply: AC adapter, Car adapter Power consumption:...
  • Page 11 ..................11 ..............12 ............... 12 ..................12 .................... 13 ................13 ................13 ).......... 13 ................14 ..............15 ..............15 ................... 16 “ ” ..............16 “ ” ................ 16 “ ” ..............16 “ ” ................16 ..............
  • Page 12 20° +60° . 0° +40° .
  • Page 13 PLAY/PAUSE POWER VOL+/VOL- CHANNEL+/CHANNEL- MENU POWER TIMER SOUND SYSTEM CALENDAR MODE P+/P- MUTE INFO SCREEN RETURN BROWSE MENU PLAY/PAUSE VOL+/VOL- PICTURE MODE...
  • Page 14 – 2 «- - »), CHANNEL-/CHANNEL+ ( P-/P+ VOL-/+: VOL- VOL+ MODE: i-Pod POWER: MENU: MUTE: VOL+/VOL- BROWSE: TIMER: CALENDAR: P-/P+ VOL+/VOL- RETURN: PLAY/PAUSE: SCREEN: : 16:9 4:3. SOUND SYSTEM: INFO: PICTURE MODE:...
  • Page 15 – (VCD/DVD-...
  • Page 16 MENU P+/P- CHANNEL+/CHANNEL- VOL+ PLAY/PAUSE P+/P- CHANNEL+/CHANNEL- VOL+/VOL-. MENU “ ” “ ” (16:9 4:3). “ ” “ ” VOL+/VOL-, VOL+/VOL-,...
  • Page 18 « »...
  • Page 19 - 870 480 ( ) x 234 ( ) ² 300:1 120 ( ), 120 ( ) , 800 ( ) x 160 ( ) x 27 ( ) ~ 0,46...
