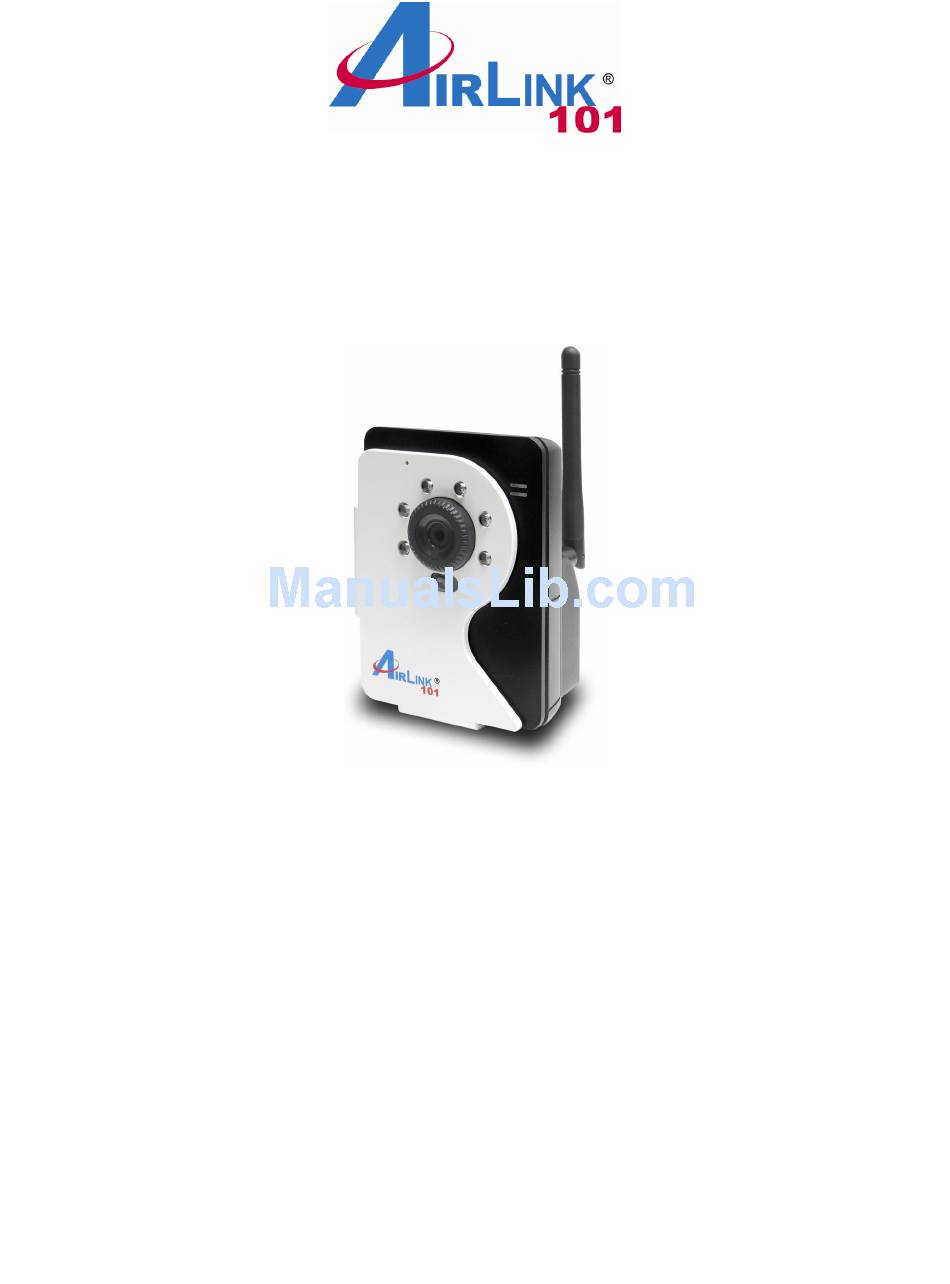

Quick Installation Guide

SkyIPCam1500W
Wireless N Night Vision Network Camera
Model # AICN1500W
Ver. 1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AICN1500W and is the answer not in the manual?

Questions and answers

Related Manuals for Airlink101 AICN1500W

Summary of Contents for Airlink101 AICN1500W

  • Page 1: Quick Installation Guide

    Quick Installation Guide SkyIPCam1500W Wireless N Night Vision Network Camera Model # AICN1500W Ver. 1A...
  • Page 2 Package Contents Wireless N Night Vision Network Camera • Antenna • Camera Stand • Power Adapter • Ethernet Cable (Cat.5) • Utility CD • Quick Installation Guide • System Requirement • Accessing the Camera using Web Browser - Supported Browsers*: Microsoft® Internet Explorer 6.0 or above; Apple Safari, Mozilla Firefox with JAVA plug-in CPU: Intel Pentium III 350MHz or above...

  • Page 3: Getting Started

    Section 1 This Quick Installation Guide only provides basic instructions. For detailed information on using this product, including the bundled software SkyIPCam UltraView, please refer to the User’s Manual on the supplied CD. Getting Started Step 1.1 Attach the included external antenna to the camera. Step 1.2 Connect one end of the Ethernet cable to the IP Camera and connect the other end to one of the LAN ports on your router or switch.
  • Page 4 Section 2 Installing the SkyIPCam Utility and UltraView Step 2.1 Insert the provided CD into your computer’s CD ROM drive. Step 2.2 Click on Install Utility and Software.
  • Page 5 Note: If you do not see the autorun menu pops up on the screen, please go to your CD-ROM drive > UltraView folder > run “Setup.exe”. Windows 7 and Vista users: an AutoPlay window pops up on screen, please make sure you give permission to run the setup program by clicking Autorun.exe.
  • Page 6 Step 2.4 Click Finish when installation finishes.

  • Page 7: Configuring The Camera

    Section 3 Configuring the Camera Step 3.1 Go to Start > (All) Programs > Airlink101 SkyIPCam UltraView > SkyIPCam Utility. Step 3.2 Click on Search to find the camera on your network. Select the Camera you wish to configure and click on Link.
  • Page 8 Step 3.3 You may simply accept the suggested default setting DHCP if your router’s DHCP server is enabled, so the router will automatically assign a dynamic IP address to your camera. Another option is to select Static IP, you can manually change the last 3-digit number of the IP Address, in case that the suggested one has already been used by another device in the same network.
  • Page 9 Step 3.5 When you are prompted for the user name and password, enter “admin” for both User name and Password, and click OK. Step 3.6 The camera viewing window will appear. Click on Setup, and then click on Smart Wizard.
  • Page 10 Step 3.7 Enter a name for your camera and a location if you like. Then enter “admin” for both Admin Password and Confirm Password. Click Next. Step 3.8 You can change the camera’s IP settings in the below window. If you have done this in Step 3.3, click Next and go to the next step.
  • Page 11 Step 3.9 If you would like to set up email alerts that you can receive in the future, enter your email information here. You can get this information from your internet service provider. You can also set this up at a later time. Click Next.
  • Page 12 Step 3.11 Confirm your settings at the last window. If everything is correct, click Apply and the configuration is completed.

  • Page 13: Viewing Images

    Section 4 Viewing Images Method 1 --- Access from Web Browser Step 4.1 If you know the IP address of your network camera, you may open the Web Browser on your computer. Step 4.2 Type the IP address of your camera (the default IP is 192.168.2.240) in the Address bar, and then press [Enter].
  • Page 14 Step 4.4 If it is the first time for your computer to access the Web based viewing page, you may be prompted to install the software of ActiveX Control. Click on the bar on top of the screen and click on Run Add-on or Install ActiveX Control (depends on different IE versions).
  • Page 15 Step 4.6 To get a clear view of images, you can simply rotate the camera’s lens clockwise or counter-clockwise to adjust the focus.
  • Page 16 Method 2 --- Access from SkyIPCam Utility Step 4.7 Go to Start > (All) Programs > AirLink101 > AirLink101 SkyIPCam UtraView, and open the Airlink101 SkyIPCam Utility. Step 4.8 Select your camera from the list and click Link Step 4.9...

  • Page 17: Technical Support

    (e.g., cordless telephones and microwaves) as well as network overhead lower actual data throughput rate. Specifications are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2008 AirLink101®...
