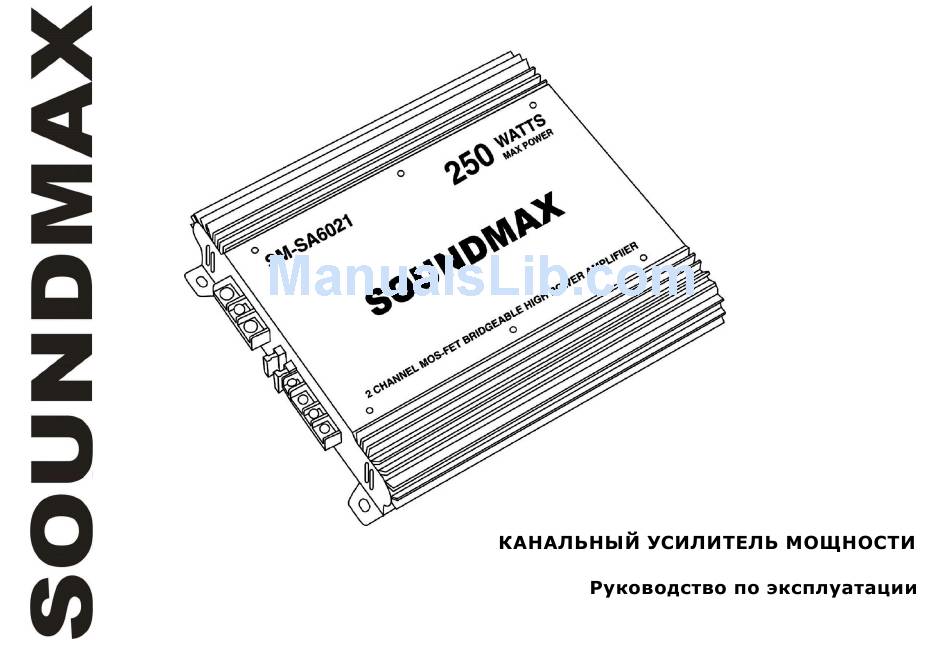

- Page 1 SM-SA6021 2-CHANNEL CAR AMPLIFIER Instruction manual...
-
Page 2: Table Of Contents
FIG. 2 POWER SUPPLY/REMOTE TURN-ON CONNECTION ..................8 FIG. 3 STEREO MODE..............................9 FIG. 4 BRIDGE MODE WITH STEREO CAR RADIO ....................10 FIG. 5 DUAL MODE SYSTEM............................. 11 FIG. 6 OPERATING ELEMENTS AND IN/OUTPUTS....................12 TROUBLE SHOOTING GUIDE ............................ 13 SPECIFICATION ................................14 SOUNDMAX SM-SA6021... -
Page 3: Features
NEVER mount the amplifier in a location that is subject to direct sunlight or exposed to moisture. Be sure to mount the amplifier to a strong, solid surface which will not give way under the stress of a sudden stop or accident. SOUNDMAX SM-SA6021... - Page 4 Do not listen to high volumes for extended periods of time or hearing damage may occur. CONTINOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER 100dB MAY CAUSE PERMANENT HEARING LOSS. HIGH POWERED AUTOSOUND SYSTEM MAY PRODUCE SOUND PRESSURE LEVELS WELL OVER 130dB. USE COMMON SENSE AND PRACTICE SAFE SOUND. SOUNDMAX SM-SA6021...
-
Page 5: Installation
MDF or wood panel, drill four 3.0m/m diameter holes into mounting surface. 4. If possible, test the system operating before final mounting of the amplifier. 5. Mount the amplifier using the supplied 4 self-threading screws. self-threading screws- Fig. 1 SOUNDMAX SM-SA6021... -
Page 6: Connections
Do not connect the +12V power supply to a loudspeaker output otherwise this will destroy the amplifier terminals. NOTE: If the amplifier is operated with lower terminal resistance or incorrectly application as described above, both the amplifier and the loudspeakers may be damaged. The warranty becomes void in such cases. SOUNDMAX SM-SA6021... -
Page 7: Operation Elements And In / Outputs
And the result does not reduce the bass level when it is used for small power-supply loudspeakers. BASS-BOOST Use the bass-boost function (4) to eliminate harmonic distortion of the lower bass frequencies and weaken the bass faction. SOUNDMAX SM-SA6021... -
Page 8: Fig. 2 Power Supply/Remote Turn-On Connection
An on/off switch should be inserted in this case. Make sure that this switch is turned off if the amplifier is not used. Fig.2 Note: Place the fuse in the power supply lead as close as possible to the car battery. SOUNDMAX SM-SA6021... -
Page 9: Fig. 3 Stereo Mode
Note: if you want to use an amplifier in standard 2CH speaker system, connect the speakers as illustrated above and switch the CROSSOVER to OFF. The output signals to speaker will be a standard stereo of the right and left output signals. SOUNDMAX SM-SA6021... -
Page 10: Fig. 4 Bridge Mode With Stereo Car Radio
Note: if you want to use the amplifier in monaural system, comply with above illustration to connect and choose the CROSSOVER to LPF. The output signals to the subwoofer will be a combination of both the right and left output signals. SOUNDMAX SM-SA6021... -
Page 11: Fig. 5 Dual Mode System
CROSSOVER to OFF. The output signals to the amplifier will be stereo of the right and left output signals and the subwoofer will be a combination of both the right and left output signals. SOUNDMAX SM-SA6021... -
Page 12: Fig. 6 Operating Elements And In/Outputs
16.OUTPUT L (-) left speaker connections(-), when used as a bridging amplifier, bridge mode(-). 17.OUTPUT L (+) left speaker connections(+). 18.OUTPUT R (-) right speaker connections(-). 19.OUTPUT R (+) right speaker connections(+), when used as a bridging amplifier, bridge mode(+). SOUNDMAX SM-SA6021... -
Page 13: Trouble Shooting Guide
RCA cables Ticking noise on Check RCA audio cable; Install an in-line noise Amplifier is peaking up radiated spark audio with engine filter on the head unit’s power wire, check noise running spark plug wires SOUNDMAX SM-SA6021... -
Page 14: Specification
Specification SM-SA6021 MODEL Stereo /Bridged Average output power 4 Ohms, 10% THD. 60W x 2 at 4 0hms Maximum output power 250 W Loudspeaker impedance (stereo) 4-8 Ohms Frequency response 5Hz-22kHz (-3dB-+1dB) Total harmonic distortion <0.05% (1 kHz) Signal to Noise Ratio >98dB (IHF, A-weighting) - Page 15 – ................................15 ................................. 16 ..........................16 ................................18 ..........................19 ................................20 .2)....................21 .3)............................22 .4) ............................ 23 . 5) ........................24 .6)...................... 25 ....................26 ........................27 SOUNDMAX SM-SA6021...
- Page 16 «A » MOSFET PWM. 0-12 RCA, SOUNDMAX SM-SA6021...
- Page 17 « ». +12 . SOUNDMAX SM-SA6021...
- Page 18 – SOUNDMAX SM-SA6021...
- Page 19 +12B 40 ). 0,75 « » SOUNDMAX SM-SA6021...
- Page 20 . 6), “LPF”. (3), “HPL”. (2). Bass-Boost (4). SOUNDMAX SM-SA6021...
- Page 21 +12V remote SOUNDMAX SM-SA6021...
- Page 22 CROSSOVER OFF. SOUNDMAX SM-SA6021...
- Page 23 . 4, CROSSOVER LPF. SOUNDMAX SM-SA6021...
- Page 24 . 5) CROSSOVER OFF. SOUNDMAX SM-SA6021...
- Page 25 10.POWER (GND) 11.REMOTE 12.+B (+12V) +12V. ( 13. POWER - (GREEN) PROTECTOR - (RED) 14.FUSE - (1) 15-FUSE - (2) 16.OUTPUT L (-) (-), (-). 17.OUTPUT L (+) (+). 18.OUTPUT R (-) (-). 19.OUTPUT R (+) (+), (+). SOUNDMAX SM-SA6021...
- Page 26 , RCA SOUNDMAX SM-SA6021...
- Page 27 SM-SA6021 <0.05% (1 k >98 (IHF, A-weighting) 0.3-6 30-250 , - 12 30-5 , - 12 0. . . 12 – 350 x 125 x 315 SOUNDMAX SM-SA6021...
