AM150 Specifications

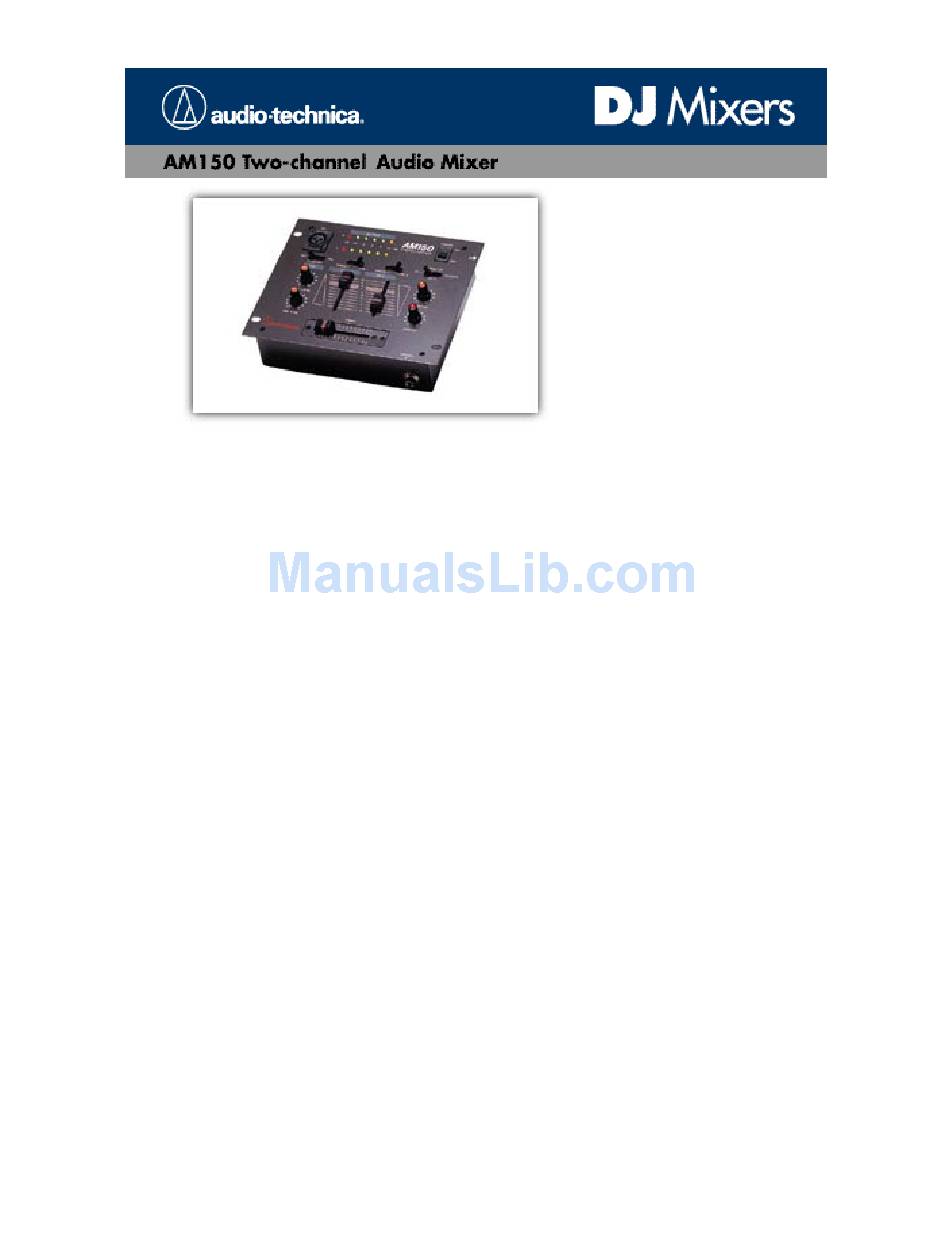

The AM150 two-channel stereo mixer is capable of mixing
combinations of two magnetic phono turntables and two stereo line-
level devices (such as a CD player or tape deck) plus a microphone.
A special mic "talkover" feature lowers music volume when desired,
so announcements can be clearly heard.
AM150 Specifications
Input Sensitivity/Overload, Input Impedance:
Recommended Mic
Matching Impedance
Output:
Frequency Response:
Total Harmonic Distortion:
Stereo Separation
Signal-to-noise Ratio (re: Max. Output):
http://www.audio-technica.com/guide/other/djmix/AM150.html
DJ Mic
Mic
Magnetic Phono at 1 kHz
Line(CD/Tape/Aux)
Normal
Maximum (at clipping)
Mic
Magnetic Phono Inputs
Line-level Inputs
DJ Mic
Mic
Magnetic Phono
Line(CD/Tape/Aux)
DJ Mic
1 mV/45 mV, 1k ohms
1 mV/45 mV, 1k ohms
3 mV/47k ohms
150 mV/50k ohms
Low impedance, up to 1k ohms
0.775V
8V
20-20k Hz ±1 dB
RIAA (±2 dB)
20-20k Hz ±1 dB
0.75%
0.75%
0.30%
0.03%
Better than 45 dB
75 dB
8/10/04 1:31 PM
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for Audio Technica AM150
Summary of Contents for Audio Technica AM150
- Page 1 AM150 Specifications 8/10/04 1:31 PM The AM150 two-channel stereo mixer is capable of mixing combinations of two magnetic phono turntables and two stereo line- level devices (such as a CD player or tape deck) plus a microphone. A special mic "talkover" feature lowers music volume when desired, so announcements can be clearly heard.
- Page 2 AM150 Specifications 8/10/04 1:31 PM 75 dB Phono 70 dB Line(CD/Tape/Aux) 75 dB DJ Mic "Talkover" Reduction -12 dB Stereophone Output/Impedance 100 mV/8 ohms Power 120V AC, 60 Hz, 15W Dimensions 8.7"W x 7.3"D x 2.0"H Net Weight 3.86 lbs.
