Wallmount Instructions for SoundPoint® IP Phones
Introduction
Repositioning the Hookswitch Tab
<August, 2009>
3725-17479-001 Rev. B
This quick tip provides step-by-step instructions for mounting your
SoundPoint IP phone to a wall.
Instead of using your phone on a tabletop or desktop, you may wish to mount
your SoundPoint IP telephone to a wall.
Depending on which model you own, your SoundPoint IP phone can be
mounted to the wall in one of two ways:
•
By using the reversible base stand/wallmount unit (included with
SoundPoint IP 32x/33x and 430 phones).
•
By using the separate wallmount accessory available from your reseller
(for SoundPoint IP 450, 550, 560, 650, and 670 phones). For more
information on purchasing a separate wallmount accessory, contact your
reseller.
Wall anchors and applicable tools are required for wallmount installation.
These are not included with your SoundPoint IP telephone, or separate
wallmount accessory.
Regardless of which model you have, your SoundPoint IP phone comes
equipped with a reversible hookswitch tab. This tab allows the handset to stay
on-hook when the phone is mounted vertically.
Your SoundPoint IP phone is packaged with the hookswitch tab in
"deskmount" position. Before your phone can be mounted to the wall, the
hookswitch tab must be set to the "wallmount" position.

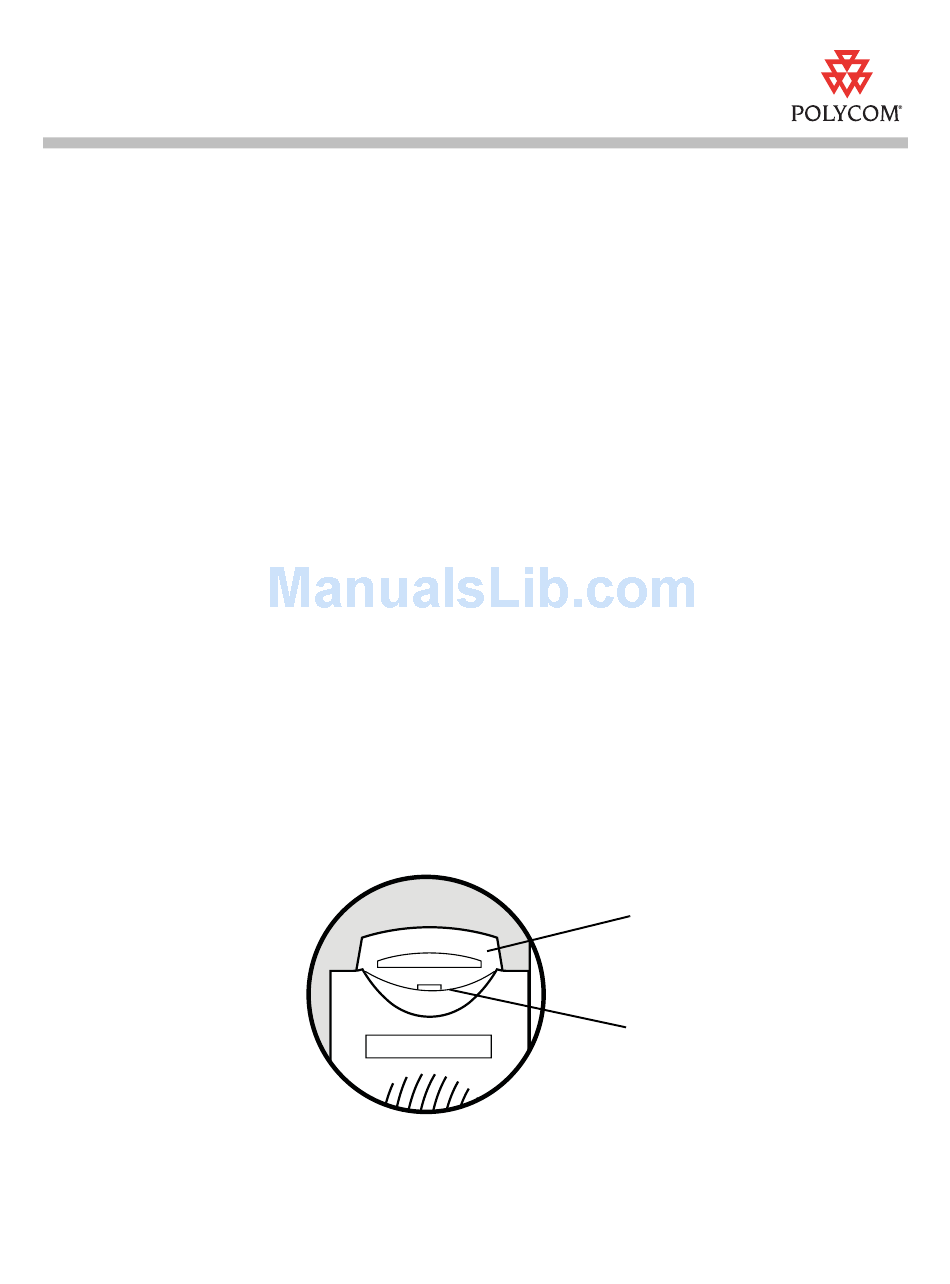

Hookswitch
Hookswitch Tab
(front view)
