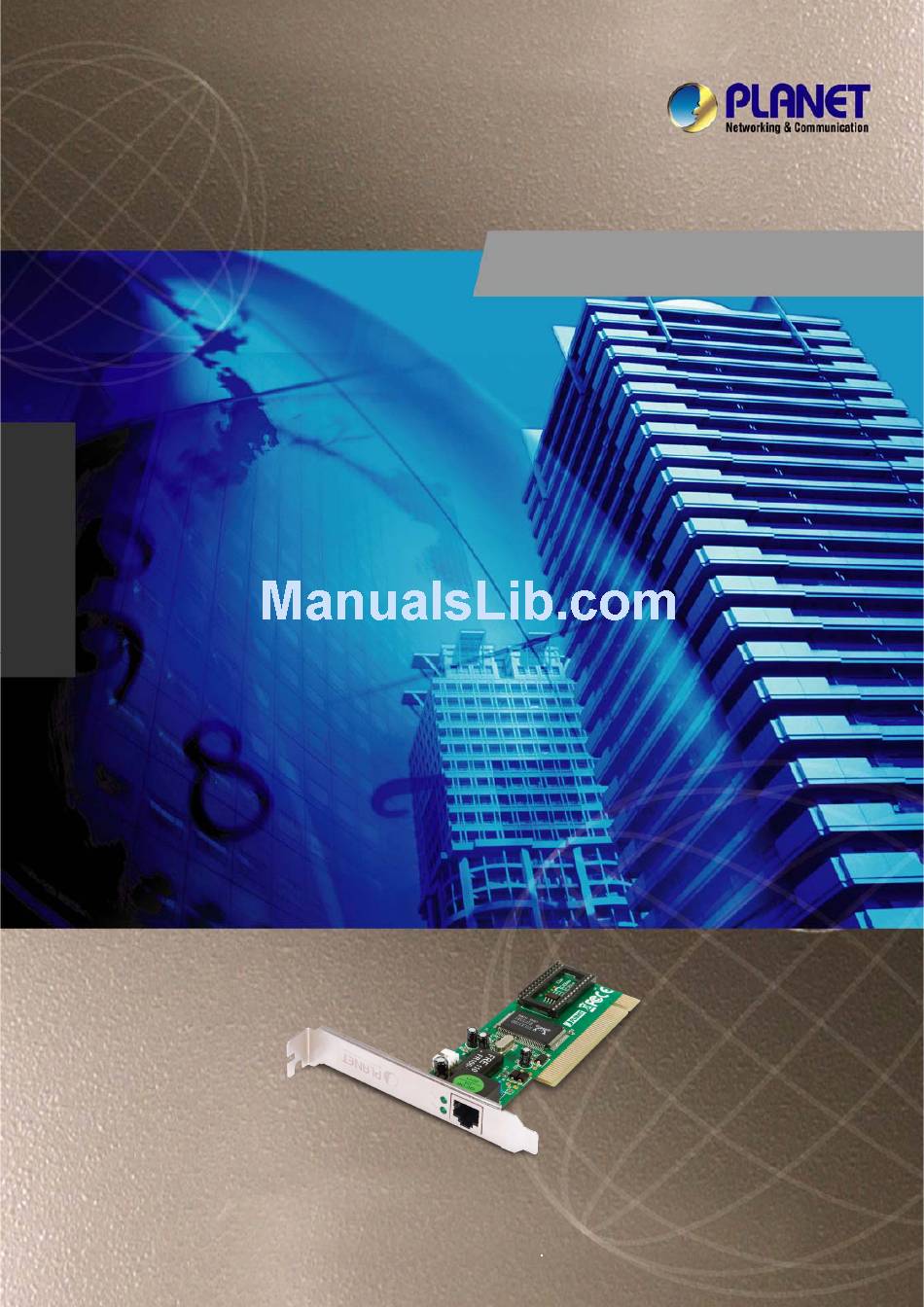

- Page 1 User’s Manual ENW-9503A / ENW-9504 10/100 Mbps Fast Ethernet PCI Adapter...
-
Page 2: Fcc Caution
Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. -
Page 3: Table Of Contents
3.1 Installing Driver to Windows Server 2003 / 2003R2 / XP ........... 4 3.2 Install Driver To Other Operating Systems ..............6 CHAPTER 4 ADVANCE FEATURE ..................7 4.1 How to us the Wake-On-LAN Feature (Only for the ENW-9503A) ......7 CHAPTER 5 SPECIFICATIONS ..................8... -
Page 4: Chapter 1 Introduction
LED indicators are also provided for quick monitoring of busy, link collision and speed indication. Also, you can operate PLANET's Fast Ethernet Adapters in Full-duplex mode. Featured with Wake-On-LAN, the ENW-9503A helps remote awake on LAN to offer an easy software update, data backup even in the office off time. Moreover, PLANET ENW-9503A also supports RPL and PXE BootROM for easy diskless workstation installation. -
Page 5: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation 2.1 LED definitions The faceplate of ENW-9503A / 9504 has two LED indicators: LINK and ACT. The pictures below have showed the faceplate of ENW-9503A / 9504. Table 2-1 explains the function and state of the LED. -
Page 6: Hardware Installation
2.2 Hardware Installation Step 1: Please turn off your PC. Step 2: Remove any metal decorations from your hands and wrists. Step 3: Remove the cover from your PC. Step 4: Locate an empty PCI Express slot and remove the corresponding back plate. Save the screw for use in Step 6. -
Page 7: Chapter 3 Driver Installation
Chapter 3 Driver Installation A device driver must be installed before your ENW-9503A/9801 can be used with your computer. This chapter describes how to install the driver for various operating systems. Before you begin the driver installation process, make sure you have the installation disks for your computer’s operation system. - Page 8 Win2003R2 will show you this dialog box to prompt you the driver is not digitally signed by Microsoft, please press “ Continue Anyway” to continue.
-
Page 9: Install Driver To Other Operating Systems
Please click “ Finish ” to complete the driver installation. 3.2 Install Driver To Other Operating Systems When you want to install ENW-9503A/ ENW-9504 to other OS, you can refer to the Readme.txt in each driver folder and follow the installation to install ENW-9503A/ ENW-9504 to the operating... -
Page 10: Chapter 4 Advance Feature
This chapter describes how to use the Wake-On-LAN feature to wake-up the LAN group PCs. Before you using the feature, please check the note as below. 4.1 How to enable the Wake-On-LAN Feature (ENW-9503A Only) Before you use the Wake-On-LAN, here are some point have to note: Check your Mother Board supports this feature. -
Page 11: Chapter 5 Specifications
Chapter 5 Specifications Product ENW-9503A / ENW-9504 Hardware Specification Attachment Interface PCI 2.1/2.2 Bus Master, 32-bit, 33MHz Media Interface 1 x 10/100Mbps Auto-Negotiation RJ45 Port Cabling Options Category 5/5e or above, 4-pair LED Indicators Link / Active per port 10/100Mbps for Half-Duplex mode...
