LCDI1802
18 VOLT COMPACT HAMMER DRILL DRIVER
OWNER'S OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCDI1802 and is the answer not in the manual?

Questions and answers

Related Manuals for Ryobi LCDI1802

Summary of Contents for Ryobi LCDI1802

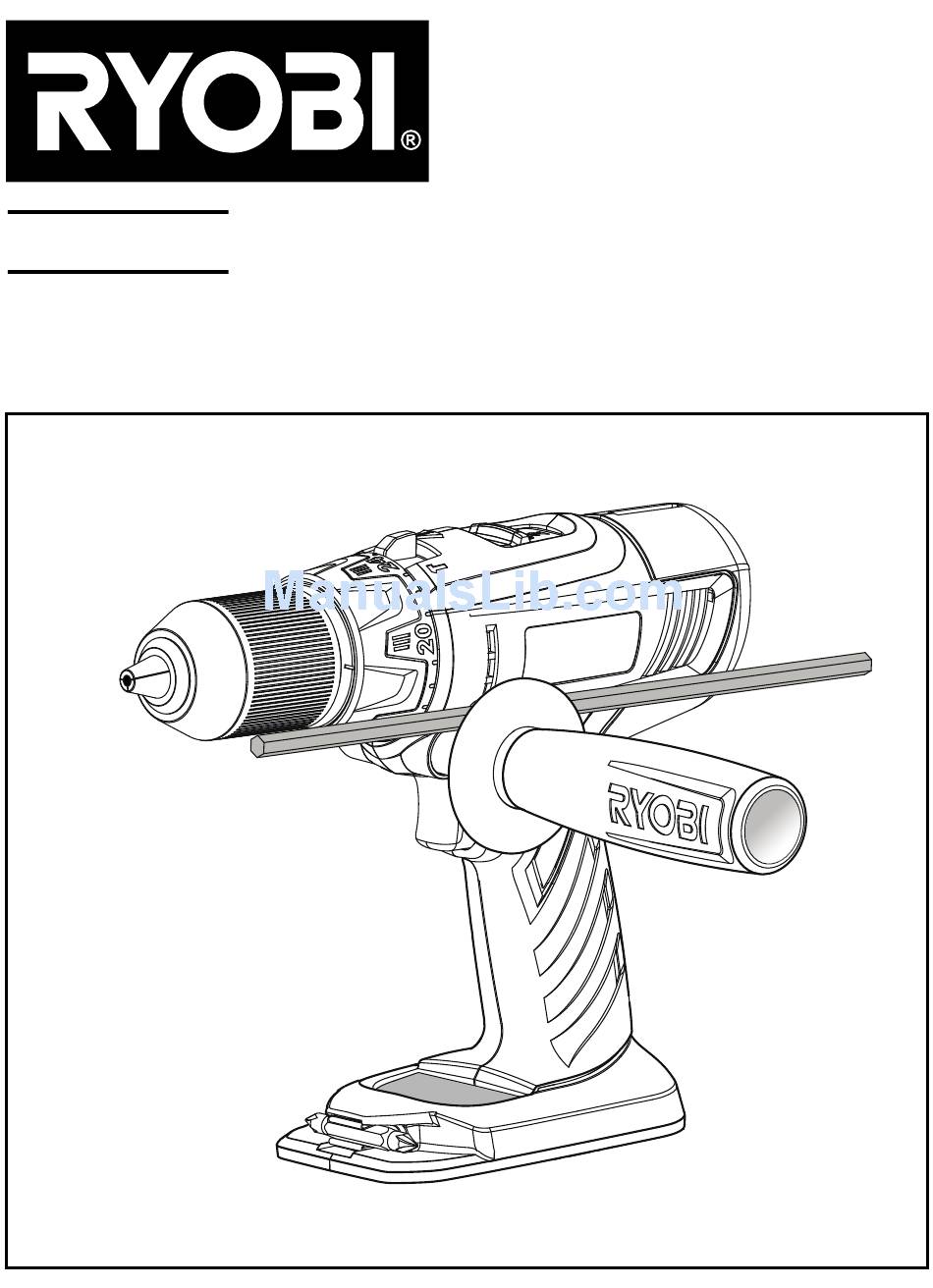

  • Page 1 LCDI1802 18 VOLT COMPACT HAMMER DRILL DRIVER OWNER’S OPERATING MANUAL...
  • Page 2 DESCRIPTION Keyless chuck 22. Lock (tighten) Torque adjustment ring 23. Unlock (release) Quick mode selector 24. Low speed Two-speed gear train 25. High speed 5 . Rotation selector (forward/reverse/center lock) 26. Drive mode Depth rod stop 27. Drill mode Bit storage 28.
  • Page 3 Fig. 4 Fig. 2 Fig. 5 Fig. 3 Fig. 6...
  • Page 4 Fig. 7 Fig. 8 Fig. 10 Fig. 9...
  • Page 5 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.

  • Page 6: Work Area Safety

    English GENERAL POWER TOOL SAfETy WARNINGS protected supply. Use of an RCD reduces the risk of electric shock. NOTE: The term ''residual current device (RCD)'' WARNING may be replaced by the term ''ground fault circuit Read all safety warnings and all instructions. interrupter (GFCI)'' or ''earth leakage circuit breaker Failure to follow the warnings and instructions (ELCB)''.

  • Page 7: Special Safety Rules

    English GENERAL POWER TOOL SAfETy WARNINGS knowledge, unless they have been given supervi- sion or instruction concerning use of the appliance by a person responsible for their safety. Children  Disconnect the plug from the power source and/ should be supervised to ensure that they do not or the battery pack from the power tool before play with the appliance.

  • Page 8: Specifications

     Hammer drilling in brick, or other masonry -Hi speed 0-19500 min Max. torque 49 Nm This product will accept RYOBI One+ 18 V lithium-ion battery packs and RYOBI One+ 18 V nickel-cadmium Weight (not incl. battery pack) 1.68 Kg battery packs.
  • Page 9 English OPERATION held in normal operating position, the rotation selector should be positioned to the left of the trigger switch for forward drilling. The drilling direction is reversed when  Place the battery pack on the tool. the selector is to the right of the trigger switch. ...
  • Page 10 English OPERATION QUICK MODE SELECTOR See Figure 7. TWO-SPEED GEAR TRAIN (HI-LO) The Quick Mode Selector allows you to quickly switch See Figure 6. from drill mode to drive mode. The drill has a two-speed gear train designed for drilling In general, drill mode should be used for drilling and or driving at LO (1) or HI (2) speeds.
  • Page 11 English OPERATION INSTALLING BITS See Figure 9. BIT STORAGE  Lock the trigger switch by placing the rotation selector See Figure 3. in the center position. When not in use, bits provided with the drill can be  Open or close the chuck jaws to a point where the placed in the storage areas located on the base of the opening is slightly larger than the bit size you intend drill.

  • Page 12: Maintenance

    This is normal and is the action of the brake. MAINTENANCE WARNING When servicing, use only identical RYOBI replacement parts. Use of any other parts may create a hazard or cause product damage. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
  • Page 14 961067429-01...
