Summary of Contents for Zanussi ZRG 715SW
-
Page 1: Storage Chart

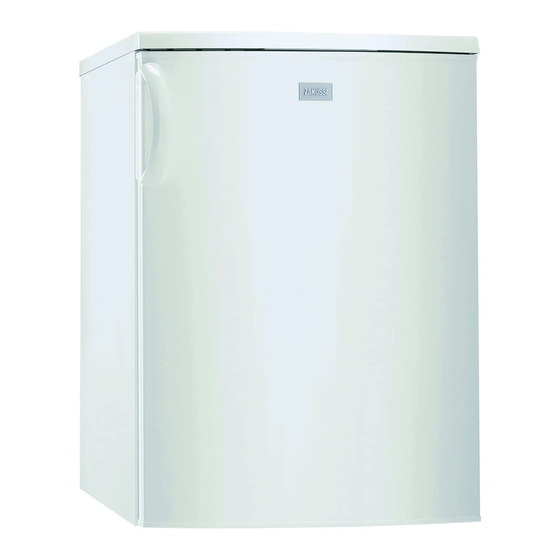

Instruction book Refrigerator ZRG 715SW... -
Page 2: Guide To Use The Instruction Book
This instruction book contains safety precautions, information on use and helpful hints and tips. To ensure you use this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference. The symbols below help you to find things more easily: Safety precautions Warnings and Safety information... -
Page 3: Important Safety Instructions
IMPOR ANT S AFET Y INS UCTIONS IMPOR ANT S AFET Y INS UCTIONS These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department. - Page 4 Remove the plug and ensure that any locks or catch- es are removed, to prevent young children being trapped inside. Safety precautions for isobutane Warning The refrigerant isobutane (R 600a) is contained with- in the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
-
Page 5: Table Of Contents
Cont ents Cont ents Instructions for the User Instructions for the Installer Guide to use the instruction book Technical Specifications Important Safety Instructions Installing the Appliance Transportation, Unpacking Cleaning Instructions for the User Location General Information Ventilation Requirements Description of the Appliance Levelling Door Reversal Door Reversal of Freezer Compartment... -
Page 6: Instructions For The User
UCTIONS F OR THE USER UCTIONS F OR THE USER General information To ensure correct operation, the appliance should be This appliance is designed for the refrigeration of food in located where the ambient temperature is between 16-32 °C. a domestic home. It has a four-star frozen food compart- ment for ice making and frozen food storage. -
Page 7: Using The Appliance
8. Cheese, butter Using the Appliance 9. Eggs 10. Yoghurt, Cream Before Use 11. Small bottles, soft drinks 12. Large bottles, drinks Remove all securing tapes. Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5 ml to 0,5 litre of water). -
Page 8: Hints And Tips
Avoid unnecessary frosting in the cabinet by packing To allow the air to circulate within the fridge com- all foodstuffs into airtight packages before placing partment do not cover the air circulation gaps them in the freezer compartment. behind the shelves (e.g. with tray etc.) Food which is to be frozen (when cool) should be Hints &... -
Page 9: Maintenance And Cleaning
Maintenance and Cleaning replace the previously removed food into the **** -star compartment. When defrosting it is not necessary to remove the Before any maintenance of cleaning work is car- foods from the inner door and the refrigerator com- ried out DISCONNECT the appliance from the partment. -
Page 10: Something Not Working
Something Not Working If the appliance is not working correctly, please carry out the following checks before contacting your local Zanussi Service Force Centre. Problem Possible Cause Solution No power to the appliance No power at the socket. Check there is power at the socket. -
Page 11: Instructions For The Installer
uctions f or the Ins aller uctions f or the Ins aller Technical Specifications Model ZRG 715 SW Gross capacity (l) Frozen food comp.: 19 Fresh food com.: 125 Net capacity (l) Frozen food comp.: 18 Fresh food com.: 119 Width (mm) Height (mm) Depth (mm) -
Page 12: Levelling
Levelling The appliance must be level. Level the appliance by adjusting the two adjustable feet (1) at the front of the appliance. If required the washer (2) can be removed. Put over the pin in the lower door holding plate in the direction of the arrow. - Page 13 Door Reversal of Freezer Compartment After reversing the refrigerator door, it is necessary to reverse the door of the frozen food compartment as well. Proceed as follows. Press the retaining lever inside the lower door hinge. Tilt the lower doorhinge out together with the freezer compartment door then remove it from the pin of the freezer compartment door.
-
Page 14: Electrical Connection
Electrical Connection Electrical Connection Important! Any electrical work required to install this appli- ance should be carried out by a qualified electri- The plug must still be accessible after the appliance cian or competent person. has been installed. This appliance must be earthed. The appliance should not be connected to the elec- trical supply by means of an extension cable. -
Page 15: Time And Method Of Storage Of Fresh Foods In The Refrigerator
Storage time chart (1) Time and method of storage of fresh foods in the refrigerator Foods Storage time in days Method of packaging Raw meat cling film, airtight Cooked meat dish covered Roasted meat dish covered Raw minced meat dish covered Cooked minced meat dish covered Cold cuts... - Page 16 Storage time chart (2) Storage time of deep-frozen and frozen products Foods In the fresh food In the **** compartment frozen food +2 - +7°C compartment -18°C Vegetables: green beans, green peas, mixed vegetables, marrow, corn, etc. 1 day 12 months Ready-cooked foods: vegetable dish, trimmings, with meat, etc.
- Page 20 200382216-00-05082008 933 014 242...
