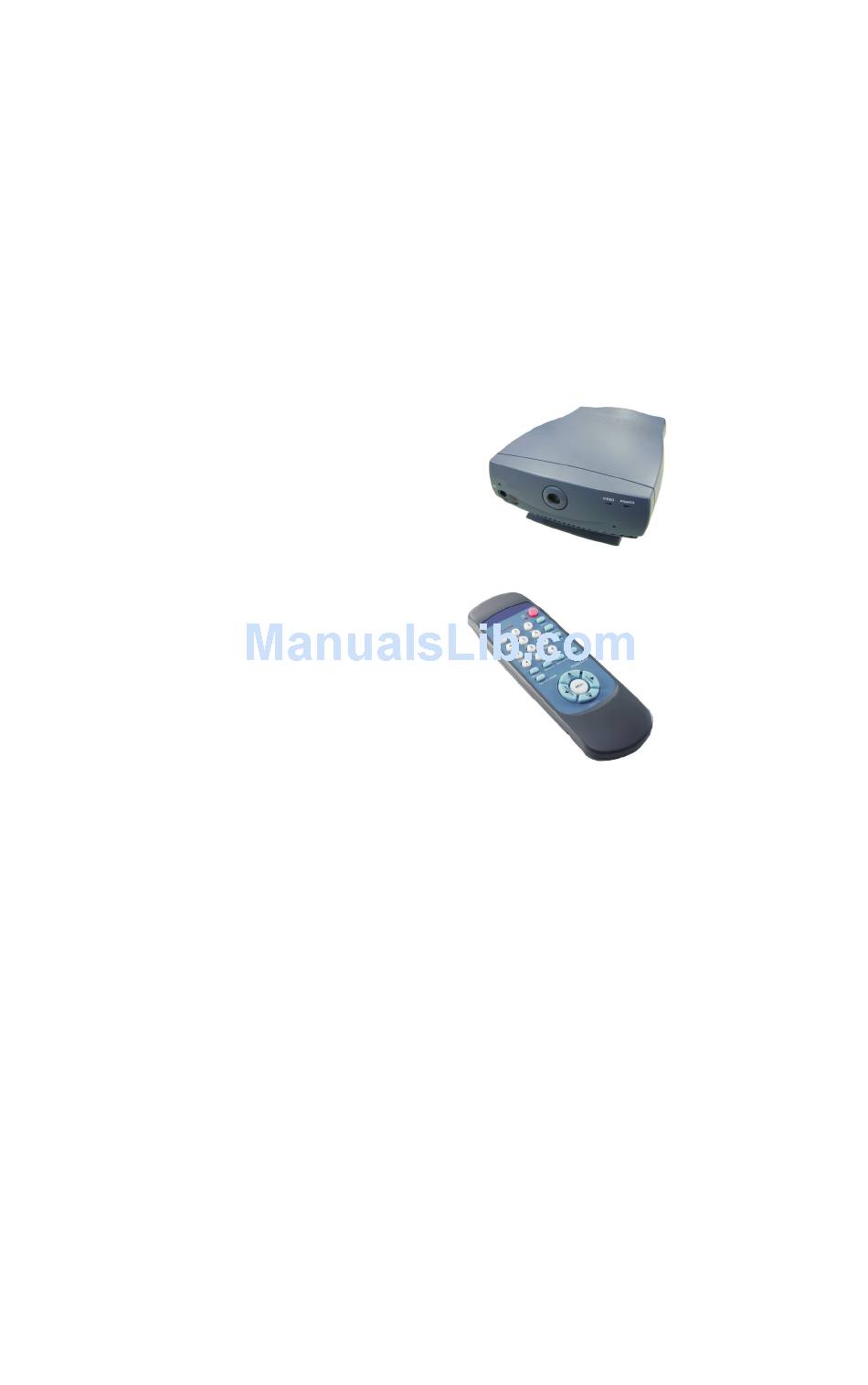

  • Page 1 TeVue User's Manual...
  • Page 2 TeleFone TV Network, LLC Telephone number: 212 5019000 Address: TeleFone TV Network, LLC 750 Lexington Ave New York, NY 10022 TeVue User's Manual Version A May 2004 P/N: W0500869...

  • Page 3: Table Of Contents

    Getting Started ............1 Overview ................ 1 Feature highlights ............1 What's in the package ............. 2 Getting to Know Your TeVue ....... 3 Front view ............... 3 Rear view ................ 4 Using remote control ............5 Installation ............8 Installing the unit ............
  • Page 4 Table of Contents Phonebook ............... 27 Add ................... 27 Search ................28 InBox ................31 OutBox ................32 Change Password ............33 Restore factory settings ........... 34 OSD Menu Tree ........... 35 Trouble Shooting ..........36 Error messages in bootup sequence ......36 Error messages in dialing sequence ......

  • Page 5: Getting Started

    Getting Started Overview TeVue is designed to avoid complicated installation. And with the buttons on the remote control, you are able to access the user-friendly on screen display menu (OSD), easily control the functions and make adjustments. TeVue has a built-in high quality CCD camera. Images are transmitted...

  • Page 6: What's In The Package

    What's in the package? TeVue x1 Remote Control x1 VIDEO POWER User's Manual x1 Microphone x1 Microphone Extension Cable x 1 Power Adapter x1 TeVue Power Cord x1 Ethernet Cable (RJ-45) x1 Audio/Video Cable x1 STILL PRIVACY VIEW PQRS WXYZ...

  • Page 7: Getting To Know Your Tevue

    The input source of Lights orange when the main local video image. This unit is in video transmission. is a mini built-in CCD When TeVue is in audio mute camera. (see p. 6), the video indicator blinks. Buzzer VIDEO POWER...

  • Page 8: Rear View

    Rear view A/V Input 2 (reserved) Audio and Ethernet connector Video input connector 2 LINK AV OUT AV IN2 AV IN1 Audio POWER Video LINK Power Switch Network For turning activity on/off the power indicator DC IN A/V Output A/V Input 1 Connect to the Audio and Audio and...

  • Page 9: Using Remote Control

    13. OUT-BOX 5. IN-BOX 14. Camera 6. Left arrow 15. Phonebook 7. Vol - 16. Vol + 8. On-hook / Off-hook 17. Right arrow 9. Still 18. OK The "FAST" and "SHARP" on not applicable in this product. TeVue User's Manual...

  • Page 10: Hot Keys

    To switch between the built-in View: CCD camera and external VIEW To select how local and remote cameras connected to TeVue. video is displayed on the screen. The options are: Remote, PIP Clear: To go back to the upper-left, PIP lower-left, PIP...

  • Page 11: Numeric Keypad

    " " " " " " " and " ". " ": Press twice consecutively; " ": Press once. " ": Press three times consecutively. " ": Press 4 times. " ": Press four times consecutively. " ": Press once. TeVue User's Manual...

  • Page 12: Installation

    Installation Installing the unit Step 1 Installing the skid-proof base The enclosed skid-proof base keeps the unit securely positioned anywhere on the flat surfaces. Front view Side view 1. Attach the base to the unit by sliding the security latch of the base into the corresponding area on the bottom of the unit.
  • Page 13 Plug the included microphone into the MIC connector in the front TeVue . If you find the cord a tad short, use the supplied Microphone Extension Cable to extend the length of the microphone and provide additional distance. VIDEO POWER Connect the microphone. TeVue User's Manual...
  • Page 14 Step 4 Connect the Ethernet cable Plug one end of the Ethernet cable in the jack marked "WAN" on TeVue. Plug the other end of the Ethernet cable in the RJ-45 jack of the Internet device (hub, router, or ATU-R).

  • Page 15: Using External Devices

    Using external devices LINK AV OUT AV IN2 AV IN1 Audio POWER Video A/V Output A/V Input 1 A/V Input 2 Television CCD Camera CCD Camera (for recording) (for playing) (for playing) TeVue User's Manual...

  • Page 16: Making A Call

    Here are a few things you need to consider before making a video call. Keep a distance of 0.5 meters away Avoid having lights behind you that from TeVue might shine into the camera lens. 0.5 m Make sure of the most appropriate...

  • Page 17: Making A Video Call

    Step 5 If there is difficulty in making connection, please make sure that TeVue has been properly installed. Please also check if the network settings are correctly configured. If there are artifacts residuals on the screen due to network traffic congestion, press...

  • Page 18: Making Adjustments

    Making Adjustments Using OSD menus TeVue allows you to use the cursor panel on the remote control to operate OSD (on-screen-display) menus. The OSD menu is brought out by pressing button on the cursor panel of the remote control. The figure below...

  • Page 19: Reviewing Ips

    Phone can be called by xxx.xxx.xxx.xxx Firmware version: Local view Main: 1.1.0 LAN: 2.2.2 Press "OK" to enter the Configuration menu. Configuration Phonebook Change Password (Continued on page 16, 27, 33 respectively, for instructions on configuring different settings) TeVue User's Manual...

  • Page 20: Configuration

    Using OSD menus Configuration Password Checking : Item selection Configuration Phonebook Change Password Please enter password Any key : backspace CLEAR Numeric input, maximum 4 digits Incorrect password Password correct? Phone Setup Network Setup (Continued on page 17 to 25 Bandwidth Setup respectively, for instructions on configuring different settings)

  • Page 21: Phone Setup

    Allows the remote (far) site to change the video input sources on YES: this phone during a call. The remote site first presses , then each subsequent press of changes the video source. The letters "Alt" CAMERA is displayed on the TV after is pressed. TeVue User's Manual...

  • Page 22: Network Setup

    Using OSD menus Configuration Network Setup Network Setup Auto Get IP (DHCP)? IP Address: 0.0.0.0 : Item selection Netmask: 255.255.255.0 Gateway: 192.168.1.1 : toggle options Being Called by Above IP? NO (YES/NO) Press > to check: ( ) Numeric keypad: input numbers, User Name: Videophone letters, punctuation marks, and Use Phone #? NO...

  • Page 23: Bandwidth Setup

    For example, if you have a DSL with 1.5 Mbps download speed, select 640 Kbps here. Note the Outgoing and Incoming speeds do not have to be the same. During a call, you can fine tune the incoming speed by pressing keys. TeVue User's Manual...

  • Page 24: Advanced Setup

    Keep Alive: If your gatekeeper service provider periodically inquires for your TeVue 's online status, you can set Keep Alive to ; if it doesn't make such an inquiry and you want to stay online for a long period of time, it is better to set Keep Alive to .
  • Page 25 (p.18) on how to use the public IP address. You can assign your own public IP address. : Item selection GateKeeper Update Server: Public IP Address Update Server PPPoE 65.215.224.51 Hot Link : move cursor : backspace CLEAR Numeric keypad: input numbers. TeVue User's Manual...
  • Page 26 Using OSD menus Configuration Advanced Setup Advanced Setup : Item selection : Item selection GateKeeper PPPoE: Public IP Address PPPoE Username ( ) Update Server PPPoE PPPoE Password ( ) Hot Link : toggle options (ON/OFF) Numeric keypad: input numbers, letters, punctuation marks, and special characters.

  • Page 27: Firmware Update

    Press "OK" to turn off the "Use Phone #?" feature and reboot. Use Phone #? After reboot, please retry You can check the Firmware Update. "Use Phone #?" Network state in Setup under Configuration menu. Reboot. See next page. TeVue User's Manual...
  • Page 28 Using OSD menus Configuration Firmware Update Firmware Update (Continued from previous page) LAN S/W Firmware You already have the versions are the same Update in progress. latest firmware. Please wait... Unsuccessful Wait 5 connection seconds Connection time out. Main S/W Retry <OK>...
  • Page 29 The phone will restart automatically. Do not touch the phone during firmware update. The phone will reboot itself after the update. Turning off the phone pre-maturely may cause a permanent failure and require a factory service. TeVue User's Manual...

  • Page 30: Configuration Changed

    Using OSD menus Configuration Configuration Changed Configuration Local view Phonebook Change Password Configuration has been changed? Save the settings? Yes <OK> CLEAR No <CLEAR> Reboot. Saving in progress. Saving completed. Please do not touch the phone. Restarting...

  • Page 31: Phonebook

    No <CLEAR> CLEAR button at any time. PHONEBOOK If you enter the phonebook menu by pressing the button, TeVue will PHONEBOOK return to local view when you leave the phonebook menu. Record Saved TeVue User's Manual...

  • Page 32: Search

    Using OSD menus Phonebook Search Search for a number Search for a number : Item selection Search InBox OutBox Speed Dial : move cursor Searching by Name: : backspace Clear Numeric keypad: input numbers, letters, punctuation marks, and special characters. Name: Joe Dial IP: 192.168.3.1...

  • Page 33: Phonebook Search

    Numeric keypad: input numbers, letters, punctuation marks, and Call progressing special characters. Updating ... If you can not dial out with TeVue , please hang up or press the button to return to local view, and try to dial again. TeVue User's Manual...
  • Page 34 Using OSD menus Phonebook Search Search for a number (cont'd) Delete the phonebook record Add the record to Speed Dial : Item selection : Item selection Dial Dial Edit Edit Delete Delete Add to Speed Dial Add to Speed Dial 0.

  • Page 35: Inbox

    Dialing to (Name) ... By (IP / Phone no. / Alias) If you can not dial out with TeVue please hang up or press the button to return to local view, and try to dial again. TeVue User's Manual...

  • Page 36: Outbox

    Dialing to (Name) ... By (IP / Phone no. / Alias) If you can not dial out with TeVue please hang up or press the button to return to local view, and try to dial again.

  • Page 37: Change Password

    Yes <OK> No <CLEAR> Change Password CLEAR Old password: | : move cursor Any key New password: : backspace CLEAR Numeric input: maximum Confirm: 4 digits Invalid input, Password Invalid Check inputs change failed Valid Password changed TeVue User's Manual...

  • Page 38: Restore Factory Settings

    Using OSD menus Restore factory settings In local view screen, pressing "********" (eight asterisks) will bring out a dialog window, asking if you want to restore all settings to factory default (see below). Press to begin the process. Press to cancel. CLEAR Restore all settings ********...

  • Page 39: Osd Menu Tree

    OSD Menu Tree Phone Setup Local view Configuration Network Setup Bandwidth Setup Advanced Setup GateKeeper Public IP Address Update Server PPPoE Hot Link Firmware Update Phonebook Search InBox OutBox Speed Dial Change Password TeVue User's Manual...

  • Page 40: Trouble Shooting

    Press "OK" to continue. factory default setting. If the screen to the left is displayed Public IP address is after bootup, it means that TeVue invalid, please assign. needs an IP address, but the current setting is invalid. Please Press "OK" to continue.
  • Page 41 IP address of the TeVue is duplicated for this phone. with that of another device in the Please reassign. same local area network. Please assign a new IP address for TeVue TeVue User's Manual...

  • Page 42: Error Messages In Dialing Sequence

    Error messages in dialing sequence If the screen to the left is displayed after you dial an IP address, it is an invalid IP address. means the IP address is invalid. Please retry with a correct one. Please try again.

  • Page 43: Other Problems

    Can not dial an IP address Probable cause is bad connection (noisy line). Hang Plug RJ-45 cable from the up and try again. This time, Internet device into "WAN" ask the other party to call you. jack on the unit. TeVue User's Manual...

  • Page 44: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of FCC Rules.
