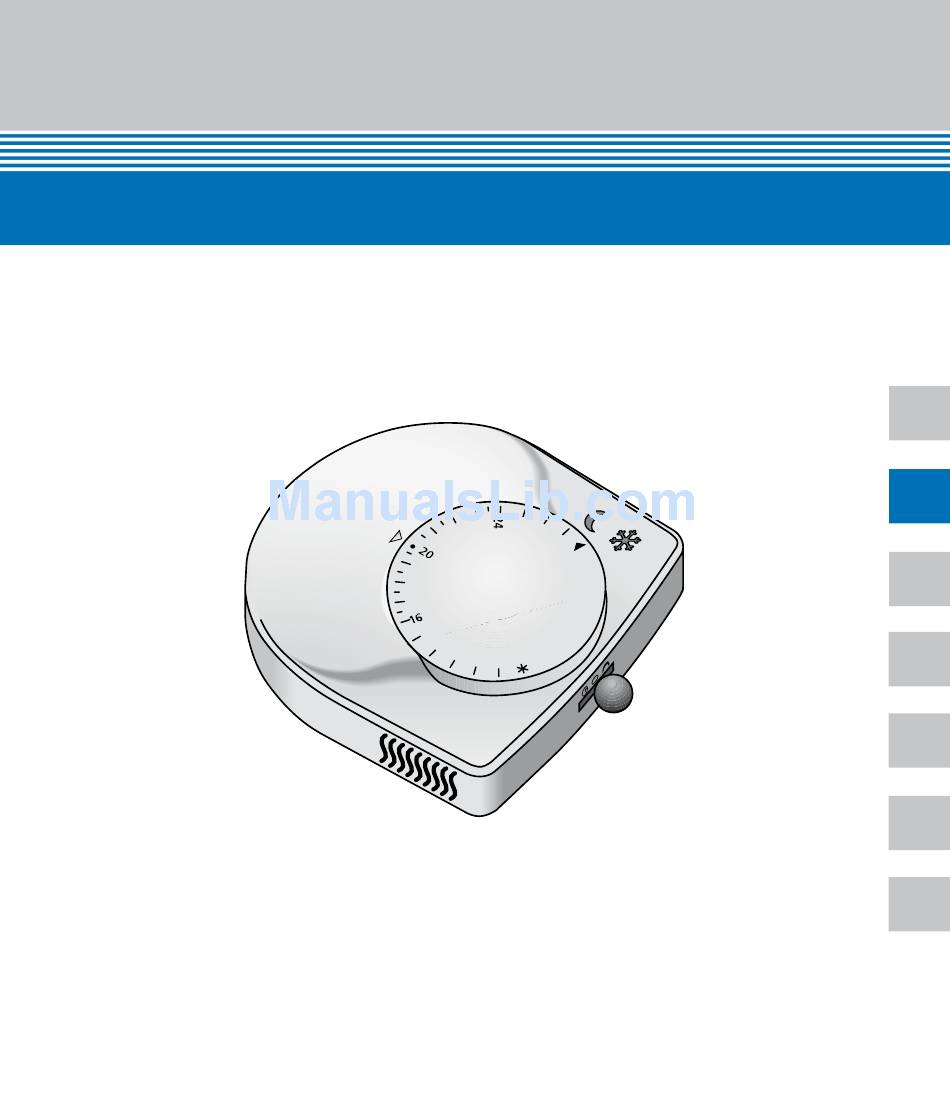

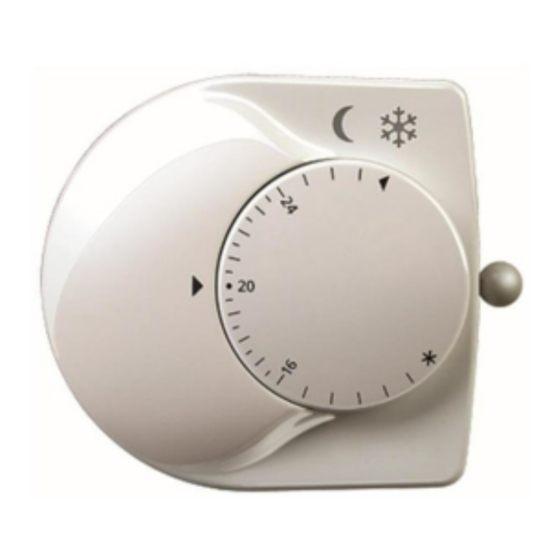

USER MANUAL
Thermostat Heating/Cooling
AR HK 4010 K
DEU
ENG
FRA
ITA
SPA
NLD
RUS
15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR HK 4010 K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moehlenhoff AR HK 4010 K

  • Page 1 USER MANUAL Thermostat Heating/Cooling AR HK 4010 K...
  • Page 2: Table Of Contents

    Dear Customer Content Congratulations on your purchase Introduction ........17 of this high-quality product. Func- Product Description ....17 tionality and design are combined in Product Description ....18 the series of Thermostats. Each Ther- Product Includes ......18 mostat is a perfect match for indivi- dual room decoration and through Safety ..........19 precise heat control enables a room...
  • Page 3: Introduction

    Introduction Product Description The Thermostat Heating/Cooling is room-thermostat working with Pulse Width Modulation (PWM) to control thermoelectric Actuators. This enhanced way of control enables a perfect and precise temperature regulation of heating/coo- ling systems. The desired room temperature is adjustable in ¼ degree steps. A switch ball selects the operating mode to turn ON, OFF or set to AUTOMATIC the energy saving mode (HEATING: Temperature Setback / COOLING: Temperature Setup) .
  • Page 4: Product Description

    Product Description Latch: to lock Thermostat to Mounting Base Energy Saving Mode: defined temperature setback of 2 K to 6 K (HEATING) defined temperature setup of 2 K to 6 K (COOLING) Temperature Selector: to set desired room temperature Switch Ball: Selection of operational mode (Energy Saving Mode [ON/OFF/AUTOMATIC]) Product Includes...
  • Page 5: Safety

    Safety Safety Instructions Intended use In the design variant Heating/Cooling Comfort, the thermostat is an electronic room temperature thermostat for the electric readjust- ment of water-bearing heating and cooling systems. In this scope, this system may only be used for the control of thermal actuators. The manufacturer cannot be held liable for improper use.
  • Page 6: Installation

    Installation Installation De-Installation...
  • Page 7: Operation Guidelines

    Operation Guidelines Temperature Selector Selector for desired temperature with „soft click“ notches. The desired room temperature is adjustable in 1/4 degree steps.Temperature scale in °C. Temperature Range Limitors �� �� ���� �� ���� �� ����� ����...
  • Page 8: Switch Ball

    Switch Ball Energy saving mode „ON“. Independently of external signals, the temperature setback is activated manually and the temperature is reduced/increased by 2-6 K. Energy saving mode „OFF“. No temperature setback / setup in this mode. The thermostate works in normal mode. Energy saving mode „AUTOMATIC“.
  • Page 9: Energy Saving Mode

    Energy Saving Mode � The selectable tempera- ture setback resp. setup can be adjusted between 2 K to 6 K of the set ��� �� ��� �� desired temperature. If the energy saving mode (temperature setup) is activated in the COO- �...
  • Page 10: Blocking „Cooling" Mode

    Blocking „Cooling“ mode Only in conjunction with Basis and HK- Modul 4000! Link L1 and Input Change- �� Over using a 4-lead wire. �� �� Mounting Base (bottom side) Replacement of Fuse � � �� �� �� ���� ����� The replacement of the fuse can be done by yourself.
  • Page 11: Electrical Installation

    Electrical Installation Wiring diagram for automatic energy saving mode by timer signal. max. 5 Actuators for COOLING closed max. 5 Actuators Mounting Base (bottom side) Possibility to connect further Thermostats...
  • Page 12: Technical Data

    Technical Data Dimensions (mm) H 80, B 27, L 93 Functional Overview Thermostat HK 40.. K Control Panel: Temperature Selector 10 °C to 28 ºC, with „soft click“ notches Temperature scale 1/4 degree positions Switch Ball selection of operating mode Internal Settings: Range limitation desired temperature...
  • Page 13: Technical Data

    Technical Data Type AR HK 40.. K Spezification Heating/cooling Switching output max. number of actuators 5 Operating voltage 24 V, 50/60 Hz Switch current 1 A (resistive Load) Energy saving mode adjustable from 2 K to 6 K Switching temperature differential ca.
