FEATURES
Attractive slim, modern styling makes it ideal for
location in any type of home.
24 hour heating program.
Up to 4 daily independent time and temperature level
changes let you set 4 time and temperatures pairs to
suit your lifestyle.
LCD Backlighting to illuminate the display for easier
viewing in low light conditions.
Temporary programmed temperature override to
temporarily override the programmed temperature till
the next switch point.
Room Temperature Enquiry.
EEPROM memory holds the user program
indefinitely.
OFF mode has an integral frost protection setting at
minimum 5°C (installer adjustable) so that pipes in
the house will never freeze in winter.
24...230V 5A resistive, 2A inductive SPDT relay
provides compatibility with most domestic central
heating systems reducing the need to stock many
different models.
Battery powered by 2 x AA size (LR6) alkaline cells.
Minimum battery life of 2 years with low battery
warning indicator.
Built-in default heating program.
Automatic Summer / Winter time change adjusts the
time automatically to daylight saving time.
Scheduled Maintenance Alert Period.

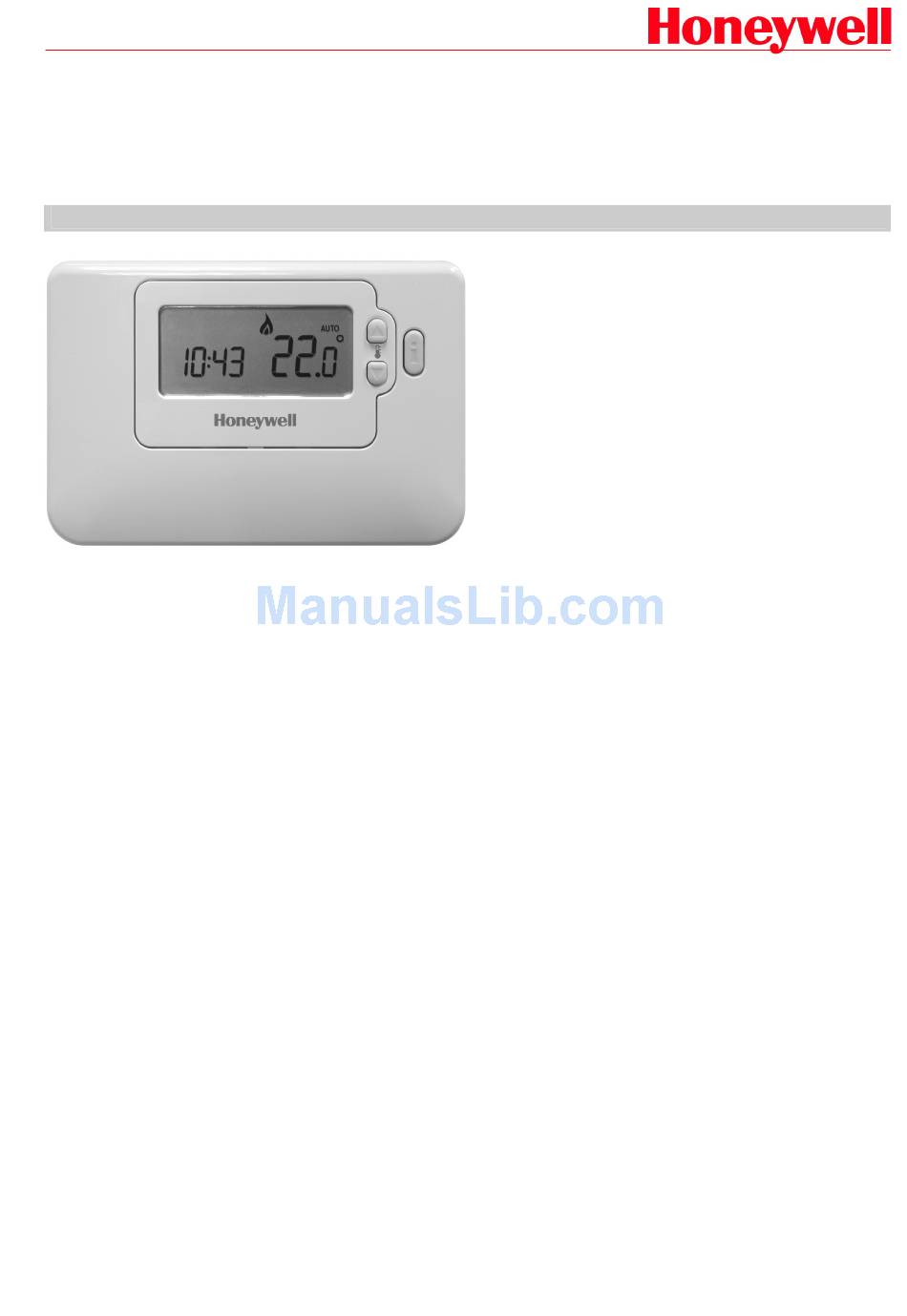

CM701

PROGRAMMABLE THERMOSTAT

PRODUCT SPECIFICATION SHEET
The CM701 thermostat is designed to provide automatic time
and temperature control of heating systems in villas and
apartments.
It can be used as part of a system in conjunction with combi-
boilers, oil-burners and gas fired boilers, circulation pumps,
thermal actuators, zone valves and electric heat systems
(<5A).
The CM701 is designed with the installer in mind and
includes a moulded back-plate with trunking guides and
wiring breakouts to make installation quick and easy.
The CM701 large LCD display, button layout based on the
same simple programming philosophy used on our acclaimed
CM20 products and the introduction of an 'OK' button makes
it easier to install and more user friendly.
The unit is ideal for consumers who want reliable precise
temperature control from a modern looking, simple to
program and easy to use product.
Surface or wall box mounting options, with trunking
guides and wiring breakouts to simplify installation.
No installer links or special installer switches on the
back of the unit mean no adjustment is required for
combi-boilers and most domestic central heating
systems.
User Set-Up Mode allows extra functions to be set at
the discretion of the user:
AM-PM or 24hr time display.
Resetting the heating profile to factory default.
Enable / disable of Auto Summer / Winter time
change.
Installer Set-Up Mode allows extra functions to be set
at the discretion of the installer to match the
consumers applications and needs:
Optimisation.
Pump Exercise.
Upper / Lower Set point Limit Adjust.
Temperature offset.
Minimum ON time.
Cycle rate.
Proportional Band Width.
Diagnostic Mode to assist in faultfinding.
(UK Version)
EN0H 8559 UK07 R0 09/06

Advertisement

loading

  Related Manuals for Honeywell CM701-UK

  Summary of Contents for Honeywell CM701-UK

  • Page 1: Programmable Thermostat

    CM701 (UK Version) PROGRAMMABLE THERMOSTAT PRODUCT SPECIFICATION SHEET The CM701 thermostat is designed to provide automatic time and temperature control of heating systems in villas and apartments. It can be used as part of a system in conjunction with combi- boilers, oil-burners and gas fired boilers, circulation pumps, thermal actuators, zone valves and electric heat systems (<5A).
  • Page 2: Specifications

    CM701 CHRONOTHERM CONTROLS / DISPLAY LAYOUT PRODUCT LAYOUT: LCD Screen Battery Low Indicator Time Display Burner On Indicator Temperature Display Temperature Change Buttons Information Enquiry Button Operating Mode Buttons Green OK Button 10. Battery Compartment 11. Battery Cover 12. Program Buttons 13.
  • Page 3: Installer Setup

    CM701 CHRONOTHERM INSTALLER SET-UP To enter the installer set-up mode: a) Press the OFF button. b) Press and hold the INFO button and the two program buttons ‘< >’ together. c) The unit will display the first parameter of installer parameter group category 1 (from n.1 to n.19).
  • Page 4 CM701 CHRONOTHERM Special Features Description What to do if we wish this feature Optimisation (Variable The thermostat will adjust the start time in the Set parameter n.8, category 1 in the Start Time) morning/afternoon so the desired temperature is installer set-up mode to 1. reached by the start of the program period e.g.
  • Page 5 CM701 CHRONOTHERM Parameter Installer Set- Factory Setting Optional Setting Installer Set- Up Number / Up Category Abbreviation (Press PROG (Press + or - keys ‘< or >’ to keys to select) select) Display Description Display/Setting Description Category 1: Thermostat Parameters AM-PM / 24hr 1:Cl 24 hr clock display...
  • Page 6: Installation

    CM701 CHRONOTHERM DIMENSIONS INSTALLATION LOCATION The CM701 thermostat is the control element of the heating system and, therefore, MUST be located in a position with good air circulation, at average room temperature and on an inside wall, 1.5 metres above the floor level. Do not position the CM701 thermostat near sources of heat (radiators, hot air vents, TV or lights), near doors or windows, or in direct sunlight.
  • Page 7 CM701 CHRONOTHERM WIRING ORDERING SPECIFICATION Description Model Logo Literature Availability Spec Sheet 1-day programmable thermostat CMT701A1014 Honeywell English Oct 06 ENOH8559 Honeywell Control Systems Limited http://europe.hbc.honeywell.com Newhouse Industrial Estate Motherwell ML1 5SB United Kingdom EN0H 8559 UK07 R0 09/06...
