Summary of Contents for Sharp R-772

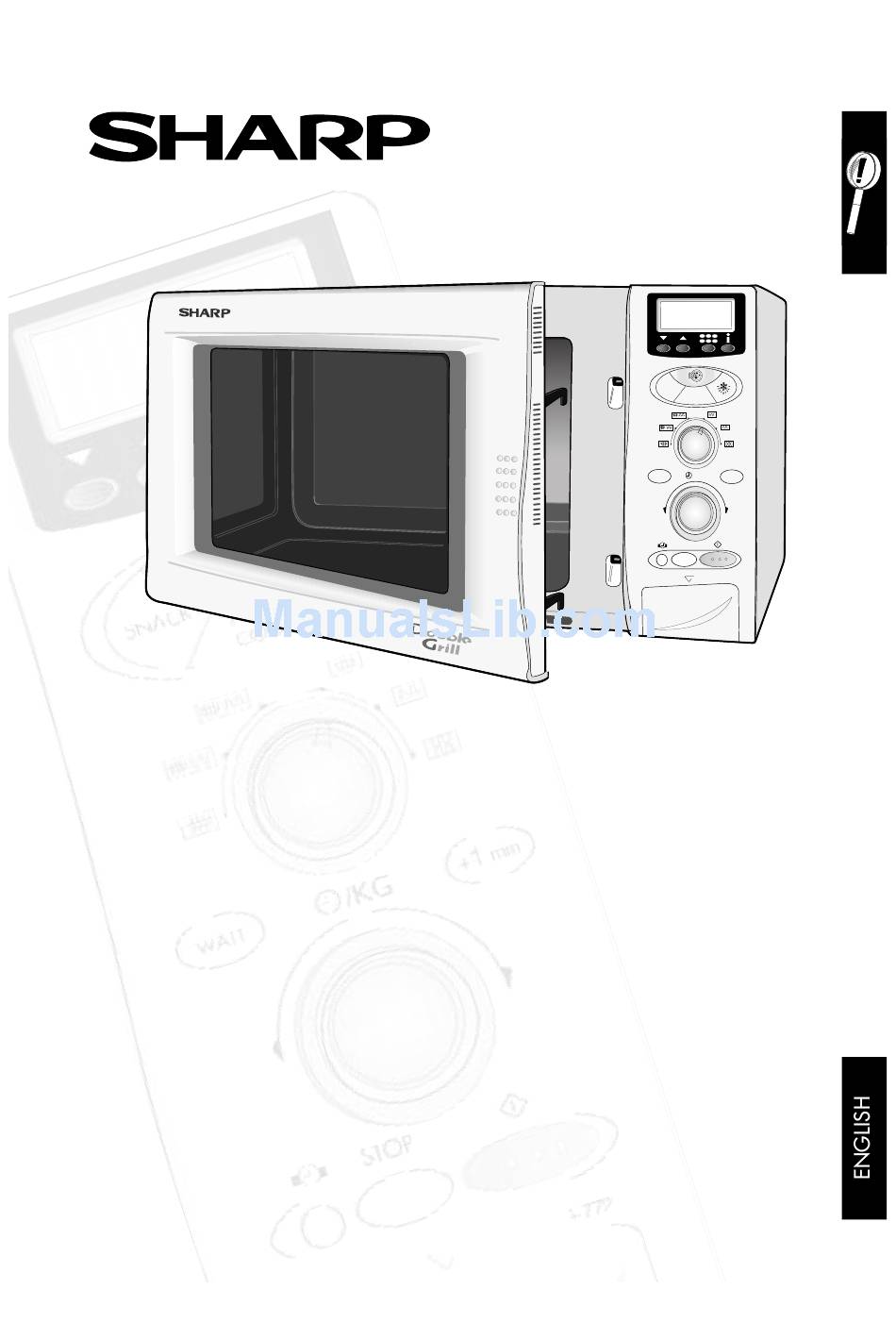

- Page 1 Important SNACK AUTO COOK WATT STOP R-772 R-772 MICROWAVE OVEN WITH TOP AND BOTTOM GRILL OPERATION MANUAL WITH COOKBOOK 900W (IEC 705)
-
Page 3: Table Of Contents
CONTENTS OVEN AND ACCESSORIES ..........2 CONTROL PANEL . -
Page 4: Oven And Accessories
NOTE: When you order accessories, please mention the following two items: Part name and model name to your dealer or SHARP authorized service agent. -
Page 5: Control Panel
TOP GRILL STOP for BOTTOM GRILL for TOP & BOTTOM GRILLS 18 MICROWAVE POWER LEVEL button R-772 Press to change the microwave power setting. 19 + 1 min button 20 TIME/WEIGHT dial Rotate the dial to enter either the cooking/defrosting time or weight of food. -
Page 6: Important Safety Instructions
EBR-4600 Do not operate the oven if it is damaged or (IN)/(B)/(W)/(BK) licensed by SHARP must be malfunctioning. Check the following before use: used. This is available from your dealer. Refer to a)The door; make sure the door closes properly and the frame installation instructions or ask your dealer ensure it is not misaligned or warped. - Page 7 SHARP to do so. If the oven lamp fails, children or the elderly. please consult your dealer or an authorised SHARP Temperature of the container is not a true service agent.
-
Page 8: Installation
IMPORTANT SAFETY INSTRUCTIONS Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans NOTE: in the oven. If you are unsure how to connect your oven, please Use only the turntable designed for this oven. consult an authorised, qualified electrician. -
Page 9: Before Operation
BEFORE OPERATION Your oven has an energy save mode. 6. Set the clock (See page 9). 1. Plug in the oven. Nothing will appear on the 7. Heat the oven without food (See page 11). display at this time. COOKING HINTS: 2. -
Page 10: Using The Stop Button
USING THE STOP BUTTON Use the STOP button to: STOP 1. Erase a mistake during programming. 2. Stop the oven temporarily during cooking. 3. Cancel a programme during cooking, press the STOP button twice. ENERGY SAVE MODE Your oven comes set for the energy save mode with ENGLISH language only. If you do nothing for 2 minutes after a preceding operation, i.e. -
Page 11: Setting The Clock
SETTING THE CLOCK There are two setting modes: 12 hour clock and 24 hour clock. 1. To set the 12 hour clock, press the CLOCK Step 1. Step 2. SETTING button once, as in Step 1 opposite. 2. To set the 24 hour clock, press the CLOCK SETTING button twice, as in Step 2 opposite. -
Page 12: Microwave Cooking
MICROWAVE COOKING Your oven can be programmed for up to 90 minutes. Cooking Time: Increasing unit: (90.00). The input unit of cooking (defrosting) time 0-5 minutes 10 seconds varies from 10 seconds to five minutes. It depends on 5-10 seconds 30 seconds the total length of the cooking (defrosting) time as 10-30 minutes... -
Page 13: Grill Cooking
GRILL COOKING Example: Suppose you want to cook cheese on toast for 5 minutes using the top grill only: (Place toast on the high rack.) Rotate the COOKING MODE Enter the desired cooking Press the START dial to the TOP GRILL time by rotating the TIME/ button to start setting. -
Page 14: Dual Cooking
DUAL COOKING Your oven has 2 DUAL cooking modes to combine the Microwave with the Grill(s). To select the DUAL cooking mode, rotate the COOKING MODE dial to the desired setting. Generally, dual cooking time shortens the total cooking time. Initial Microwave Display COOKING MODE dial... -
Page 15: Other Convenient Functions
OTHER CONVENIENT FUNCTIONS 1. LESS / MORE button. The LESS ( ) and MORE ( ) buttons allow you to easily decrease or increase programmed setting times, (for a less well or more well cooked result), used in automatic operations or cooking time while in operation. a) Changing the pre-programmed time setting. - Page 16 OTHER CONVENIENT FUNCTIONS 2. MINUTE PLUS function. The +1min button allows you to operate the two following functions: a) 1 minute cooking You can cook on your desired cooking mode for 1 minute without entering the cooking time. Example: Suppose you want to cook for 1 minute at 630W microwave power. Rotate the COOKING Press the WATT button Press +1min...
-
Page 17: Other Convenient Functions
OTHER CONVENIENT FUNCTIONS 3. TO CHECK THE POWER LEVEL To check the microwave power level during cooking press the MICROWAVE POWER LEVEL button. As long as your finger is pressing the button, the WATT power level will be displayed. The oven continues to count down, although the display shows the power level. -
Page 18: Automatic Operation
AUTOMATIC OPERATION AUTOMATIC OPERATION automatically works out PIZZA button the correct cooking mode and cooking time. You SNACK button can choose from the 3 SNACK menu, the 3 PIZZA menu, the 4 AUTO COOK menu and the 2 AUTO DEFROST menu. SNACK WARNING: AUTO... -
Page 19: Automatic Operation
AUTOMATIC OPERATION The SNACK/PIZZA buttons offer the possibility to cook foods quickly and easily. Example1: Suppose you want to cook 200 g of French fried potatoes using the SNACK button. Enter the weight. Choose the SNACK menu NO-1 by Press the START 0.2 kg will appear and the cook pressing the SNACK button once. -
Page 20: Pizza Chart
PIZZA CHART Menu number NO-1. Procedure: Frozen Pizza, Frozen Quiche. • Remove the ready prepared frozen pizza/ Quantity: 0.15 - 0.6 kg Pizza quiche from the packaging and place on the 0.15 - 0.4 kg Quiche turntable. When cooking thick base pizza and Utensils: Directly on the turntable ready prepared frozen quiches, press the... -
Page 21: Snack Chart
SNACK CHART Menu number NO-1. French Fried Potatoes. Procedure: Quantity: 0.2 - 0.4 kg • Remove the deep-frozen, French-fried potatoes Utensils: Directly on the turntable (recommended for conventional ovens) from the Increasing unit: 50 g package and place them on the turntable. Initial food Temp: -18˚... -
Page 22: Auto Cook Chart
AUTO COOK CHART Menu number NO-1. Procedure: Grilled Chicken • Mix the ingredients and spread on chicken. Quantity: 0.9 - 1.8 kg • Pierce the skin of the chicken. Utensils: Low Rack • Place the chicken on the low rack with breast side Increasing unit: 100 g down. -
Page 23: Auto Cook Chart
Menu number NO-4. Procedure: Grill skewers. • Prepare the skewers. (You can refer to the attached Quantity: 0.2 - 0.8 kg SHARP cookery book section). Utensils: High Rack • Put the skewers on the high rack. Increasing unit: 100 g •... -
Page 24: Auto Defrost Chart
AUTO DEFROST CHART Procedure: Menu number NO-1. • Put a plate up side down on the turntable and Easy Defrost 1, Poultry place the poultry on it. • When audible signal sounds, turn over. Shield the Quantity: 0.9 - 2.0 kg defrosted parts with aluminium foil if necessary. -
Page 25: Care And Cleaning
Door To remove all trace of dirt, regularly clean both sides of the door, the door seals and adjacent surfaces with a soft, damp cloth. SNACK AUTO COOK WATT STOP R-772... -
Page 26: Service Call Check
3 minutes. After 3 minutes do both GRILL heating elements become red? If you answer “NO” to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address. -
Page 27: Specifications
SPECIFICATIONS AC Line Voltage : 230 V, 50 Hz, single phase Distribution line fuse/circuit breaker : Minimum 16 A AC Power required: Microwave : 1.45 KW Top Grill : 1.05 KW Bottom Grill : 0.55 KW Triple : 2.95 KW Output power: Microwave : 900 W (IEC 705) -
Page 28: Service Addresses
Phone: 463-43114, Fax: 463-43113 BELGIUM En cas d´une réclamation concernant une four a micro-onde SHARP, nous vous prions de vous adresser à votre spècialiste ou à une adresse des SHARP Services suivantes. Indien uw magnetron problemen geeft kunt u zich wenden tot uw dealer of een van de onderstaande Sharp service centra. - Page 29 Dienstl. GmbH, Grimmelallee 40, Tel: 03631-2040, Fax: 3654 / 99817 Eisenach, Blitz Electronic GmbH, Bahnhofstr. 17, Tel: 03691-77291, Fax: 72105 FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I.: 1, Rue du Mont de Terre, 59818 Lesquin Cédex.
- Page 30 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . 889.02.48, CL GUILLERIES BIS 20, 08500 VIC, BARCELONA / CE. VA. SAT, S.C. - 710.76.13, PS RUBIO I ORS 105, 08203 SABADELL, BARCELONA / VILLARET POLO RAMON - 798.02.48, CL MOLI DE VENT 21, 08303 MATARO, BARCELONA / ESTARLICH PRADAS VICENTE - 766.22.33, CL INDUSTRIA 131, 08370 CALELLA, BARCELONA / VIDEOCOLOR - 93/ 454.99.08, CL VILLARROEL 44, 08011 BARCELONA, BARCELONA / ELDE - 872.85.42, CL BRUCH 55, 08240 MANRESA, BARCELONA / PULGAR I EDO S.L.
- Page 31 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . GUADALAJARA / ABRIL SANCHEZ VALENTIN, 959/ 10.60.41, CL CADIZ 2, 21270 CALA, HUELVA / TELESONID HUELVA, S.C.A., 959/ 24.38.60, CL FCO.VAZQUEZ LIMON 4, 21002 HUELVA, HUELVA / ELECTRONICA SUR, 959/ 47.11.51, CL M. LERDO DE TEJADA 9, 21400 AYAMONTE, HUELVA / ELECTRO HIMEGA, S.A., 953/ 24.22.56, CL ADARVES BAJOS 4-C, 23001 JAEN, JAEN / ELECTRONICA JUMAR, 953/ 26.17.08, CL GOYA (LAS FLORES) 1, 23006 JAEN, JAEN / ELECTRONICA GONZALEZ, 953/ 50.33.82, CORREDERA SAN BARTOLOME 11, 23740 ANDUJAR, JAEN / UNISERVIC ELECTRONICA, 953/ 75.14.19, CL GOYA 1 BJOS, 23400 UBEDA, JAEN / NOMBRE1, TLFNO, CALLE, CIUDAD,...
- Page 32 PRINTED IN THE UK SHARP ELECTRONICS (EUROPE) GMBH. Sonninstrasse 3, 20097 Hamburg 1 TINS-A163URRO Germany...
