NOTES:
• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it
is not damaged.
• Always operate the oven with the turntable and roller stay fitted correctly. This promotes thorough,
even cooking. A badly fitted turntable may rattle, may not rotate properly and could cause damage
to the oven.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you
start the oven. This does not affect cooking performance.
• When you order accessories, please quote both the PART NAME and MODEL NUMBER to
your dealer or SHARP approved service facility.
WARNING:
The door, outer cabinet, oven cavity, turntable and dishes will become very
hot during operation. To prevent burns, always use thick oven gloves.
OVEN AND ACCESSORIES
6
5
4
11
12
13
14

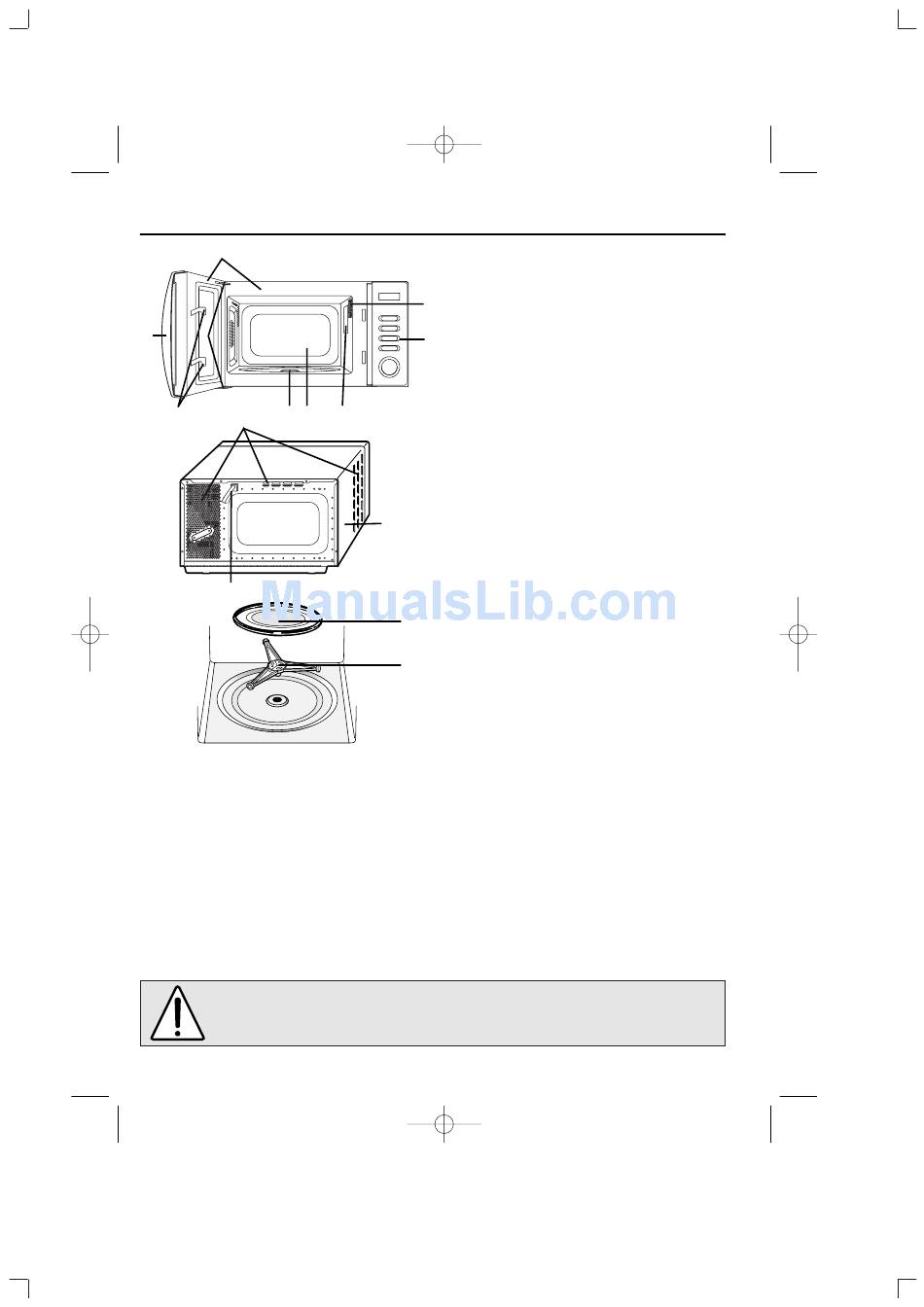

OVEN:
1. Oven lamp
2. Control panel
1
3. Door opening handle
4. Waveguide cover (DO NOT REMOVE)
2
5. Oven cavity
6. Coupling
7. Door latches
8. Door hinges
9. Door seals and sealing surfaces
10. Power cord
11. Ventilation openings
12. Outer cabinet
ACCESSORIES:
Check to make sure the following accessories are
provided:
13. Turntable
14. Roller stay
• Place the roller stay in the coupling on the
oven floor, then place the turntable on to the
roller stay, ensuring it is located firmly.
• To avoid turntable damage, ensure dishes or
containers are lifted clear of the turntable rim
when removing them from the oven.
