3M 900 Series Illustrated Parts Breakdown

Overhead projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

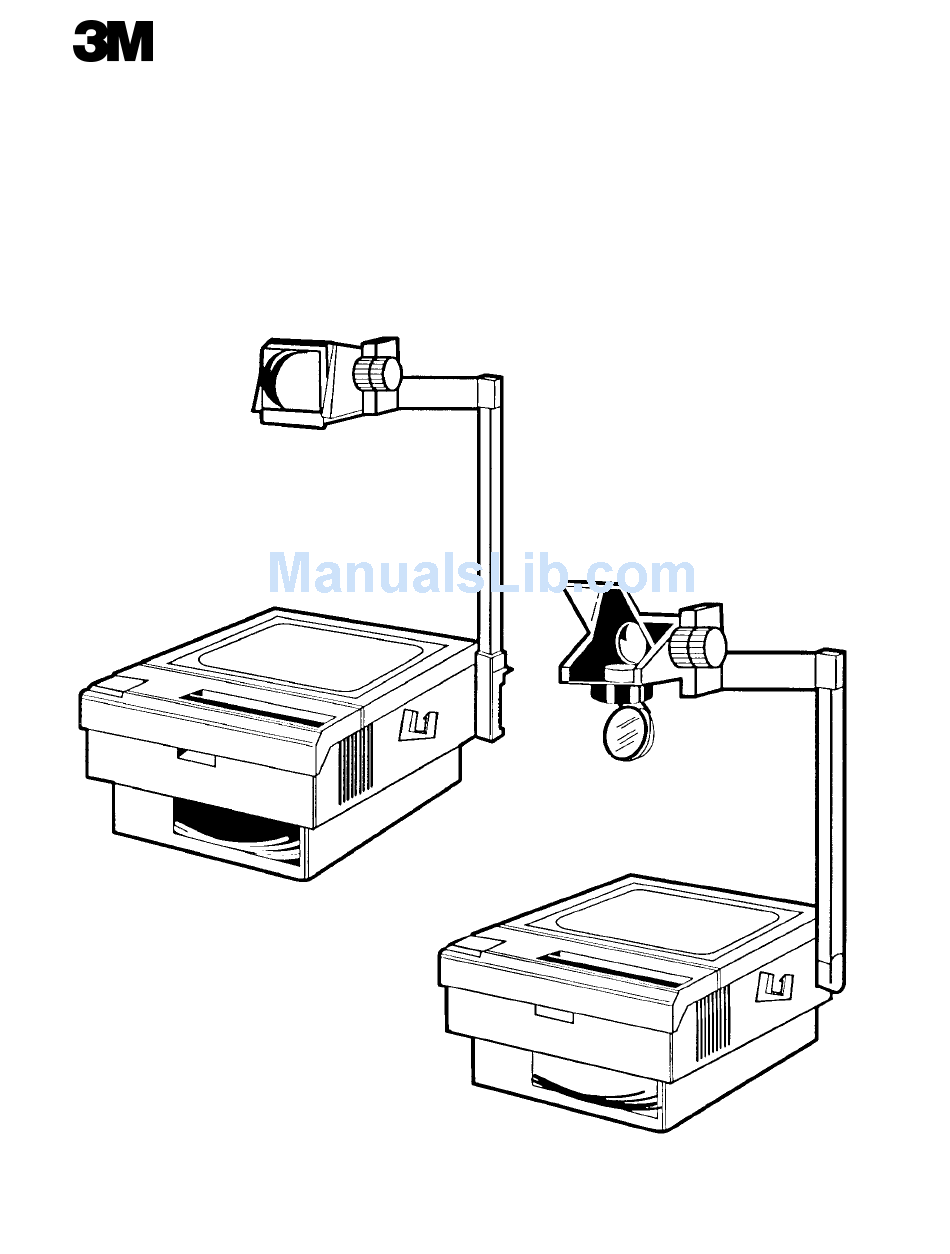

900 Series Overhead Projectors
Illustrated Parts Breakdown
.
3M Visual Systems Division
6801 River Place Boulevard
Austin, Texas 78726-9000
Printed in U.S.A.
E 3M 6/96 78-6970-4941-5 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 Series and is the answer not in the manual?

Questions and answers

Related Manuals for 3M 900 Series

Summary of Contents for 3M 900 Series

  • Page 1 900 Series Overhead Projectors Illustrated Parts Breakdown 3M Visual Systems Division Printed in U.S.A. E 3M 6/96 78-6970-4941-5 Rev B 6801 River Place Boulevard Austin, Texas 78726-9000...

  • Page 2: Table Of Contents

    900 Series Overhead Projectors IPB – Table of Contents Introduction ..............

  • Page 3: Introduction

    1991 Jul – Sep component have not been amended by changes and 1992 Oct – Dec updates made to your 900 Series Overhead Projectors. 1993 Jan – Mar Machine Identification Plate The Machine Identification Plate is located on the 4. Lamp: The electrical rating of the lamp.
  • Page 4 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projectors This page intentionally left blank. E 3M 1996...
  • Page 5 New and reconditioned parts are covered by the same 3M new parts limited warranty. Hardware items are subject to availability and may need to be purchased locally. The 900 Series Overhead Projectors are discontinued models, Therefore, all parts are subject to availability.
  • Page 6 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Quick Reference Service Parts Index Section Item Description Part Number ACTUATOR SWITCH, Button ..........

  • Page 7: Section 1 System Overview

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 1 SYSTEM OVERVIEW Projection Head Assemblies Arm, Post and Focus Assembly (See Sections 2 and 3) (See Section 4) Fresnel and Stage Assembly (See Section 6) Top Cover Assembly (See Section 5)

  • Page 8: Section 2 Articulate (Closed) Head Assemblies

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 2 ARTICULATE (CLOSED) HEAD ASSEMBLIES E 3M 1996...
  • Page 9 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 2 ARTICULATE (CLOSED) HEAD ASSEMBLIES Item No. Part Number Description ..78-8064-1420-3 ..ART DOUBLET HEAD ASSEMBLY, 14” (355mm) (Models 905, 910) .

  • Page 10: Section 3 Open Head Assemblies

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 3 OPEN HEAD ASSEMBLIES E 3M 1996...
  • Page 11 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 3 OPEN HEAD ASSEMBLIES Item No. Part Number Description ..78-8064-1408-8 ..OPEN SINGLET HEAD ASSEMBLY, 11.5” (293 mm) (Model 905) .

  • Page 12: Section 4 Arm And Focus Assembly

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 4 ARM AND FOCUS ASSEMBLY Triplet Mount Singlet/Doublet Mount E 3M 1996...
  • Page 13 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 4 ARM AND FOCUS ASSEMBLY Item No. Part Number Description ..78-8064-1591-1 ..L–BRACKET ............

  • Page 14: Section 5 Top Cover Assembly

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 5 TOP COVER ASSEMBLY E 3M 1996...
  • Page 15 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 5 TOP COVER ASSEMBLY Item No. Part Number Description ..78-8064-1515-0 ..ACTUATOR SWITCH, Button ........

  • Page 16: Section 6 Fresnel And Stage Assembly

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 6 FRESNEL AND STAGE ASSEMBLY Section 6 FRESNEL AND STAGE ASSEMBLY Item No. Part Number Description ..78-8064-1473-2 ..GLASS, Stage (Models 905, 908, 910, 920) .

  • Page 17: Section 7 Base Assembly

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 7 BASE ASSEMBLY Before S/N 805302 After S/N 805302 and after 9.000.01 in Europe E 3M 1996...
  • Page 18 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 7 BASE ASSEMBLY Item No. Part Number Description ..78-8064-1788-3 ..MIRROR ASSEMBLY, Body, M900 before S/N 805302, (See Note 1) .

  • Page 19: Section 8 Lamp Housing Assembly (Single Enx Lamp - 905, 905D, 905W)

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 8 LAMP HOUSING ASSEMBLY (SINGLE ENX LAMP - 905, 905D, 905W) E 3M 1996...
  • Page 20 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 8 LAMP HOUSING ASSEMBLY (SINGLE ENX LAMP - 905, 905D, 905W) Item No. Part Number Description ..78-8011-1186-1 ..

  • Page 21: (Dual Enx Lamp - 908, 910, 920, & Dual Fxl Lamp - 955)

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 9 LAMP HOUSING ASSEMBLY (DUAL ENX LAMP - 908, 910, 920, & DUAL FXL LAMP - 955) 18 9 21 22 51 53 E 3M 1996...
  • Page 22 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 9 LAMP HOUSING ASSEMBLY (DUAL ENX LAMP - 908, 910, 920, & DUAL FXL LAMP - 955) Item No. Part Number Description ..78-8011-1186-1 ..
  • Page 23 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 9 LAMP HOUSING ASSEMBLY (DUAL ENX LAMP – 908, 910, 920, & DUAL FXL LAMP - 955) (Continued) Item No. Part Number Description ..78-8064-1500-2 ..
  • Page 24 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 9 LAMP HOUSING ASSEMBLY (DUAL ENX LAMP - 908, 910, 920, & DUAL FXL LAMP - 955) (Continued) Item No. Part Number Description ..78-8073-7262-4 ..
  • Page 25 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 10 LAMP HOUSING ASSEMBLY (FNT SINGLE AND DUAL LAMP) 15 17 15 16 Single Lamp Assembly E 3M 1996...
  • Page 26 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 10 LAMP HOUSING ASSEMBLY (FNT SINGLE AND DUAL LAMP) Item No. Part Number Description ..78-8054-1175-4 ..LAMP, FNT, 24 Volt, 275 Watts .
  • Page 27 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 10 LAMP HOUSING ASSEMBLY (FNT SINGLE AND DUAL LAMP) (Continued) Item No. Part Number Description ..78-8064-1542-4 ..POWER CORD, Australian 10’...
  • Page 28 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 10 LAMP HOUSING ASSEMBLY - FNT SINGLE AND DUAL LAMP (Continued) Item No. Part Number Description ..78-8057-4184-6 ..LABEL, Fuse Holder .

  • Page 29: Section 11 Roller Attachment

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 11 ROLLER ATTACHMENT 10,11 E 3M 1996...
  • Page 30 Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Section 11 ROLLER ATTACHMENT Item No. Part Number Description ..78-8064-1794-1 ..BRACKET ASSEMBLY, Roller 10 1/4” ....... . .

  • Page 31: Appendix A Field Update Kits

    Illustrated Parts Breakdown 3Mt 900 Series Overhead Projector Appendix A FIELD UPDATE KITS Purpose Description Notes Part Numbers Increase lamp life in all 120 1.2 Ohm Resistor Kit Installed in Model 905D, 78-6969-7934-9 Volt M900’s (except the 905W, & 908s after S/N M955).
  • Page 32 3M Visual Systems Division Printed on 50% recycled Printed in U.S.A. 6801 River Place Boulevard waste paper, including 10% E 3M 6/96 78-6970-4941-5 Rev. B post-consumer waste paper. Austin, Texas 78726-9000...

This manual is also suitable for:

905d905w908sM955s
