or
Component Video Connection (Better)
COMPONENT IN (CMPT)
COMPONENT IN (CMPT)
Menu operation for input source selection
or select the input source directly by pressing
INPUT button.
DVI Connection
HDMI-DVI
conversion
cable
HDMI 1/DVI IN HDMI /DVI IN 1
Set-top box
AUDIO
AUDIO
or
Audio
cable
DVI/PC
AUDIO IN

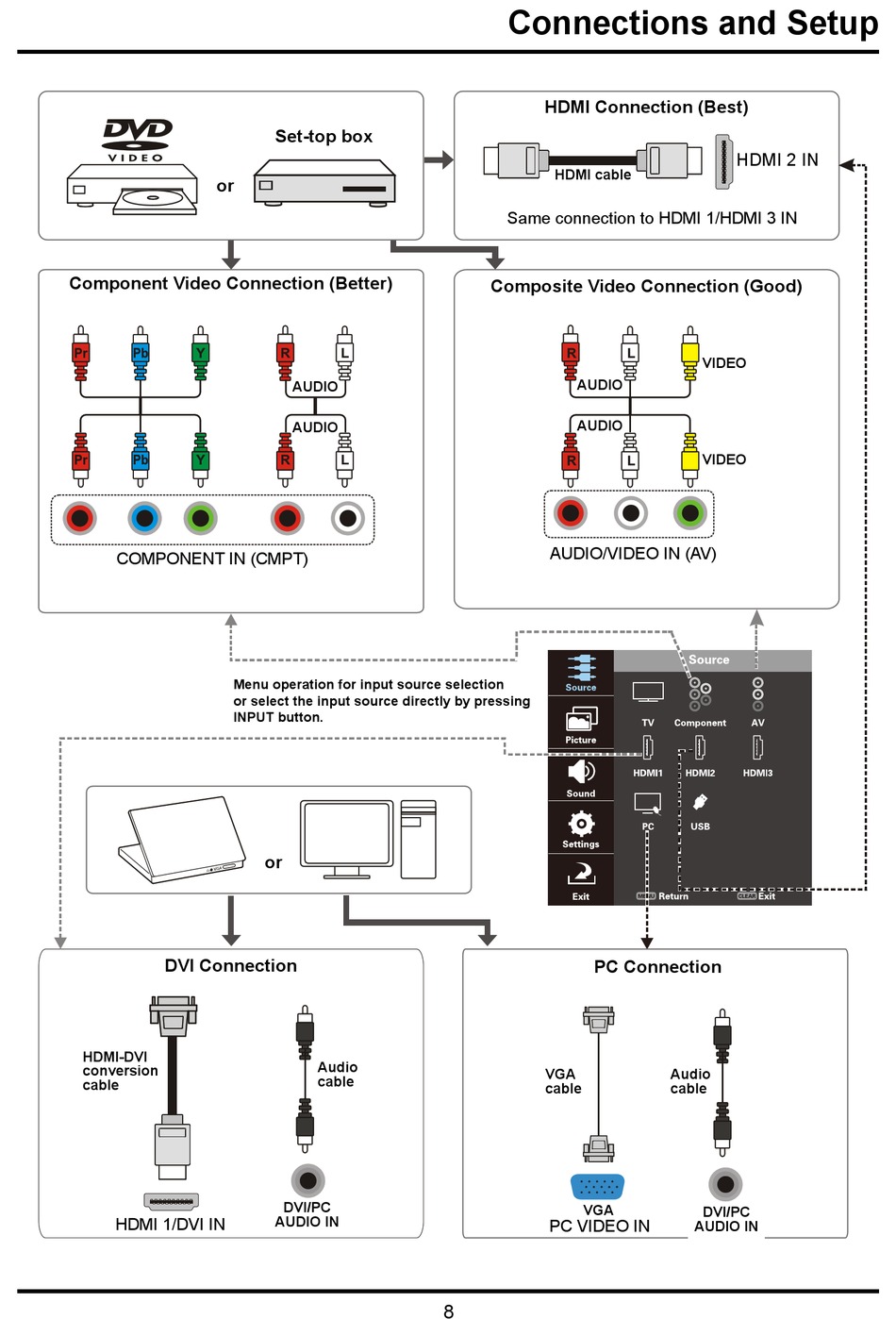

Connections and Setup
HDMI Connection (Best)
HDMI cable
Same connection to HDMI 1/HDMI 3 IN
Same connection to HDMI 1/HDMI 3 IN
Composite Video Connection (Good)
AUDIO
AUDIO
AUDIO/VIDEO IN (AV)
AUDIO/VIDEO IN (AV)
PC Connection
VGA
cable
VGA
PC VIDEO IN
PC VIDEO IN
8
HDMI 2 IN
HDMI 2 IN
VIDEO
VIDEO
Audio
cable
DVI/PC
AUDIO IN
