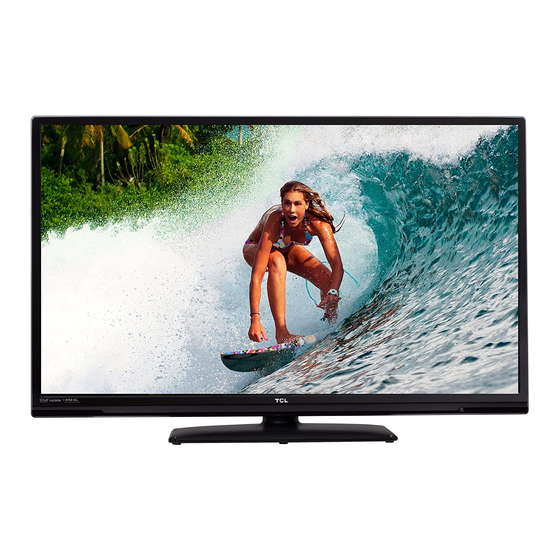

For use with models : LE32HDE3010
/ LE39FHDE3010 / LE40FHDE3010
Need assistance?
visit our website at www.tclusa.com
or call 1-877-300-8837
Figures and illustrations in this User's Guide are
provided for reference only and may di er from
actual product appearance. Product design and
speci cations may be changed without notice.
Advertisement
Table of Contents
Related Manuals for TCL LE32HDE3010
Summary of Contents for TCL LE32HDE3010

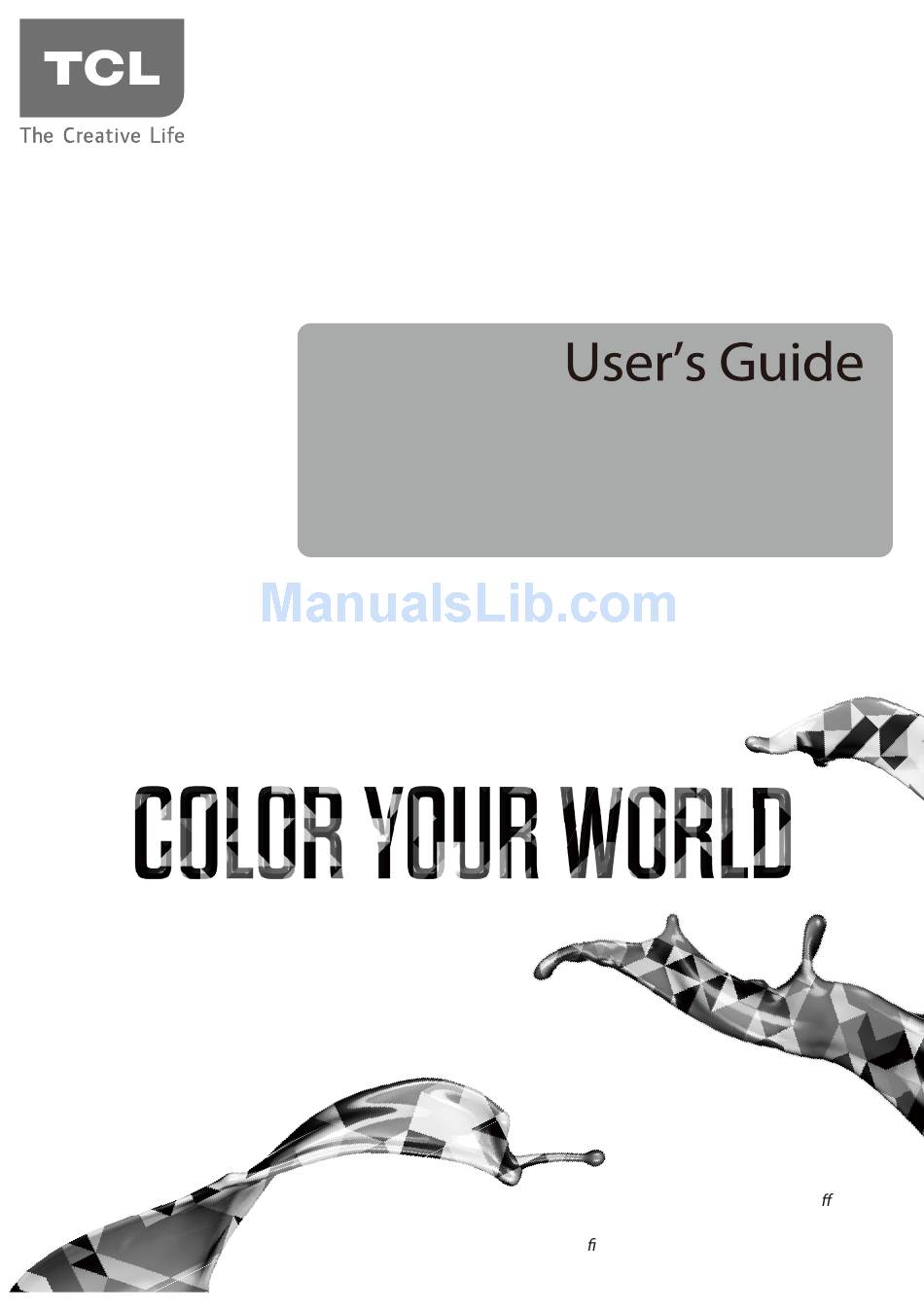

- Page 1 For use with models : LE32HDE3010 / LE39FHDE3010 / LE40FHDE3010 Need assistance? visit our website at www.tclusa.com or call 1-877-300-8837 Figures and illustrations in this User’s Guide are provided for reference only and may di er from actual product appearance. Product design and...
-
Page 2: Important Information
Important Information This symbol indicates that this product CAUTION incorporates double insulation between hazardous main voltage and user accessible parts. When RISK OF ELECTRIC SHOCK. servicing, use only identical replacement parts. DO NOT OPEN. Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read and follow all instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Table Of Contents
Table of Contents Important Information ........ 1 Geometry ............15 Advanced Settings ........15 Important Safety Instructions ..... 2 Sound Menu ..........15 Chapter 1 - Connections and Setup Equalizer ............15 Before Initial Setup ........4 SRS TruSurround HD ........15 Check Supplied Parts ........ -
Page 5: Chapter 1 Connections And Setup
Chapter 1 Connections and Setup Before Initial Setup Protect Against Power Surges • Connect all components before you plug any power cords into the wall outlet or power strip. • NEVER plug your TV into an outlet that is controlled by a wall switch. •... -
Page 6: Attaching Your Tv To The Table Stand
Connections and Setup Attaching Your TV to the Table Stand Your TV comes without the table stand attached so that you can choose to mount your TV either to its table stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t attach the table stand. -
Page 7: Buttons On Tv
Connections and Setup Buttons on TV If you cannot locate your remote, you can use the TV panel buttons on your TV to operate many TV features. Selects channels stored in the channel list or acts as the up/ CH+/- down arrow (▲/▼) through the menu items. -
Page 8: Choose Your Connections
Connections and Setup USB: Allows you to connect a compatible mass storage device. HDMI 1 / DVI IN (High-Definition Multimedia Interface/Digital Visual Interface): Provides an uncompressed digital connection that carries both video and audio data by way of an integrated mini-plug cable. Since HDMI technology is based on Digital Visual Interface (DVI), the jack on the back of your TV is also compatible with DVI components. - Page 9 Connections and Setup HDMI Connection (Best) Set-top box HDMI 2 IN HDMI 2 IN HDMI cable Same connection to HDMI 1/HDMI 3 IN Same connection to HDMI 1/HDMI 3 IN Y / VIDEO (VIDEO) COMPONENT IN (CMPT) Menu operation for input source selection or select the input source directly by pressing INPUT button.
-
Page 10: Mhl Function
Connections and Setup MHL Function (Mobile High-definition Link) You can use the following functions by connecting between the TV HDMI 2 (MHL) port and the USB port of mobile phones etc. with an MHL cable. • Charge with mobile phone from TV •... -
Page 11: Remote Control Functions
Connections and Setup Remote Control Functions INPUT Press INPUT repeatedly to select the video input (Alphanumeric buttons) Enters a channel number, then press OK (or let the entry timeout). INPUT • (dot) To enter a digital channel with a sub-channel, enter the main channel;... -
Page 12: Obtain The Signal
Connections and Setup Obtain the Signal The first step in connecting your TV is obtaining the signal. The back panel of your TV allows you to receive analog and/or digital channels by using the HDMI or ANT/CABLE/SAT connections. To obtain the best quality, use the HDMI connection. -
Page 13: Setup Wizard
Connections and Setup Setup Wizard Perform the following steps before you press on the remote control unit. • Insert the batteries into the remote control unit. • Connect the antenna cable to the TV. • Plug in the AC cord to the AC outlet. The first time you switch the set on, the Setup Wizard opens, which guides you through the setup process. -
Page 14: Chapter 2 - Menu Operation
Chapter 2 Menu Operation Menu Display The following are just illustrations of the menu display. Some menu items may not be displayed depending on the selected input source. Source Picture Picture Mode < Vibrant > Source Source Brightness Contrast Component Saturation Picture Picture... -
Page 15: Using Menu System
Menu Operation Using Menu System display the menu screen. Press▲/▼ to select “Picture”, then press OK/► to display options. This section explores the menus of your TV. Each menu is outlined and detailed to help you get the Picture Mode most from your TV. -
Page 16: Geometry
Menu Operation conditions). “Sound Mode” option automatically changes to “Personal”. Press ▲/▼ to select the desired Note: When “Dynamic Light Sensor” or “Dynamic frequency (100Hz, 300Hz, 1.5KHz, 5KHz, 10KHz) Backlight” is set to “Off”, the power consumption you wish to adjust. Use ◄/► to adjust the level. may exceed the requirements of the ENERGY STAR®... -
Page 17: Setting Menu
Menu Operation the TV plays the default language for the program Show/Hide: You can hide channels in the Channel (usually “English” in the US). List. Then, when you press the CH+ or CH- button, the TV will skip the hidden channels. You can still Note: The “Audio Language”... -
Page 18: Parental Control
Menu Operation Digital CC Option: If available, this allows you themes are blocked only if you block their age- to select a closed caption service mode (1-6) for based rating. You can also block programs that have digital channels. been given an Exempt rating, and programs that are considered unrated. -
Page 19: Time Setting
Menu Operation following content: 3. Press ▲/▼ to select the desired rating, and press OK to block or unblock it. Sexual explicit dialog RRT Setting: Allows you to select the Adult language downloadable rating level. In the event that a new Sexual situations rating system is provided by the broadcaster, the Violence... -
Page 20: Software Info
Menu Operation enter, set the following time items: 5. Press ▲/▼to select the Media Type: Photo or Music. Then press OK to proceed. Year - Press ▲/▼ to select "Year", press ◄/► to 6. Select the connected disk, press OK to enter. set the year. -
Page 21: Chapter 3 Other Information
Chapter 3 Other Information Frequently Asked Questions (FAQs) What’s the quickest way to view High Definition (HD) video? Connect an off-air antenna to the ANT/CABLE/SAT IN to view free local digital channels. You may need to purchase an antenna. Visit www.antennaweb.org for assistance in deciding what type of antenna to use to receive the local digital channels available to you. -
Page 22: Troubleshooting
Other Information Troubleshooting Most problems you encounter with your TV can be corrected by consulting the following troubleshooting list. TV Problems The TV won’t turn on. • Make sure the TV is plugged in. • Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in another device. •... -
Page 23: Other Information
Other Information You can’t select a certain channel. • The channel may be blocked or not approved in the Parental Control Menu. • If using a VCR, check to make sure the TV/VCR button on the VCR is in the correct mode (press the TV/ VCR button on your VCR). -
Page 24: Care And Cleaning
Other Information Care and Cleaning Caution: Turn OFF your TV before cleaning. You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet to help assure adequate ventilation. IMPORTANT: Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. -
Page 25: Limited Warranty
TTE Technology, Inc. (“TTE”) Limited Warranty All LCD/LED Models EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND AS DESCRIBED BELOW TTE EXPRESSLY DISCLAIMS, ALL ACTUAL AND IMPLIED WARRANTIES WITH RESPECT TO ANY PRODUCT USED FOR INSTITUTIONAL OR OTHER COMMERCIAL PURPOSES (INCLUDING BUT NOT LIMITED TO RENTAL PURPOSES). -
Page 26: Product Registration
THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. • NO VERBAL OR WRITTEN INFORMATION GIVEN BY TTE TECHNOLOGY, INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY. -
Page 27: Fcc Information
Figures and illustrations in this User’s Guide are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. TTE Technology, Inc. 555 S. Promenade Ave., Suite 103, Corona, CA 92879 TCL and associated marks are trademarks of TCL S.A.used under license to TTE Corporation.
