Model No.

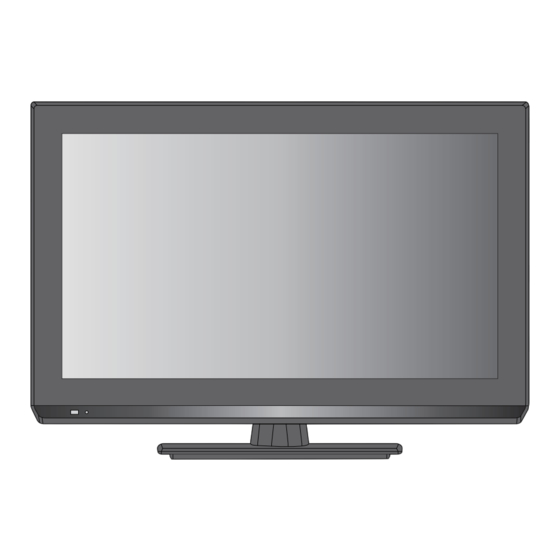

TX-L24C5E
Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
Advertisement
Table of Contents
Related Manuals for Panasonic Viera TX-L24C5E
Summary of Contents for Panasonic Viera TX-L24C5E
-
Page 1: Operating Instructions
Model No. TX-L24C5E Operating Instructions LCD Television Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. -
Page 2: Table Of Contents
Contents SAFETY PRECAUTIONS ....................3 Warning ........................................3 Caution ..........................4 Maintenance ........................4 Display panel, Cabinet, Pedestal ..............................4 Mains plug ......................................4 Notice for DVB functions ....................5 Standard Accessories ...................... 6 Attaching the Pedestal ....................6 Installing Pedestal ....................................7 Uninstalling Pedestal .................................. -
Page 3: Safety Precautions
TV unstable, risking injury. Be sure to ask your local − Do not twist the lead, bend it excessively or stretch it. Panasonic dealer to perform the set up or installation. • − Do not pull on the lead. Hold onto the mains plug body U se approved pedestals / wall-hanging brackets. -
Page 4: Caution
Caution Maintenance When cleaning the TV remove the mains First, remove the mains plug from the socket plug outlet. • C leaning an energised TV may cause electrical shock. Display panel, Cabinet, Pedestal Remove the mains plug from the wall socket when TV is not in use for a prolonged period Regular care : of time... -
Page 5: Notice For Dvb Functions
C heck the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/ Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral... -
Page 6: Standard Accessories
Do not use the pedestal if it becomes warped or physically damaged. • I f you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately. During assembly, use only screws supplied and make sure ... -
Page 7: Installing Pedestal
24 inch 100 x 100 mm Wall-hanging bracket (Optional) Please contact your nearest Panasonic dealer to purchase the 3. Adjusts the pedestal to the bottom of the TV. recommended optional accessories. For additional details, please refer to the manual of the optional accessories. -
Page 8: Part Names And Functions
PART NAMES AND FUNCTIONS TV Controls/ Indicators Remote Control Signal Receiver • D o not place any objects between the TV remote control signal receiver and remote control. Power Indicator Red: Standby Green: On Green blink: Receiving a command from the remote control. -
Page 9: Connections
Connections Computer Connection Cable used for connection (This cable is not supplied with this LCD Note: TV.) When connecting the cable, AC Power Cords of both • P C/VGA Cable (D-SUB 15pin) LCD TV and external equipment should be disconnected •... -
Page 10: Ac Power Cord Connection
AC Power Cord Connection Remote Control Batteries Installation This LCD TV uses nominal input voltages of 220-240V AC. 1. Remove the battery compartment cover. It is designed to work with single-phase power systems. To reduce risk of electrical shock, do not plug into any other type of power system. -
Page 11: Remote Control
Remote Control 7 INPUT (TV) • S witches to TV input source. MUTE • P ress to mute or restore the sound. TEXT • S witches to teletext mode. 10 MENU • O pen or close the On-Screen Menu. 11 R/G/Y/B (COLOUR BUTTON) •... -
Page 12: Turning On/Off Lcd Tv
Turning On/Off LCD TV ASPECT 1. Complete the peripheral connections before turning on Select screen size among “Auto”, “4:3“, “Zoom 1”, LCD TV. “Zoom 2”, “16:9” by pressing ASPECT button on Remote 2. Connect LCD TV’s AC Power Cord into an AC outlet. Control. -
Page 13: Initial Setup
Initial Setup Initial Setup <On-Screen> <Remote / Operation> Initial Setup Welcome to use the Wizard for Initial Setup !! Please press [OK] to start the wizard. Language Setting <On-Screen> <Remote / Operation> Initial Setup Language EXIT Please select your language: Hrvatski Dansk Back... - Page 14 Initial Setup Country Setting <On-Screen> <Remote / Operation> Initial Setup Country EXIT Please select your country: Austria Belgium Back Select Switzerland Next Czech Republic Germany Back Select Next Exit Exit PIN Setting <On-Screen> <Remote / Operation> Initial Setup Please set PIN. “0000” is not a valid PIN New PIN Confirm PIN EXIT...
- Page 15 Initial Setup Tuner Mode Setting <On-Screen> <Remote / Operation> Initial Setup Tuner Mode EXIT Please select your tuner mode: Aerial Cable Back Select Next Back Select Next Exit Exit Note: • W hen selecting Aerial, go to step 9 to start channel scan. •...
- Page 16 Initial Setup Channel Scan <On-Screen> <Remote / Operation> Initial Setup Channel Scan EXIT First, please connect aerial. Start channel scan now ? If you skip this step, the channel scan could be performed in Menu. Back Select Scan Next Skip Scan Back Select Next...
-
Page 17: On-Screen Display
On-Screen Display Colour • I ncreases or decreases the levels of colour according to your Picture personal preference. (0~100) Sharpness Main Menu • I ncreases or decreases the levels of sharpness according to Viewing Mode Normal your personal preference. (0~100) Contrast Brightness Tint... -
Page 18: Sound
DVI Input Settings Surround • C hanges the black level in the image for HDMI input mode • with DVI input signal manually. E nriches (expanding and deepening) the sound quality. • F or HDMI terminal with DVI input signal only. 3:2 Pulldown •... -
Page 19: Timer
Timer Setup Main Menu Main Menu Off Timer Tuning Menu Auto Standby Language 4 hours Display Settings Common Interface HDMI Control System Menu Child Lock Other Settings Select Select Access Access EXIT EXIT RETURN RETURN 1. Press MENU button and 1. -
Page 20: Shipping Condition
Analogue Manual Scan Common Interface • S earches and stores analogue TV channels manually. • • F or TV mode only. U ses include to watch encrypted channels. Note: HDMI Control TV will store scanned channels, even if the scanning for channels have not completed. -
Page 21: Media Player
Media Player Child Lock • L ocks a channel / AV input to prevent access to it. • Media Player W hen the locked channel / input is selected, a message appears; you need to enter the PIN number to watch the restricted content. -
Page 22: Viewing Photos
Music Option List • I n multi- media menu, you can press Blue colour key to Buttons Description select one of following options. • Blue O pens option menu. • Viewing photos • Yellow S elects Photo, Music, or Movie. •... -
Page 23: Troubleshooting
• A dedicated remote control is required for this model. Basically, the remote control of other brands (including Panasonic other models) cannot be used. • No image C heck the connection between the external equipment and LCD TV. -
Page 24: Specifications
SPECIFICATIONS TX-L24C5E Power Source AC 220-240 V, 50Hz Energy efficiency class On mode average 48 W power consumption Annual energy 70 kWh consumption Rated Power 98 W Consumption Standby Power 0.3 W Consumption With Pedestal: 612 mm × 438 mm × 230 mm Dimensions (W ×... -
Page 25: Input Signal Compatibility Chart
Input Signal Compatibility Chart COMPONENT (Y, PB, PR), HDMI Signal name COMPONENT HDMI 525 (480) / 60i, 60p 625 (576) / 50i, 50p 750 (720) / 60p, 50p 1,125 (1,080) / 60i, 50i 1,125 (1,080) / 60p, 50p, 24p Mark : Applicable input signal PC (from D-sub terminal/ HDMI terminal) Signal name Horizontal frequency (kHz) -
Page 26: Multi-Media Supported Specification
Multi-media Supported Specification Photo Image resolution Format File extension Details / Restrictions (pixel) Baseline jpeg: DCF * and EXIF * 4 x 4 to 17,000 x10,000 standards JPEG .jpeg Progressive jpeg: Sub-sampling : 4:4:4, 4:2:2, 4:2:0 4 x 4 to 4,000 x 4,000 * 1 : Design rule for Camera File system - unified standard established by Japan Electronics and Information Technology Industries Association (JEITA) * 2 : Exchangeable Image File - image file format used by digital cameras... -
Page 27: License
LICENSE This product incorporates the following software or technology: (1) the software based in part on the work of the Independent JPEG Group, (2) the software developed by the Free Type Project. Dolby • M anufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. - Page 28 Declaration of Conformity (DoC) Authorised Representative : Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany Customer’s Record The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
