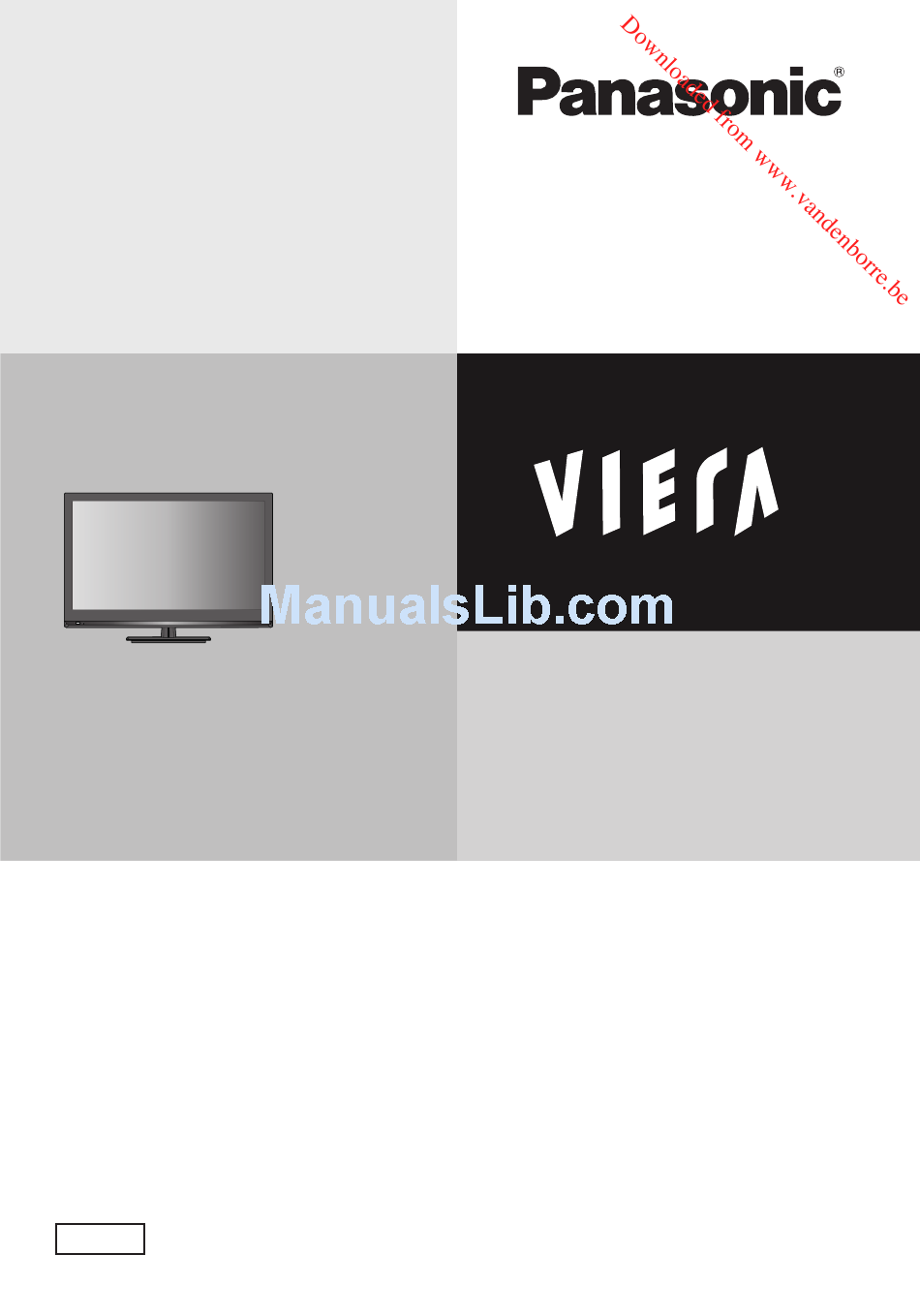

Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for
future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic
dealer for assistance.
English
Model No.
TX-L19XM6E
TX-L24XM6E

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TX-L19XM6E

Summary of Contents for Panasonic TX-L19XM6E

  • Page 1 Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance. English...

  • Page 2: Notice For Dvb Functions

    This TV may not work correctly with CI module that is not approved by the service provider. ● Additional fees may be charged depending on the service provider. ● The compatibility with future services is not guaranteed. ● Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/...

  • Page 3: Table Of Contents

    Contents Transport only in upright position Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and Be Sure to Read we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s Safety Precautions ..........4...

  • Page 4: Be Sure To Read

    Using an unapproved pedestal or other fixtures may open flames away from make the TV unstable, risking injury. Be sure to ask this product at all times your local Panasonic dealer to perform the setup or installation. ● Use approved pedestals (p. 7) /...
  • Page 5 Caution When cleaning the TV, remove the mains plug Do not block the rear air vents ● Cleaning an energised TV may cause electric shock. ● Adequate ventilation is essential to prevent failure of electronic components. Remove the mains plug from the wall socket ●...

  • Page 6: Quick Start Guide

    This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children. Optional accessories Please contact your local Panasonic dealer to purchase the recommended optional accessories. For additional details, please read the manual of the optional accessories. Wall-hanging bracket Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.
  • Page 7 Do not use the pedestal if it becomes warped or physically damaged. ● If you use the pedestal while it is physically damaged, personal injury may result. Contact your local Panasonic dealer immediately. During set-up, make sure that all screws are securely tightened.
  • Page 8 Installing / removing remote's batteries Remove the battery compartment cover. Insert two R6AA batteries (1.5V) according to “+” and “-” polarity markings inside the battery compartment, then close the battery compartment cover. Pull open Close Note the correct Hook polarity (+ or -) Caution ●...

  • Page 9: Identifying Controls

    Identifying Controls Remote Control ● Confirms selections and choices. MEDIA ● Press after selecting channel positions to quickly PLAYER INPUT change channel. ● Displays the Channel List. MENU TEXT STTL GUIDE (p. 17) EXIT ● Easy optional setting for viewing, sound, etc. Coloured buttons (red-green-yellow-blue) ●...
  • Page 10 Indicator / Control panel Remote control signal receiver ● Do not place any objects between the TV remote control signal receiver and remote control. Power indicator Red: Standby Green: On ● The LED blinks when the TV receives a command from the remote control. ●...

  • Page 11: Basic Connection

    Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. Terminals HDMI 1 (ARC) - HDMI 2 (p. 12, 46) AV 2 (COMPONENT / VIDEO) (p.
  • Page 12 AV devices „ Player Player HDMI cable „ DVD Recorder / VCR Terrestrial aerial RF cable Cable RF cable DVD Recorder / VCR SCART cable „ DVD Recorder / VCR and Set top box HDMI cable RF cable Terrestrial aerial SCART cable RF cable Set top box...

  • Page 13: Auto Setup

    Auto Setup Search and store TV channels automatically. ● These steps are not necessary if the setup has been completed by your local dealer. ● Please complete connections (p. 11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup.
  • Page 14 Select [Home] Select [Home] viewing environment to use in your home environment. Please select your viewing environment. Home Shop change confirm „ [Shop] viewing environment (for shop display only) [Shop] viewing environment is the demonstration mode to explain main features of this TV. Select [Home] viewing environment to use in your home environment.

  • Page 15: Basic Features

    Basic Features Watching TV Turn power on INPUT MENU STTL EXIT Select the mode ● The selectable modes vary depending on the stored channels (p. 13). OPTION select TV Selection ASPECT Antenna Cable access ● If [TV Selection] menu is not displayed, press the TV button to switch the mode.
  • Page 16 Other useful functions Display Information banner Display Information banner ● Also appears when changing a channel Example : DVB Coronation Street 20:00 - 20:55 Dolby Digital - 2/0, ST STTL Programme Programme Start / Finish time (DVB) Channel number, etc. (Analogue) Features available / Message meanings 1 - 90 Off Timer remaining time...

  • Page 17: Off Timer

    Display the selectable settings for the current status Check or change the current status instantly ● To change OPTION select change [Multi Audio] (DVB) [Subtitle Language] (DVB) [MPX] (Analogue mode) Selects between alternative language Selects the language in which subtitles Selects multiplex sound mode for sound tracks (if available) should appear (if available)
  • Page 18 Aspect Change the aspect ratio (image size) Enjoy viewing the image at its optimum size and aspect. ASPECT Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 49). „...

  • Page 19: Using Tv Guide

    Using TV Guide TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters). ● This function varies depending on the country you select. (p. 13) ●...

  • Page 20: Viewing Teletext

    Viewing Teletext Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters. What is FLOF (FASTEXT) mode? In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button.
  • Page 21 FULL / TOP / BOTTOM MENU (green) (TOP) (BOTTOM) Normal (FULL) (Expand the TOP half) (Expand the BOTTOM half) View sub page View sub page (Only when Teletext is more than one page) ● The number of sub pages varies depending on the Appears at top of the broadcasters (up to 79 pages).

  • Page 22: Watching External Inputs

    Watching External Inputs Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input. ● To connect the equipment (p. 11, 12, 46, 47) Turn the TV on INPUT When connecting with SCART (p. 12) Receives input signals automatically when playback starts ●...

  • Page 23: How To Use Menu Functions

    (varies according to the input signal) MENU EXIT Select the menu select Main Menu BACK/ RETURN Picture Sound access Setup Select the item ● TX-L19XM6E select Picture Menu Viewing Mode Normal Backlight Contrast Brightness Colour Sharpness Colour Balance Normal P-NR Reset to Defaults Reset „...
  • Page 24 Menu list Menu Item Adjustments / Configurations (alternatives) Selects your favourite picture mode for each input. [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] [Dynamic]: Improves contrast and sharpness for viewing in a bright room. [Normal]: Normal use for viewing in a normal lighting condition. [Cinema]: Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.
  • Page 25 Menu Item Adjustments / Configurations (alternatives) Selects your favourite sound mode. [Music] / [Speech] / [User] ● The selected mode affects all input signals. [Music]: Improves sound quality for watching music videos, etc. [Speech]: Improves sound quality for watching news, drama, etc. ●...
  • Page 26 Menu Item Adjustments / Configurations (alternatives) SPDIF: A standard audio transfer file format Selects the initial setting for digital audio output signal from DIGITAL AUDIO and HDMI 1 (ARC) (ARC function) terminals. [Auto] / [PCM] [Auto]: Dolby Digital Plus, Dolby Digital and HE-AAC multi-channel are output SPDIF Selection as Dolby Digital Bitstream.MPEG is output as PCM.
  • Page 27 TV. [Off] / [On] Power off Link ● A Panasonic DVD Recorder will not turn off if it is still in the Rec mode. ● The TV remains on even if all the HDMI connected equipment are turned off.
  • Page 28 Menu Item Adjustments / Configurations (alternatives) Selects the preferred language for DVB teletext service (depending on the Preferred Teletext broadcaster). Selects teletext language. [West] / [East1] / [East2] [West]: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, Teletext Character etc. [East1]: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
  • Page 29 Menu Item Adjustments / Configurations (alternatives) Selects image resolution of component-connected or HDMI-connected devices. Colour Matrix ● Only for HDMI / YPbPr input source ● Only used with 480p or 576p video signal Selects optional colour system based on video signals in AV mode. [Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC] AV Colour System ●...

  • Page 30: Advanced Features

    Advanced Features Retuning from Setup Menu Automatically retune the channels received in the area. ● This function is available if channel tuning is already performed. ● Only the selected mode is retuned. All the previous tuning settings are erased. ● If [Child Lock] PIN number (p.
  • Page 31 Cable: Automatic Channel Search Searching channels... Analogue : 0 Digital : 0 Scan Advance Scan Mode Frequency (KHz) 306000 Auto Network ID Scan Antenna: Automatic Channel Search Searching channels... Analogue : 1 Digital : 0 Scan When the operation is completed, the channel at the lowest position will be displayed.

  • Page 32: Tuning And Editing Channels

    Tuning and Editing Channels You can retune channels or make your favourite channel lists, skip unwanted channels, etc. Select the mode (p. 15) Display the menu and select [Setup] select MENU Main Menu Picture access Sound Setup Select [Tuning Menu] select Setup Menu Tuning Menu...
  • Page 33 Set Analogue channel manually [Analogue Manual Tuning] Set Analogue channel manually after [Automatic Channel Search]. Example: Antenna Enter the frequency to start scanning Analogue Manual Tuning Searching channels Start Frequency (MHz) 48.00 pqrs wxyz Scan up Scan down Select the scanning method [Scan up]: Scans ascendingly from the entered select frequency to higher frequencies.
  • Page 34 Sort channels [Sort] You can sort channels. To swap the channel position (if available) Swap : selected select select Sort BBC ONE Wales Analogue BBC THREE Analogue BBCi Digital : unselected access access CBBC Channel Digital ● To change page (page up) ●...

  • Page 35: Child Lock

    Child Lock You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch. Display the menu and select [Setup] select MENU Main Menu Picture...

  • Page 36: Using Common Interface

    Although CI module may enable you to view some services, this TV does not guarantee all services (e.g. encrypted pay-TV channels). Please use only the approved CI module by the broadcaster. Consult your local Panasonic dealer or broadcasters for more information and conditions of the services. Side of the TV Caution CI slot ●...

  • Page 37: Shipping Condition

    Shipping Condition Resets the TV to its original condition, i.e. no channels tuned in. All settings are reset (channels, picture, sound settings, etc.). ● To retune TV channels only, e.g. after moving house “Retuning from Setup Menu” (p. 30) Display the menu and select [Setup] select MENU Main Menu...

  • Page 38: Updating The Tv Software

    Updating the TV Software A new version of software may be released for download to enhance the performance or operations of the TV. If there is an update available, a notification message is displayed when the channel has the update information. ●...

  • Page 39: Using Media Player

    Using Media Player [Media player] allows you to enjoy photo, video or music recorded on a USB Flash Memory. Photo mode: Still pictures recorded by digital cameras will be displayed. Movie mode: Moving pictures recorded by digital video cameras will be played back. Music mode: Digital music data will be played back.
  • Page 40 Starting Media Player Insert the USB Flash Memory to the TV (p. 39) Start [Media player] ● You can also start by pressing following button. ● You can also start by pressing following button. MEDIA PLAYER Watching External Inputs” (p. 22) Select the content [Photo] (p.
  • Page 41 Photo mode ● Supported file format (p. 50) The thumbnail of all the photos in the USB Flash Memory will be displayed. Example: Thumbnail - [All photos] Media Player Photo All photos View Info Storage Media EXIT Option Menu Select RETURN Error display Slideshow...

  • Page 42: Photo Settings

    [View Select] - Change from thumbnail view to folder view. Display the view selection (green) Folder view The thumbnail of folders in the USB Flash Memory will be displayed. Select a folder to view its contents select access ● To return to the thumbnail of all photos (green) All photos Photo Settings...
  • Page 43 Movie mode ● Supported file format (p. 50) The thumbnail of video titles in the USB Flash Memory will be displayed. Example: Thumbnail - [Title view] ● To play back the selected title Media Player Movie Title view Select the title Start playback Trip1 Trip2...

  • Page 44: Video Setup

    Video Setup Setup the settings for [Movie] mode. ● Menu items and selectable options vary depending on the content. Display the option menu in the Select [Video Setup Menu] thumbnail view OPTION Option Menu Video Setup Menu Video Setup Menu Repeat access Menu...

  • Page 45: Music Setup

    Music mode ● Supported file format (p. 50) Music folders in the USB Flash Memory will be displayed. Example: [Folder view] ● To play back the selected folder Media Player Music Folder view Select the folder Start playback My Music_1 My Music_2 My Music_3 (red) Access...

  • Page 46: External Equipment

    External Equipment These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the basic connection (p. 11, 12), the table (p. 48), and the specifications (p. 58). To watch satellite broadcasts Fully wired HDMI compliant cable...
  • Page 47 To listen with speakers Optical digital audio cable Amplifier with speaker system To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. Rear and side For the connections, read the manuals of the equipment of the TV and amplifier.
  • Page 48 Types of connectable equipment to each terminal Terminal AV 2 Features To record / playback videocassettes / DVDs (VCR / DVD Recorder) To watch satellite broadcasts (Set top box) To watch DVDs (DVD Player) To watch camcorder images (Video camera) To play games (Game equipment) To use amplifier with speaker system...

  • Page 49: Others

    Others Technical Information Auto Aspect The optimum size and aspect are based on programmes signal format, and you can enjoy finer images. (p. 18) „ Aspect Control Signal The aspect will switch to the appropriate widescreen ratio. Aspect Control Signal Input terminal Input signal format Widescreen signal...
  • Page 50 Dolby Digital cannot be played back. Video Ver. 9 ● This TV supports this container recorded by .mp4 H.264 BP/MP/HP Panasonic products. For .m4v details, read the manual HE-AAC of the products. Dolby Digital Dolby Digital Plus MPEG2 MP@HL –...
  • Page 51 Electrical interference, static electricity, or erroneous operation may damage the data or device. ● Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data. USB connection ●...

  • Page 52: Dvi Connection

    HDMI connection HDMI (high-definition multimedia interface) is the world’s first complete digital consumer AV interface complying with a non-compression standard. HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV and the equipment. HDMl-compatible equipment* with an HDMI or DVI output terminal, such as a DVD player, a set top box or game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
  • Page 53 PC (from HDMI terminal) Signal Name H. Freq. (KHz) V. Freq. (Hz) 640 × 480 @ 60Hz 31.47 59.94 800 × 600 @ 60Hz 37.88 60.32 1,024 × 768 @ 60Hz 48.36 1,280 × 768 @ 60Hz 47.78 59.87 1,280 × 768 @ 60Hz (CVT) 47.40 1,280 ×...

  • Page 54: Faqs

    Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in Analogue mode / Some channels cannot be tuned ●...
  • Page 55 TV to standby mode with Standby On / Off switch, then turn it on appears again. ● Check foreign objects are not inside the USB port. ● Follow the message’s instructions. An error message appears ● If the problem persists, contact your local Panasonic dealer or the authorised service centre.

  • Page 56: Maintenance

    Maintenance First, remove the mains plug from the socket outlet. Display panel, Cabinet, Pedestal Regular care: For stubborn dirt: Gently wipe the surface of the display panel, cabinet, First clean the dust on the surface. Dampen a soft cloth or pedestal by using a soft cloth to clean the dirt or with clean water or diluted neutral detergent (1 part fingerprints.

  • Page 57: Licence

    “Software Licence” menu on this product. At least three (3) years from delivery of this product, Panasonic Corporation will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0 or the...

  • Page 58: Specifications

    Specifications TX-L19XM6E TX-L24XM6E Model No. AC 220-240 V, 50/60 Hz Power source With Pedestal: With Pedestal: 454 mm × 343 mm × 170 mm 567 mm × 406 mm × 170 mm Dimensions (W × H × D) Without Pedestal (TV only): Without Pedestal (TV only): 454 mm ×...
  • Page 59 TX-L19XM6E TX-L24XM6E Model No. SCART (Audio/Video in, Audio/Video out, RGB in) AV 1 input / output VIDEO RCA PIN Type × 1 1.0 V[p-p] (75Ω) AV2 input AUDIO L-R RCA PIN Type × 2 0.5 V[rms] (COMPONENT/ COMPOSITE) Y/VIDEO 1.0 V [p-p] (including synchronisation) PB, PR ±...
  • Page 60 Declaration of Conformity (DoC) Authorized Representative : Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany Customer’s Record The model number and serial number of this product may be found on its rear panel. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
