Service Manual
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by
electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or
products dealt with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These are marked by
Circuit Board Diagrams. Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with
manufacture's specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of manufacturer.
WARNING
IMPORTANT SAFETY NOTICE
ORDER NO. : PCZ1207125AE

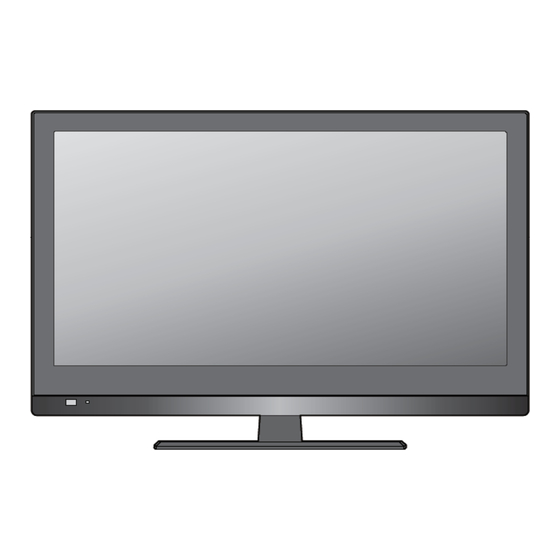

Model No. TX-L24X5B
© Panasonic Corporation 2012.
Unauthorized copying and distribution is a
violation of law.
LCD TV
TX-L24X5E
TX-LR24X5
in the Schematic Diagrams,
Advertisement
Table of Contents
Related Manuals for Panasonic TX-L24X5B
Summary of Contents for Panasonic TX-L24X5B
-
Page 1: Service Manual
ORDER NO. : PCZ1207125AE Service Manual LCD TV Model No. TX-L24X5B TX-L24X5E TX-LR24X5 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by ... -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........... 3 GENERAL GUIDE LINES ........... 3 WARNING..............4 PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES ..............4 ABOUT LEAD FREE SOLDER (PBF)......5 EXPLODED VIEW AND REPLACEMENT PARTS LIST ............... 6 EXPLODED VIEW ............6 REPLACEMENT PARTS LIST........ -
Page 3: Safety Precautions
Safety Precautions General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. -
Page 4: Warning
Warning Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. -
Page 5: About Lead Free Solder (Pbf)
About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available. -
Page 6: Exploded View And Replacement Parts List
Exploded View and Replacement Parts List Exploded View ... -
Page 7: Replacement Parts List
Replacement Parts List Important Safety Notice Components Identified by mark have special characteristics important for safety. * When replacing any of these components, use only manufacturers specified parts. In case of ordering these spare parts, please always add the complete Model-Type number to your order. - Page 8 TX-L24X5B Location Parts Number Description TZZ00000244A BEZEL TZZ00000185A SPEAKER TZZ00000355A IR BOARD L5EDDYY00394 LCD PANEL TZZ00000396A POWER BOARD TZZ00000308A MAIN BOARD TZZ00000447A IO LABEL TZZ00000524A STAND TZZ00000245A REAR COVER TZZ00000516A KEY COVER TZZ00000519A KEY PAD TZZ00000361A KEY BOARD TZZ00000526A BASE...
- Page 9 TX-L24X5E Location Parts Number Description TZZ00000244A BEZEL TZZ00000185A SPEAKER TZZ00000355A IR BOARD L5EDDYY00394 LCD PANEL TZZ00000396A POWER BOARD TZZ00000305A MAIN BOARD TZZ00000448A IO LABEL TZZ00000524A STAND TZZ00000245A REAR COVER TZZ00000516A KEY COVER TZZ00000519A KEY PAD TZZ00000361A KEY BOARD TZZ00000526A BASE TZZ00000007A REMOTE CONTROLLER TZZ00000177A...
- Page 10 TX-LR24X5 Location Parts Number Description TZZ00000244A BEZEL TZZ00000185A SPEAKER TZZ00000355A IR BOARD L5EDDYY00394 LCD PANEL TZZ00000396A POWER BOARD TZZ00000310A MAIN BOARD TZZ00000448A IO LABEL TZZ00000524A STAND TZZ00000245A REAR COVER TZZ00000516A KEY COVER TZZ00000519A KEY PAD TZZ00000361A KEY BOARD TZZ00000526A BASE TZZ00000007A REMOTE CONTROLLER TZZ00000177A...
